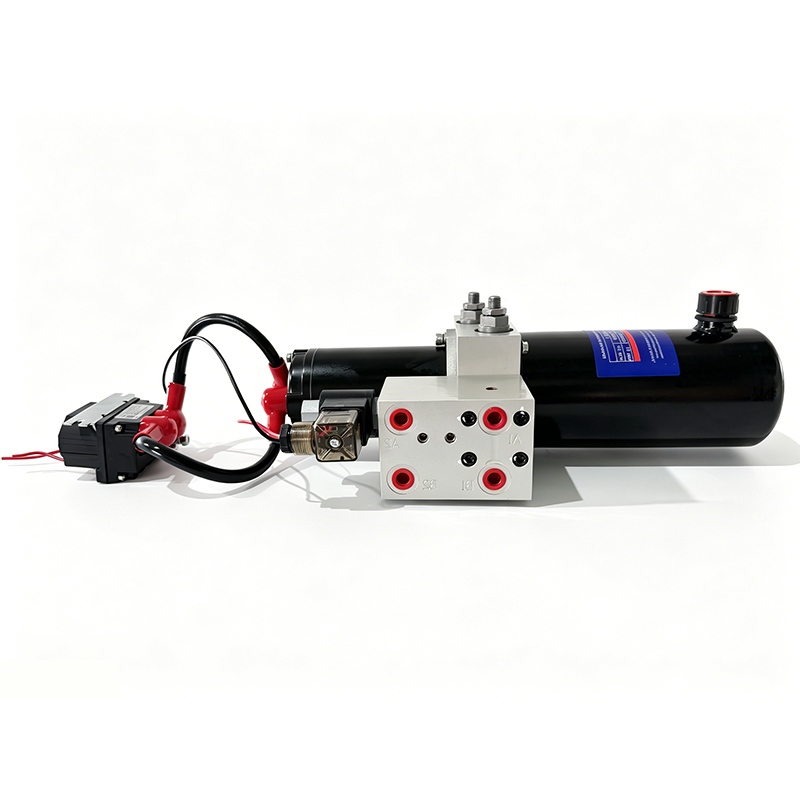

12V DC Hydraulic Power Unit Single Acting

Product Introduction

This 12V DC single acting hydraulic power unit is designed specifically for small car lifting equipment. It is equipped with a 0.5KW DC motor, a 0.5CC gear pump, a 1.5L standard oil storage tank, a rated pressure of 16MPa, and a compact and integrated structure. It is easy to install and widely suitable for truck tailboards, small lifting platforms, dump trailers, and small environmental sanitation lifting equipment. The whole machine adopts aluminum alloy valve blocks and thickened painted oil tanks, which are corrosion-resistant and leak proof. It is equipped with a 12V electromagnetic relay control, one click start stop lifting, stable and durable.

Core Technical Parameters

Working voltage: DC12V

Motor power:0.5KW

Pump displacement:0.5CC

Fuel tank capacity:1.5L

Rated working pressure: 16MPa

Working form: single action (lifting and pressurization, self weight falling back)

Control method: External electromagnetic relay lead control

Valve body material: precision aluminum alloy valve block

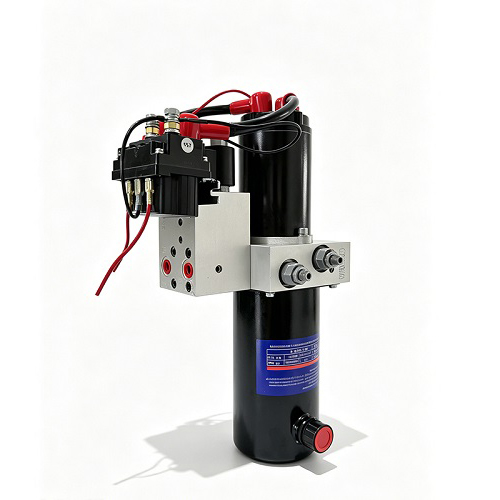

Overall appearance: Integrated vertical compact structure, saving installation space

Product Advantages

1.Integrated structure: The motor, oil pump, valve block, and oil tank are formed in an integrated manner, with fewer pipelines, low risk of leakage, and time-saving and labor-saving installation;

2.DC car specific:12Vcar voltage, direct power supply for trucks, construction vehicles, and agricultural machinery, without the need for external AC power;

3.Stable high voltage output: maximum oil pressure of 16MPa, sufficient lifting force, smooth lifting without shaking;

4.Durable anti-corrosion process: Black high-temperature baking paint for fuel tank, hard oxidation treatment for valve block, resistant to rust and oil leakage in harsh outdoor and car environments;

5.Simple electronic control design: equipped with a 12V high-power relay, two control wires for remote control of lifting, simple wiring, and quick assembly for beginners;

6.Compact and space saving: The vertical cylindrical fuel tank design is compact in size and can be installed in small spaces such as truck chassis and small equipment.

Applicable Scenarios

Truck loading and unloading tailboard, light dump trailer lifting system

Small lifting platform, fixed micro lift

Small tipping bucket for sanitation vehicles and auxiliary hydraulic device for electric forklifts

Hydraulic execution units for agricultural machinery, RVs, and small construction machinery

Installation Instructions

Hydraulic oil filling: Add 46# anti-wear hydraulic oil from the red oil port at the bottom, with the oil amount not exceeding the upper limit of the tank scale;

Circuit wiring: The thick red black main line is connected to the positive and negative poles of the vehicle's 12V battery, and two thin control lines are connected to the lifting switch;

Oil connection: The threaded interfaces on both sides of the valve block are connected to the oil pipe of the oil cylinder, and tightened to prevent leakage;

Exhaust debugging: When using it for the first time with no load lifting 3-5 times, exhaust the air in the oil circuit and lift it more smoothly.

After sales guarantee

The whole machine undergoes full oil pressure testing before leaving the factory, and the motor and oil pump are guaranteed for 12 months; Support customized voltage （24V）, double acting valve block, different volume fuel tanks, factory direct supply, can be wholesale in bulk, with high quantity and competitive price.
