220V/380V AC multi-channel hydraulic power unit

1、 Product Overview

This AC motor hydraulic power unit is a fixed small hydraulic pump station, which adopts a horizontal integrated compact structure and is composed of AC three-phase/single-phase motors, high-pressure gear pumps, integrated oil circuit valve blocks, and white engineering plastic oil tanks. It is suitable for 220V/380V industrial power supply and is widely used for fixed equipment lifting, hoisting, and clamping conditions. It is widely matched with equipment such as boarding bridges, lifting columns, tire treaders, small lifting platforms, and automatic chemical equipment.

2、 Core component analysis

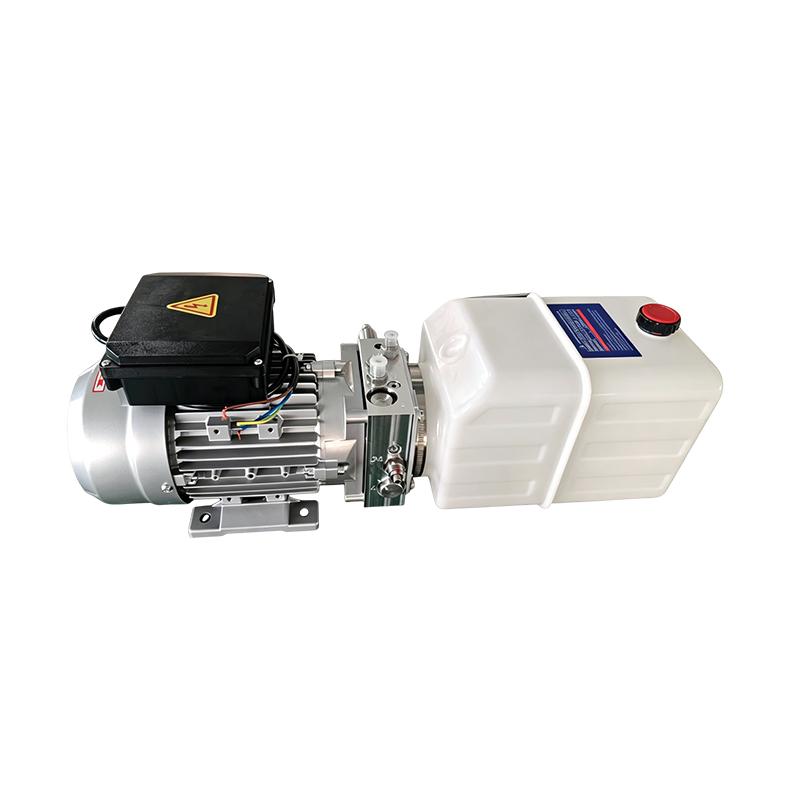

Communication silent motor

Standard 220V single-phase/380V three-phase aluminum shell asynchronous motor, with integrated heat dissipation fins, low operating noise, and low continuous working temperature rise; Black insulated junction box with warning label, protection level IP54, dust-proof and splash proof, capable of long-term continuous operation, stable power output, suitable for factory fixed power supply scenarios.

High pressure gear oil pump and integrated valve block

High precision aluminum alloy gear pump, high volumetric efficiency, rated working pressure up to 16MPa; The valve block integrates overflow pressure regulating valve, one-way valve, and electromagnetic directional installation interface, with reserved standard hydraulic oil port. It can be matched with single/dual electromagnetic directional valve to achieve the functions of oil cylinder rising, falling, pressure holding, and pressure relief. It is equipped with overload pressure relief protection to prevent system overpressure from damaging pipelines and oil cylinders.

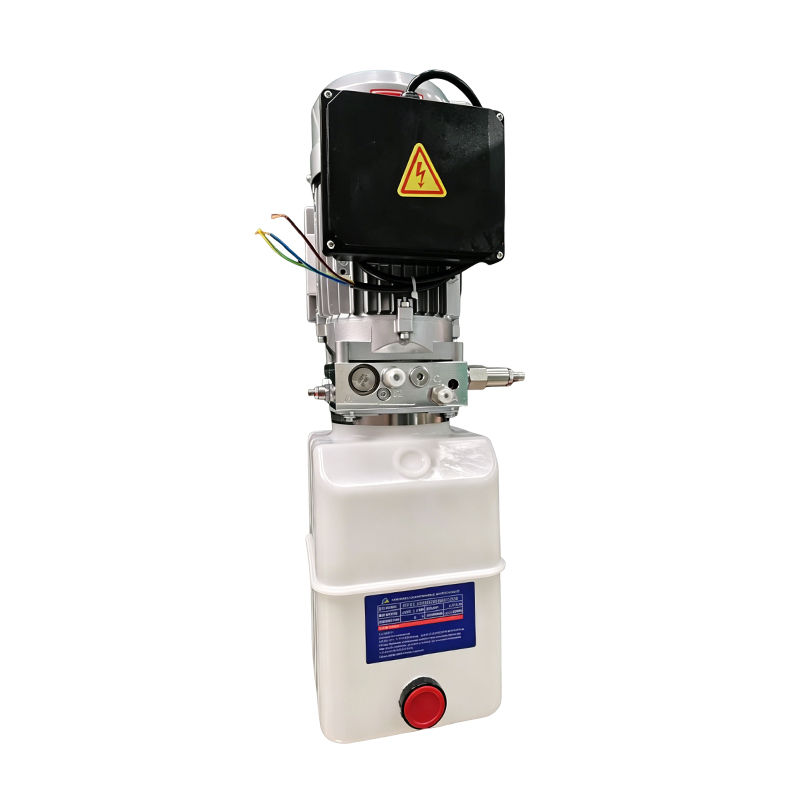

Corrosion resistant plastic fuel tank

Thickened PE integrated blow molded white fuel tank, lightweight, rust free, corrosion-resistant, and has no hidden dangers of rust and oil leakage compared to metal fuel tanks; The top is equipped with a red threaded breathable oil cap, which is convenient for adding hydraulic oil. The box comes with an oil level scale line, allowing for intuitive viewing of the liquid level; Lightweight design reduces the overall weight of the machine, making installation and handling more effortless.

Integrated base assembly

The motor, pump, and fuel tank share a metal mounting base, which is sturdy in structure and has good shock absorption effect. It can be directly bolted to the equipment rack for simple assembly and reduces on-site assembly processes.

3、 Core advantages of the product

✅  Industrial AC power supply, continuous and stable operation

Adapt to factory 220V/380V mains power, support long-term uninterrupted start stop, distinguish from DC vehicle mounted pump stations, suitable for indoor fixed equipment 24-hour intermittent operation.

✅  Plastic fuel tanks are rust free and have low maintenance costs

PE material does not rust, eliminating the problem of metal fuel tanks rusting and blocking oil circuits after long-term use. It has a light weight and is easy to transport and install.

✅  Integrated valve block significantly reduces oil leakage points

The oil circuit is designed with built-in integration, eliminating a large number of external copper pipes and reducing the risk of leakage. The valve group can be equipped with electromagnetic reversing and manual lowering functions as needed.

✅  Aluminum shell motor has excellent heat dissipation and long durability life

The all aluminum motor casing has fast heat dissipation and is not easy to burn out the coil under high temperature conditions. The dust-proof and waterproof junction box is suitable for the dusty environment in the workshop.

✅  Flexible non-standard customization

Support optional power of 0.75/1.1/1.5/2.2kW, customized fuel tank capacity of 3L/5L/8L, single/dual solenoid valve group, manual emergency descent, and customized pressure regulation range.

4、 Typical application scenarios

Logistics and warehousing: fixed boarding bridge, unloading lifting platform, warehousing lifting column

Auto repair equipment: tire scraping machine, small lift, auto repair hydraulic fixture

Automation equipment: assembly line lifting fixture, small hydraulic press fitting machine, material lifting platform

Venue facilities: basketball hoop lifting, stage small hydraulic lifting mechanism

Small non-standard hydraulic equipment: small bending fixtures, material clamping hydraulic systems

5、 Standard technical parameters

Supply voltage: AC220V single-phase/AC380V three-phase

Motor power: 0.75kW/1.1kW/1.5kW/2.2kW (optional)

Rated working pressure: 8-16MPa (factory adjustable)

Fuel tank material: PE engineering plastic

Fuel tank capacity: 3L, 5L, 8L optional

Control mode: Electromagnetic electronic control/manual pressure relief optional

Applicable medium: 46 # anti-wear hydraulic oil

Installation method: Horizontal base fixed installation

6、 Instructions for Use and Maintenance

Add 46 # anti-wear hydraulic oil to the standard range of the oil tank scale, and tighten the breathable oil cap;

Connect the hydraulic oil pipe to the inlet and outlet of the valve block, tighten the joint to prevent leakage;

Distinguish single-phase/three-phase power supply for motor wiring, strictly follow the markings for wiring, and ensure proper grounding protection;

Power on test the lifting action, adjust the system working pressure through the overflow valve, and prohibit overpressure use;

Check the cleanliness of the hydraulic oil every 300 hours, and replace the hydraulic oil and filter element in a timely manner if turbidity or impurities appear.

7、 After sales guarantee

Manufacturer's spot delivery, supporting customized non-standard parameters, providing wiring drawings, installation and debugging technical guidance; The whole machine has a 12-month warranty, and the vulnerable parts of the motor, pump body, and valve block are supplied for a long time. Remote technical troubleshooting and bulk procurement can provide a complete solution for matching hydraulic cylinders and oil pipes.
