Automotive lift power unit

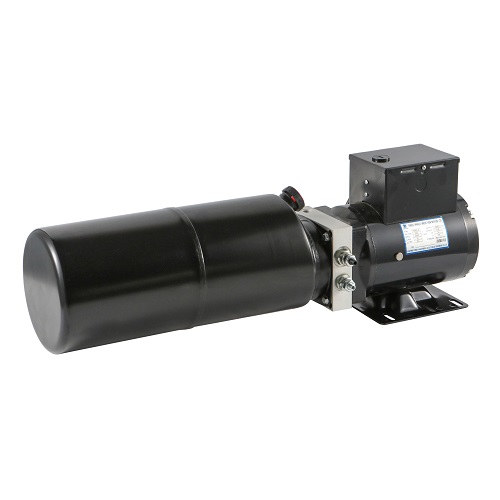

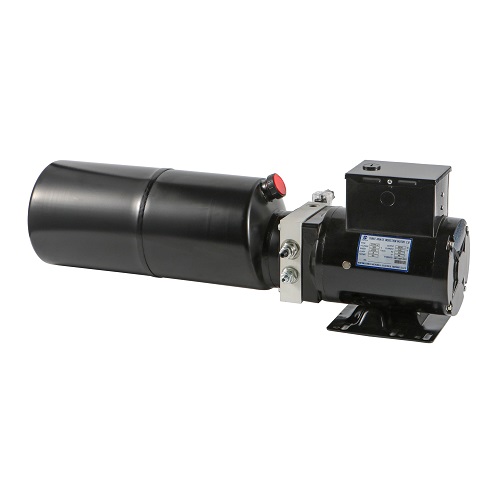

This horizontal DC hydraulic power unit is a high-performance hydraulic power source specifically designed for compact installation scenarios. It adopts a horizontal integrated structure, highly integrating core components such as DC motors, hydraulic pumps, metal oil tanks, and control valve groups. With its compact structure, strong power, and stable operation, it perfectly meets the power requirements of various small hydraulic equipment. It is an ideal power solution for scenarios such as vehicle lifting, lifting platforms, and special operation equipment.

II. Core Structure and Technical Features

1. Horizontal compact integrated design

Adopting a horizontal layout and an integrated steel fuel tank structure, it significantly reduces the installation height and can flexibly adapt to narrow installation spaces such as the bottom and sides of equipment, without occupying vertical space, providing strong adaptability.

The fuel tank is made of high-strength carbon steel, with its surface undergoing professional anti-rust and anti-corrosion treatment. It is impact-resistant and wear-resistant, allowing for long-term use in complex working conditions such as damp and dusty environments. Additionally, it boasts excellent sealing performance, eliminating the risk of hydraulic oil leakage.

The top of the oil tank is equipped with a red knob-type breather cap, which facilitates the filling of hydraulic oil, level inspection, and routine maintenance. At the same time, it effectively prevents impurities from entering the hydraulic system, ensuring the cleanliness of the oil.

2. Efficient and stable power system

Equipped with a high-power DC motor, it supports multiple DC voltage specifications such as 12V/24V/48V (customizable), with fast start-up response and strong power output. It can operate stably without AC power, perfectly fitting scenarios without mains power, such as vehicle-mounted and outdoor operations.

Equipped with a high-precision hydraulic gear pump, it boasts high volumetric efficiency and stable pressure output, providing continuous and reliable high-pressure hydraulic power to meet the power demands of equipment lifting, lowering, clamping, and other actions. It operates with low noise and has a long service life.

The motor is equipped with a standardized junction box and a parameter nameplate, ensuring convenient wiring and clear parameters, which facilitates quick installation, debugging, and subsequent maintenance for customers.

3. Precise and reliable control components

Integrating precision control valves such as solenoid valves and relief valves, it can precisely control the flow direction, pressure, and flow rate of hydraulic oil, enabling equipment actions such as lifting, lowering, and pressure maintaining. With fast response speed and high control accuracy, it ensures the safety and stability of equipment operation.

The valve assembly adopts a modular design, supports functional customization, and can adjust the valve configuration according to customer's working conditions and requirements, adapting to the control requirements of different hydraulic systems and exhibiting strong scalability.

4. High durability and easy maintainability

The core components are processed using high-quality alloy steel, and the motor features a high-temperature resistant winding design, capable of withstanding prolonged continuous operation and preventing damage from overheating, thereby significantly extending the product's service life.

The horizontal mounting base is made of thick steel plates and integrally formed, featuring standardized mounting holes, secure fixation, and strong shock resistance, making it suitable for vibration conditions such as vehicle mounting. The fully modularized structural design facilitates daily maintenance, oil and fluid replacement, and component replacement, reducing maintenance costs.

III. Core Product Advantages

✅ Horizontal layout, flexible installation: Designed specifically for narrow spaces, it does not occupy vertical space and can be flexibly installed at the bottom, side, or other positions of equipment, adapting to various equipment layout requirements.

✅ DC power supply, wide range of scenarios: Supports multiple specifications of DC voltage, no need for AC power supply, perfectly compatible with car-mounted, mobile devices, outdoor work, and other scenarios.

✅ Strong power and stable performance: The combination of an efficient motor and precise pump valves ensures stable pressure output and precise motion control, safeguarding equipment operation safety and reducing the risk of malfunctions.

✅ Durable and easy to maintain: The all-metal structure, coupled with professional rust-proof treatment, provides resistance to corrosion and impact. The modular design significantly reduces maintenance difficulty and cost.

IV. Typical application scenarios

Vehicle-mounted operation equipment: vehicle-mounted lifting platforms, car tailboards, recovery trucks, dump trucks, environmental sanitation garbage trucks, etc

Lifting equipment: scissor lift platforms, fixed cargo lifts, car lifts, boarding bridges, etc

Industrial automation equipment: hydraulic fixtures, small hydraulic machine tools, automated production lines, warehousing and logistics equipment, etc

Special construction machinery: electric forklifts, aerial work platforms, specially modified vehicles, small construction machinery, etc

V. Customized Services

Based on customers' specific operational requirements, we can offer personalized services throughout the entire process, including customization of voltage (12V/24V/48V, etc.), fuel tank capacity, valve group functionality, pressure parameters, and installation structure. We provide exclusive hydraulic power solutions for various equipment. Welcome to inquire about customization.
