Boarding axle power unit

Product Introduction

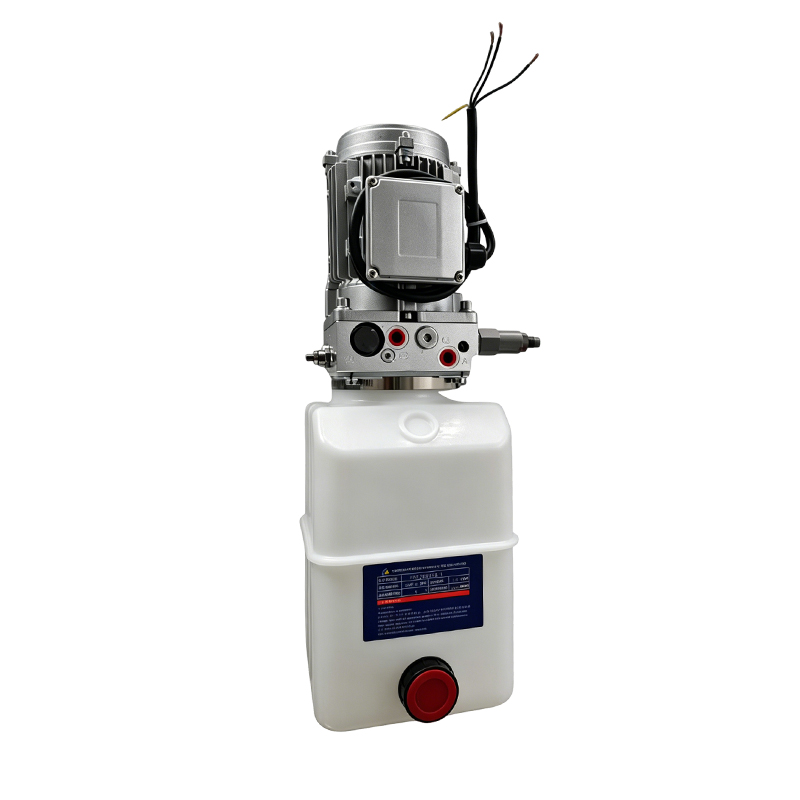

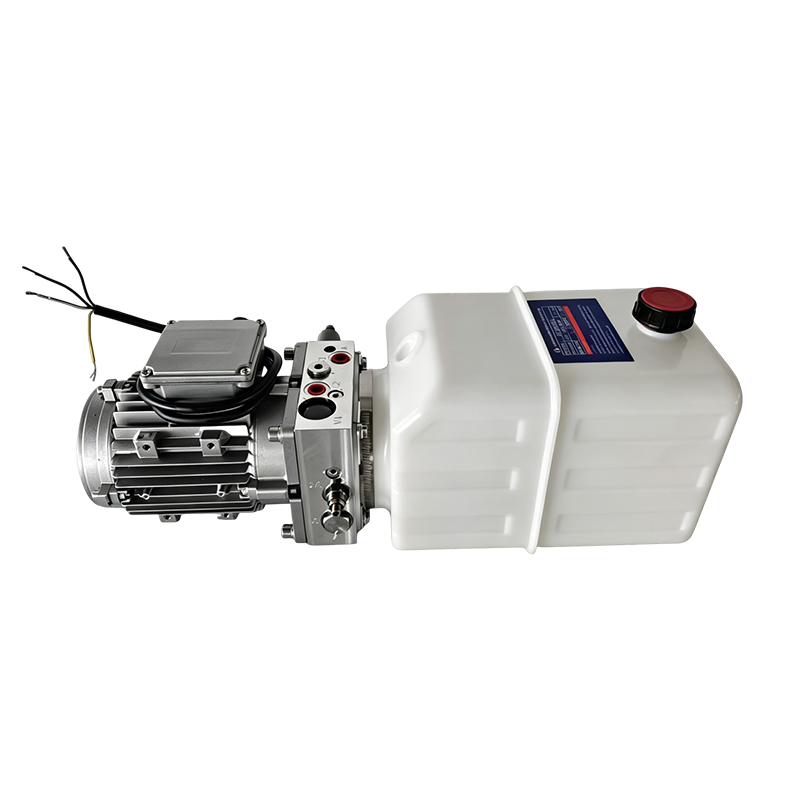

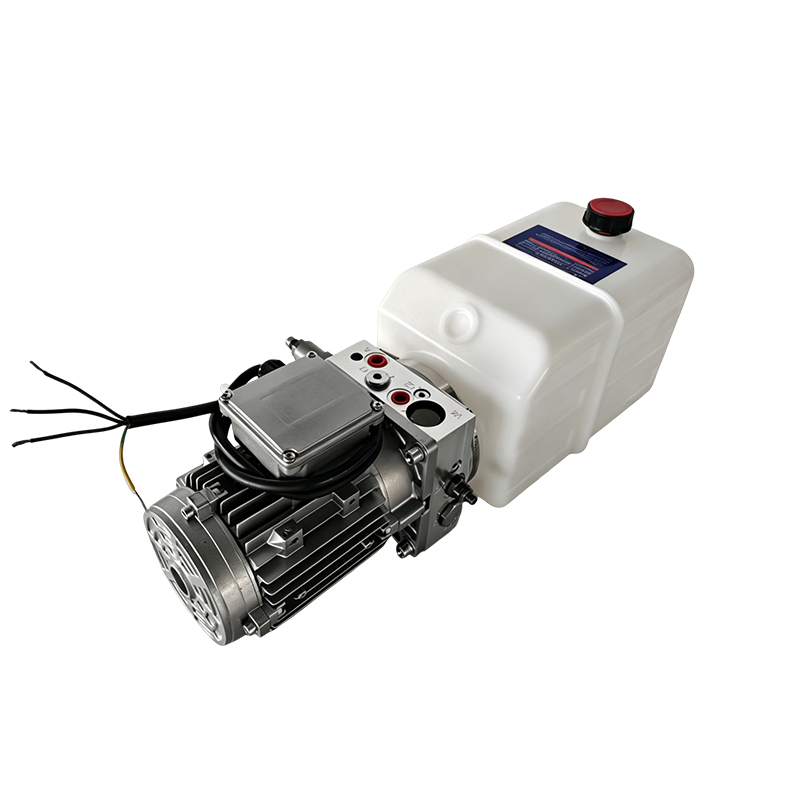

This horizontal AC hydraulic pump station is equipped with a large capacity white plastic oil tank, using an industrial grade single-phase asynchronous motor and a single oil circuit integrated valve block design. It supports 220V civilian AC power supply and has a simple and compact structure. It is a standard hydraulic power complete set device for small boarding bridges, household elevators, and fixed lifting equipment.

core strengths

Industrial AC motor, stable operation

All aluminum shell heat dissipation motor, integrated with heat dissipation ribs, continuously operates with low temperature rise and stable power output; The protective junction box isolates dust and water vapor, and can be used for a long time both indoors and outdoors, making it less prone to burning.

Food grade plastic fuel tank, lightweight and corrosion-resistant

One piece PE white oil storage tank, lightweight, rust resistant, and resistant to hydraulic oil corrosion; The layered reinforced structure is resistant to deformation, and the red sealed oil cap is easy to disassemble and assemble. The visible oil level facilitates daily inspections, and cleaning and maintenance are simple.

Single oil circuit integrated valve block, low leakage

Precision machining of integrated aluminum alloy valve block, smooth oil passage, clear layout of inlet and outlet, reducing external pipelines; Single acting lifting control, stable pressure relief without impact, sealing components resistant to high pressure and aging, and minimal oil leakage during long-term use.

Horizontal compact layout, flexible installation

The horizontal structure occupies less vertical space and is suitable for various installation methods such as bottom and side hanging of equipment; The whole machine is assembled at the factory and only needs to be wired and connected to the oil cylinder to be put into production, suitable for batch matching of small equipment.

Applicable scenarios

Widely used in 220V mains power conditions: small storage gantry cranes, household simple lift cargo elevators, fixed scissor lift platforms, small lift workbenches, garage lift equipment, small packaging press fit fixtures, etc; The fuel tank capacity and output pressure can be customized as needed, and support the installation of pressure gauges and manual pressure relief valves.
