Horizontal dual channel electromagnetic DC hydraulic power unit

1、 Product Overview

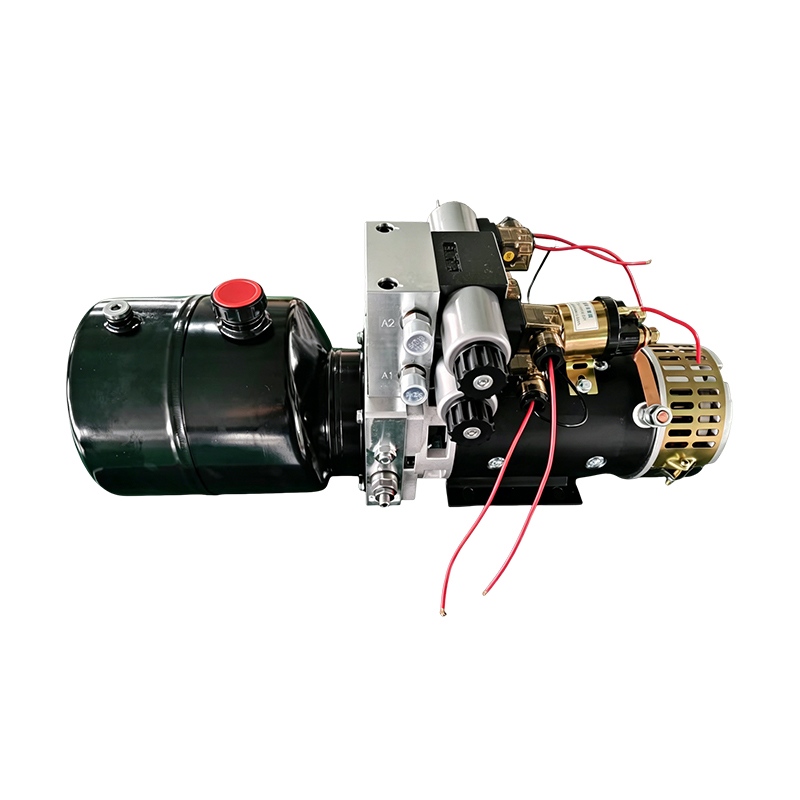

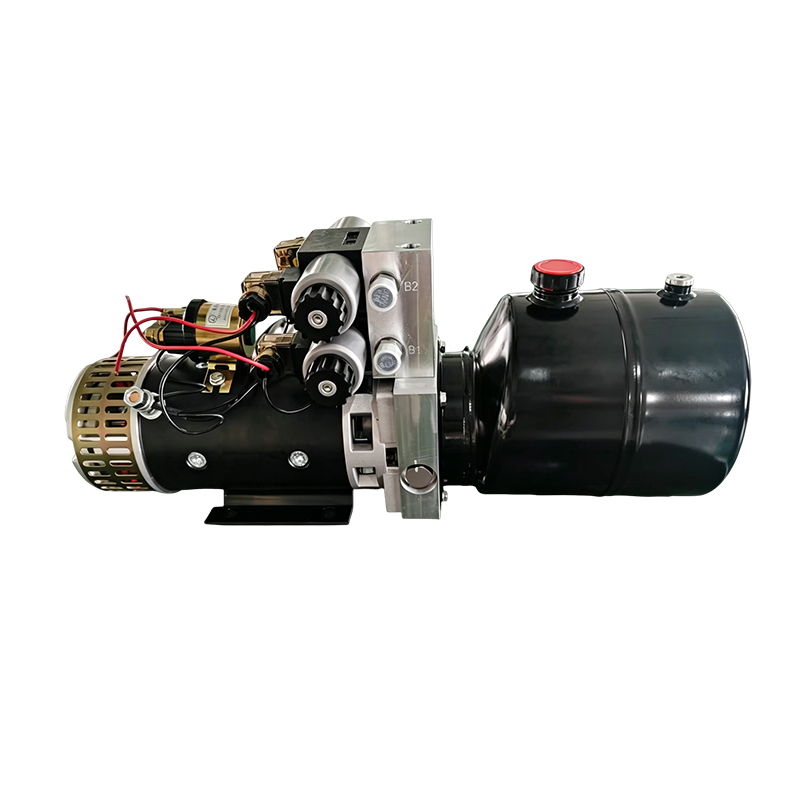

This horizontal dual oil circuit DC hydraulic power station adopts a horizontally integrated compact structure, equipped with a circular steel oil tank, dual independent electromagnetic reversing valve group, and a DC motor with a heat dissipation fan cover. It is compatible with DC12V/24V on-board DC power supply and can independently control the lifting of two sets of hydraulic cylinders. It is commonly used in on-board hydraulic systems such as flying wing trucks, car tailboards, RV double legs, and small mobile double cylinder lifting equipment.

2、 Core component analysis

Horizontal circular thickened steel fuel tank

One piece welded cold-rolled steel plate cylindrical fuel tank, black anti-corrosion paint, resistant to pressure and vehicle bumps and impacts, not easy to crack or leak; The front red explosion-proof breathable oil cap balances the pressure of the oil tank and facilitates the filling of hydraulic oil; The circular horizontal layout occupies less space horizontally and is suitable for narrow installation positions on truck chassis.

High power DC cooling motor

The black DC permanent magnet motor is equipped with a hollowed out golden heat dissipation fan cover at the rear, which has high heat dissipation efficiency and is not easily overheated during long-term lifting operations; Equipped with metal electromagnetic starting relay, sufficient starting torque, stable starting in low temperature and bumpy car environment, the whole machine is sealed and dustproof, suitable for outdoor dusty working conditions.

Dual independent electromagnetic directional integrated valve block

The valve block is equipped with two sets of independent electromagnetic directional valves, and the two oil ports do not interfere with each other, which can respectively drive two oil cylinders to complete rising, falling, and pressure maintenance; The valve block is equipped with a total overflow pressure regulating valve, which automatically releases pressure when overloaded, protecting the oil cylinder and high-pressure pipeline; The valve is equipped with flow control knobs at both ends, which can independently control the lifting speed of the oil cylinder. The exposed wiring terminals are convenient for docking with the onboard controller.

High pressure aluminum alloy gear pump

High precision wear-resistant gear pump, high volumetric efficiency, rated working pressure up to 16MPa, dual oil synchronous output pressure attenuation is small, anti internal leakage, continuous lifting load oil pressure stability, meeting the requirements of dual oil cylinder synchronous lifting.

Integrated metal mounting base

The motor, pump, valve block, and fuel tank share a metal support base, which provides good shock absorption for the entire machine. It can be directly bolted to the frame, and the assembly process is simple.

3、 Core advantages of the product

✅  Dual independent control reduces overall equipment costs

A single pump station can simultaneously drive two sets of hydraulic actuators, eliminating the need for two sets of power units, greatly saving installation space on vehicles, and adapting to dual cylinder working conditions such as double-sided wings and double legs.

✅  Equipped with independent flow regulation and controllable lifting speed

Both valves are equipped with speed control knobs, which can adjust the lifting speed of the two oil cylinders separately, adapting to the synchronous or asynchronous action requirements of different loads.

✅  Circular steel fuel tank is sturdy and resistant to bumps

Thickened steel plates are resistant to impact and long-term vehicle vibration, with no plastic fuel tank aging, cracking, rust, or oil blockage defects. They have stronger adaptability to harsh vehicle environments.

✅  Tail heat dissipation hood, continuous heavy load without high temperature

The hollow heat dissipation structure quickly dissipates the working heat of the motor, and lifting heavy loads for a long time is not easy to burn out the coil, extending the service life of the whole machine.

✅  DC car power supply, suitable for all types of mobile devices

Supports 12V/24V vehicle battery power supply, without the need for external industrial power supply, suitable for various types of trucks, recreational vehicles, and small mobile lifting equipment.

✅  Flexible non-standard customization

Support DC12V/24V voltage, 3L/4L/5L fuel tank capacity, extended control line, and customized installation of manual emergency descent valve.

4、 Typical application scenarios

Logistics box trucks: double-sided wing box trucks, light truck tailboards, small double compartment dump trucks

RV: Bilateral hydraulic leveling support legs, RV small lifting platform

Small mobile devices: dual column mobile lifting frame, vehicle mounted dual station hydraulic fixture

Light special vehicles: small clearing vehicles with dual auxiliary lifting oil cylinders, micro environmental sanitation self dumping equipment

Small agricultural machinery: agricultural double pivot lifting equipment

5、 Standard technical parameters

Working voltage: DC12V/DC24V

Motor power: 1.6kW/2.2kW/2.5kW optional

Oil channel: 2-channel independent electromagnetic control, single channel flow adjustable

Rated working pressure: 8-16MPa (adjustable for the entire machine)

Fuel tank material: Cold rolled steel plate anti-corrosion paint

Fuel tank capacity: 3L, 4L, 5L optional

Control mode: external electric control handle/wireless remote control, optional manual emergency pressure relief

Applicable medium: 46 # anti-wear hydraulic oil

Installation form: Horizontal base fixed with bolts

6、 Usage and maintenance instructions

Add 46 # anti-wear hydraulic oil to the standard oil level mark of the oil tank, and tighten the red breathable oil cap;

Two hydraulic oil pipes are respectively connected to the corresponding oil cylinders, and the joints are fully tightened to resist vehicle vibration and leakage;

Strictly distinguish the positive and negative wiring of the battery, and correspond the electromagnetic valve and relay circuits to the onboard control handle;

No load test run, adjust the overflow valve to set the system pressure, and then fine tune the two speed control knobs to match the lifting speed. It is forbidden to operate for a long time beyond the rated pressure;

Check the cleanliness of hydraulic oil every 200 hours, and regularly clean the dust and oil stains on the surface of motors and solenoid valves for outdoor vehicle mounted equipment.

7、 After sales guarantee

Factory stock supply, supporting non-standard customization of voltage, fuel tank capacity, and valve number, providing on-board wiring drawings and chassis installation and commissioning guidance; The whole machine has a 12-month warranty, and the motor, pump body, dual solenoid valve, and relay accessories are long-term matched. Remote technical troubleshooting is available, and a complete set of on-board hydraulic solutions including hydraulic cylinders and high-pressure oil pipes can be purchased in bulk.
