Multi circuit brushless hydraulic power unit

1、 Product Overview

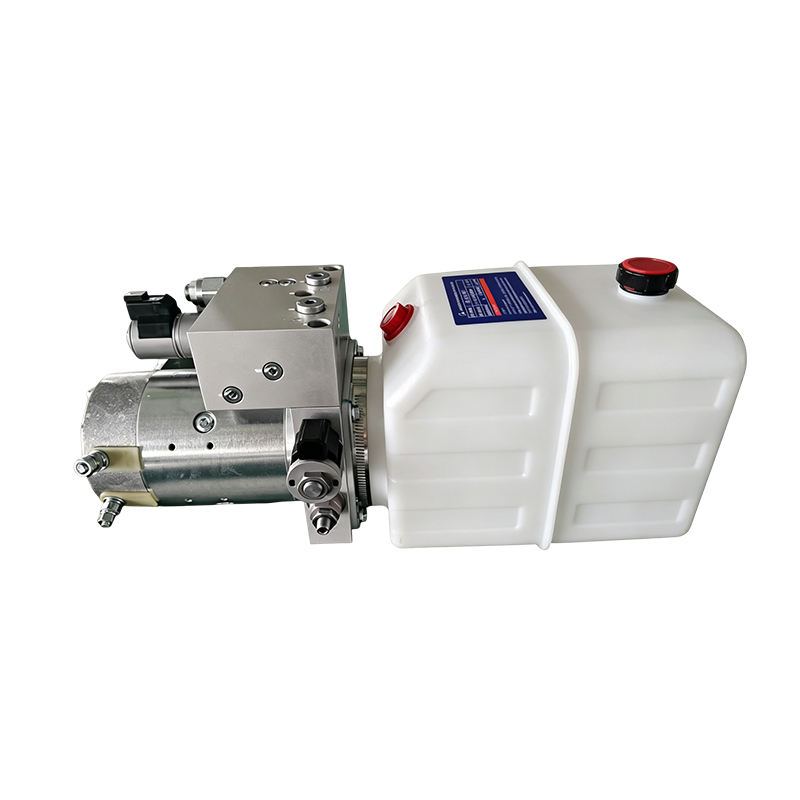

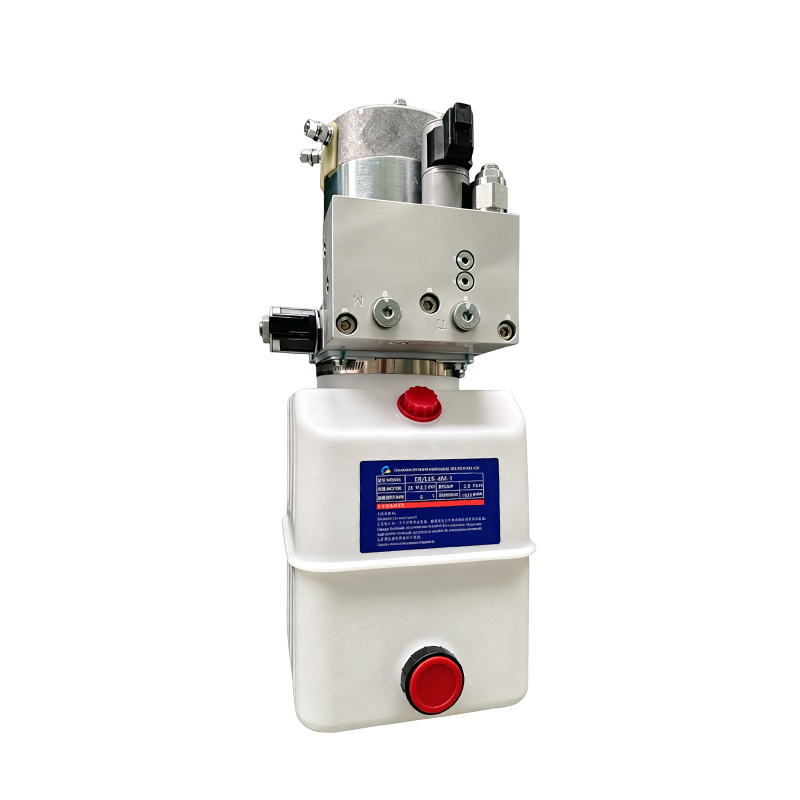

This complete hydraulic power unit is equipped with a large capacity PE white plastic oil storage tank, an integrated aluminum alloy valve block, and an efficient brushless DC motor. It supports 12V/24V on-board DC power supply and integrates electromagnetic reversing control oil circuit. The whole machine is pre installed and can be put into use by connecting the power supply and oil cylinder. It is specially designed for RV leveling legs, small lifting platforms, environmental sanitation equipment, new energy modified vehicles, and lightweight lifting equipment for storage.

2、 Core product advantages

1. Brushless DC motor, long-lasting silent and durable

Adopting all aluminum shell brushless drive motor, widening heat dissipation structure, and low temperature rise during long-term continuous operation; No carbon brush wear, operates with low noise and vibration, has a service life more than three times that of traditional brushed motors, stable heavy-duty lifting power, is not easy to burn, and is suitable for all-weather vehicle operating conditions.

2. Thickened PE plastic fuel tank, lightweight and corrosion-resistant

The integrated food grade PE oil storage tank has a much lighter weight than steel fuel tanks, and the weight reduction effect of vehicle modification is significant; Resistant to hydraulic oil, acid and alkali corrosion, not easy to rust and crack, and the reinforced structure of the box body is resistant to deformation; The top sealed oil cap makes it easy to add and replace hydraulic oil, and the visual box makes it easy to check the remaining oil level.

3. Integrated aluminum alloy multi way valve block, stable operation without oil leakage

CNC precision machining of aluminum alloy integrated valve group, with built-in electromagnetic reversing oil circuit, can achieve precise control of oil cylinder rise and fall; High precision grinding of valve holes, combined with high-pressure resistant fluororubber sealing components, ensures minimal oil leakage during vehicle bumps and long-term heavy loads; Reserve standard hydraulic oil ports and expand the adaptability of multi way oil cylinders.

4. Integrated complete assembly, easy to install and modify

The integrated assembly of the motor, oil pump, valve block, and oil tank has been completed, and the factory debugging has been completed; The main line is directly led out and can be paired with various control methods such as wired controllers, wireless remote controllers, and foot switches; Horizontal compact layout, occupying small installation space, suitable for RV chassis, equipment racks, and narrow cabins, easy to disassemble and maintain.

5. DC wide voltage adaptation, universal for car use

Supports direct power supply from 12V/24V vehicle batteries without the need for an external AC power source, suitable for various fuel powered and electric vehicle modifications; Oil pressure, flow rate, and tank capacity can be adjusted as needed to meet the lifting needs of small oil cylinders of different tonnages.

3、 Applicable scenarios

Horizontal leveling four leg hydraulic system for RVs and recreational vehicles;

Small electric scissor lift platform, lightweight material lifting equipment for storage;

Micro self dumping and small-scale garbage lifting mechanisms for environmental sanitation;

Truck tailboard, lightweight dump truck, and hydraulic modification of agricultural machinery;

Power source for automated small tooling and lightweight compression equipment.
