Single acting electromagnetic brushless hydraulic power unit

Product Overview

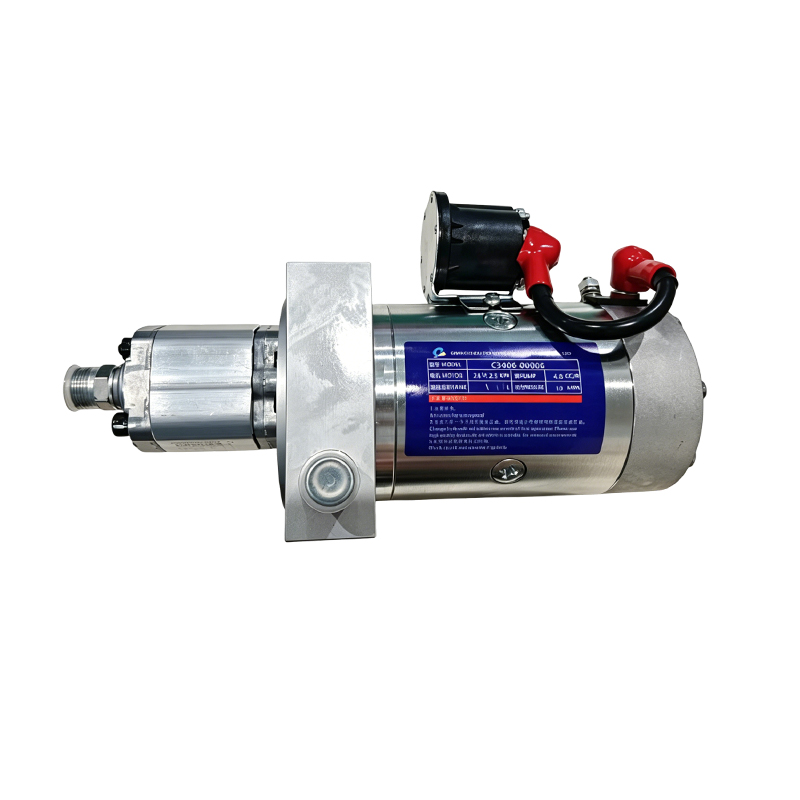

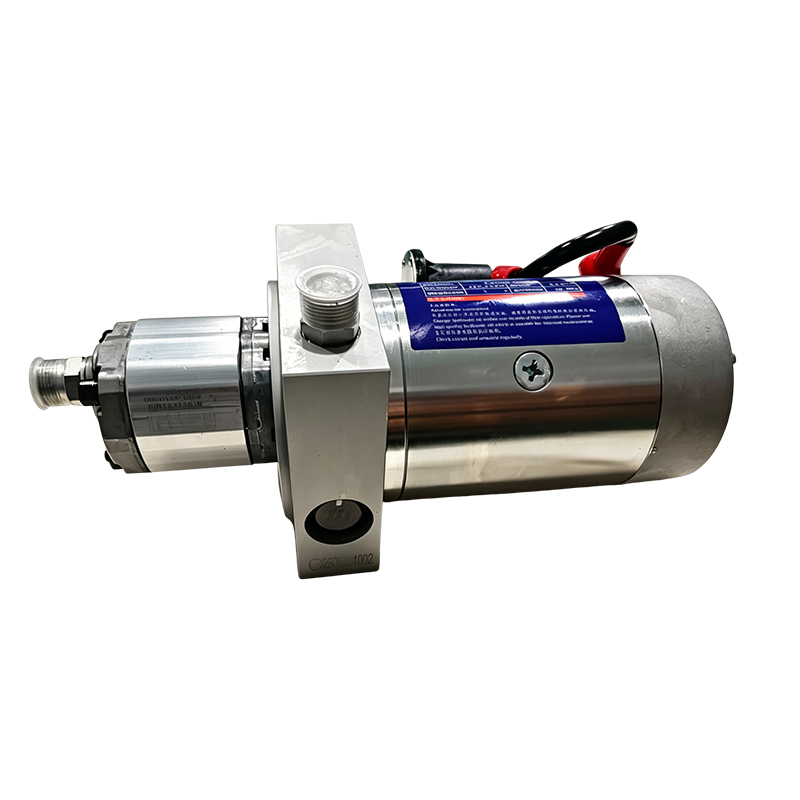

This integrated brushless hydraulic bare machine adopts an all-aluminum alloy one-piece molding structure, integrating a DC brushless motor, gear pump, and single oil circuit electromagnetic reversing valve. There is no external oil tank, and the whole machine is compact, lightweight, and corrosion resistant. It is suitable for 12V/24V car mounted DC power supply and is specially designed for small installation space equipment. It is the core hydraulic power component of new energy equipment, micro lifting fixtures, RV legs, and small modification machinery.

Core product advantages

All aluminum integrated body, corrosion-resistant and vibration resistant

The whole machine adopts aviation aluminum alloy CNC precision machining, surface polishing and rust prevention, and the weight is significantly reduced compared to traditional cast iron pumps; Modular integration without splicing gaps, less prone to oil leakage and deformation in vehicle bumps and high-frequency equipment vibration environments, and non oxidizing for long-term use in outdoor humid conditions.

Brushless silent motor, durable and long-lasting

Equipped with an efficient brushless drive motor, it has no carbon brush wear, operates with low noise and low heat, and can work continuously for a long time. Its service life is more than three times that of conventional brushed hydraulic pumps; Stable torque output, small size can output sufficient oil pressure, and the lifting and falling action is smooth without impact.

Integrated single oil solenoid valve, simple wiring

The valve block and pump body are integrated by die-casting, with short oil circuit, low pressure loss, and single action lifting control; External standard threaded oil inlet and outlet, simple pipeline connection, built-in high-pressure resistant fluororubber seal, minimal leakage under heavy load conditions; The solenoid valve has independent wiring terminals and can be flexibly controlled with wired handles or wireless remote controls.

Mini no fuel tank design, suitable for narrow spaces

Eliminate the need for an external fuel tank, with a compact horizontal size that can be embedded into equipment chassis, rack compartments, and small module interiors; The layout of the upper and lower oil ports allows for the free external connection of small oil storage tanks, with strong adaptability for modification, and the installation method is not limited by space.

Applicable scenarios

Widely used in space limited DC hydraulic equipment: RV horizontal leveling support legs, electric micro lifting platforms, automated small pressing fixtures, environmental sanitation micro lifting mechanisms, agricultural machinery small hydraulic modification, special vehicle mounted execution oil cylinders; Customizable output pressure, flow rate, and oil port specifications as needed, supporting complete shipment with plastic and metal fuel tanks.
