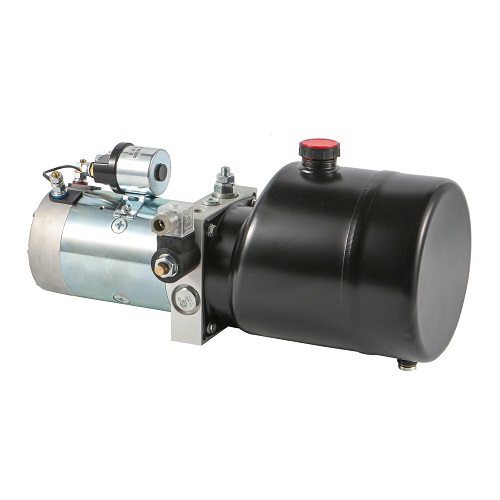

This compact hydraulic power unit is specially designed for electric aerial order pickers, providing stable and reliable lifting power for high-altitude picking, warehousing, and material handling.
Features
DC Power Supply: DC12V / DC24V for battery-powered aerial work platforms
Compact & Lightweight: Integrated structure, small size, easy installation in limited space
Smooth Lifting: Built-in flow control valve for steady lifting and gentle lowering without shaking
Double Safety Design: Equipped with hydraulic lock and emergency lowering valve to prevent platform dropping
Overload & Overheat Protection: Safety relief valve and motor thermal protection for long service life
Low Noise & Leakproof: Ideal for indoor warehouses, logistics centers and factories
IP54 Protection: Dustproof and splash-proof for various working environments
Specifications
Working Pressure: 16–21 MPa
Flow Rate: 3–6 L/min
Motor Power: 1.2kW / 1.6kW / 2.2kW optional
Oil Tank Volume: 3L / 4L / 6L
Load Capacity: Up to 300kg
Installation: Vertical / Horizontal mountable
Application
Widely used in electric aerial order pickers (2.7m–6.5m), warehouse picking equipment, high-altitude material handling and light aerial work platforms.
Customization
Custom mounting dimensions, port sizes and oil directions
Custom voltage, power and control modes available
Quality
100% factory pressure and leakage testedStable performance, long durability, and professional technical support
