Cooling type DC bidirectional hydraulic pump station

1、 Product Overview

This is a horizontal single electromagnetic reversing DC hydraulic power station, which integrates a DC motor, electromagnetic reversing valve, gear pump, and circular steel oil tank. It adopts a compact horizontal layout and is compatible with 12V/24V vehicle mounted DC power supply. It is specially designed for mobile vehicle mounted hydraulic equipment such as truck tailboards, small dump trucks, lifting tailboards, house car legs, and small lifting platforms. The single oil circuit controls the lifting of a single oil cylinder, making it a lightweight vehicle mounted hydraulic oil supply core assembly.

2、 Core structural components

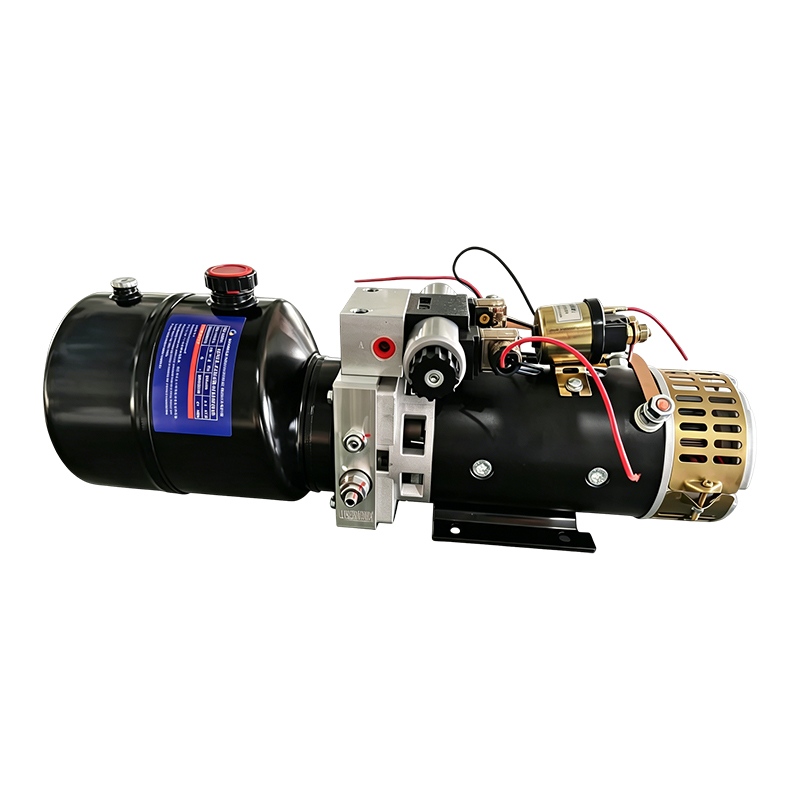

DC high-power motor

The black DC permanent magnet motor is equipped with a golden hollow heat dissipation fan cover at the front end, which has high heat dissipation efficiency and is not easy to overheat after long-term operation; Equipped with metal electromagnetic starting relay, the starting current is stable and the instantaneous torque is sufficient; The whole machine is sealed and dustproof, suitable for vehicle bumps and outdoor dusty environments, with low vibration and noise during operation.

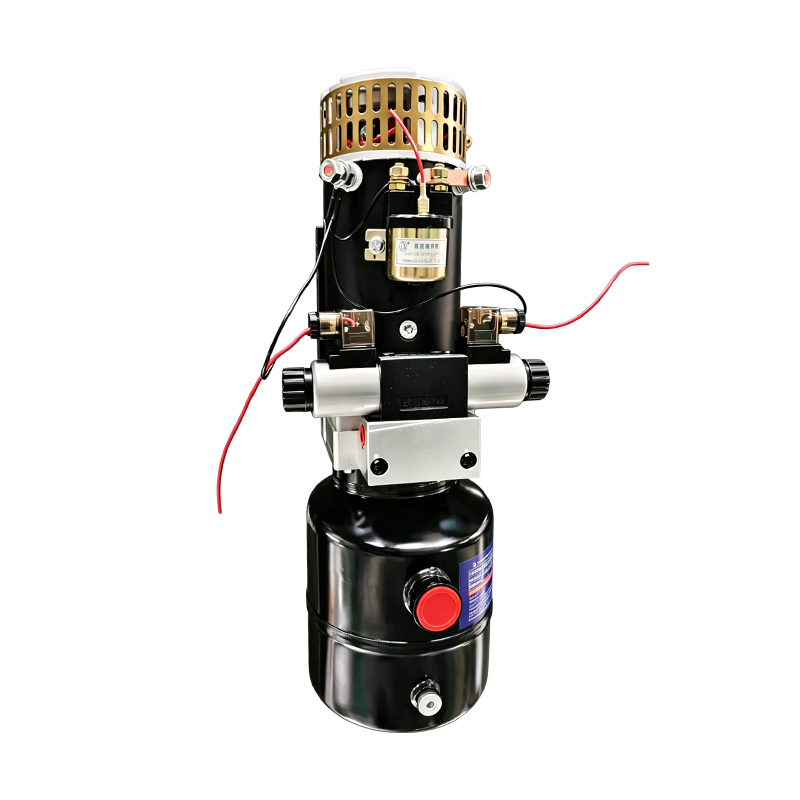

Integrated valve block for electromagnetic directional valve

Single channel electromagnetic directional valve group, independent oil inlet and outlet, electrically controlled oil circuit switching, precise control of oil cylinder rise and fall; The valve block is equipped with an overflow pressure regulating valve, which can adjust the maximum pressure of the system, automatically release pressure when overloaded, and protect the oil cylinder and pipeline; Integrated oil circuit design reduces external oil pipes and lowers the risk of leakage.

High pressure gear oil pump

High precision aluminum alloy gear pump, high volumetric efficiency, stable output oil pressure, rated working pressure up to 16MPa, wear-resistant and anti leakage, continuous lifting load power without attenuation.

Circular thickened steel fuel tank

Horizontal cylindrical black cold-rolled steel plate fuel tank, welded in one piece, resistant to pressure and not easily deformed; Top red explosion-proof breathable oil cap, convenient for adding hydraulic oil and balancing oil tank pressure; The circular structure saves horizontal installation space, adapts to narrow installation positions on the frame, is treated with anti rust coating, and is corrosion-resistant without oil leakage.

Electric control wiring assembly

Standardized solenoid valves and relay leads, simple wiring, can be directly connected to car control handles and wireless remote controllers, clear wiring, and less prone to short circuit faults.

3、 Core advantages of the product

✅  Horizontal compact layout, strong adaptability for car installation

Horizontal circular fuel tank and motor side by side structure, occupying small space horizontally, can be directly fixed to the chassis and bottom of the truck, suitable for narrow frame installation positions.

✅  Integrated electromagnetic start, easy to operate

Equipped with a dedicated starting relay and an electric control handle for one click lifting, it supports remote control without the need for manual valve operation.

✅  Multiple security protection design

Built in overflow pressure overload protection and explosion-proof breathable oil cover, the load can smoothly fall back after power failure; The motor heat dissipation fan cover effectively reduces the risk of high-temperature burning.

✅  Steel fuel tank is sturdy and durable

Circular thickened steel plate is resistant to bumps and impacts, and compared to plastic fuel tanks, it is more resistant to vehicle vibrations, less prone to cracking and leakage, and has a longer service life for outdoor vehicles.

✅  Flexible customization options

Supports DC12V/24V voltage switching, optional fuel tank capacity of 3L/4L/5L, adjustable pressure, installation of manual emergency descent valve, and customized extension lead.

4、 Typical application scenarios

Logistics trucks: box truck tailboard, small warehouse self dumping lifting mechanism

Special vehicles: RV hydraulic support legs, sanitation small dump truck, obstacle clearing vehicle assisted lifting

Lifting equipment: small mobile lifting platform, simple cargo lifting frame

Construction machinery: hydraulic lifting system for small agricultural machinery, auxiliary hydraulic system for small forklifts

5、 Standard technical parameters

Working voltage: DC12V/DC24V

Motor power: 1.6kW/2.2kW/2.5kW (optional)

Rated working pressure: 8-16MPa (adjustable on-site)

Fuel tank material: cold-rolled steel plate baked paint

Fuel tank capacity: 3L/4L/5L optional

Control mode: Single channel electromagnetic electric control lifting

Applicable medium: 46 # anti-wear hydraulic oil

Installation form: Horizontal base fixed with bolts

6、 Usage and maintenance instructions

Add 46 # anti-wear hydraulic oil to the standard level and tighten the red breathable oil cap;

Connect the hydraulic oil pipe to the valve block oil port and tighten the joint to prevent vibration and leakage during driving;

Distinguish the positive and negative wiring of the power supply, and correspond the relay and solenoid valve circuits to the controller;

Empty load test lifting action, adjust the working pressure through the overflow valve, and prohibit overpressure use;

Check the cleanliness of the hydraulic oil every 200 hours of use, and regularly clean the dust outside the fuel tank when the vehicle is used outdoors.

7、 After sales guarantee

Factory stock supply, supporting customized non-standard parameters, providing wiring drawings and guidance for on-board installation and debugging; The whole machine has a one-year warranty, and the motor, relay, pump body, and valve components are long-term matched. Remote fault technical troubleshooting is available, and a complete set of hydraulic solutions for matching oil cylinders and hydraulic oil pipes can be purchased in bulk.
