DC bidirectional hydraulic pump station

Product Overview

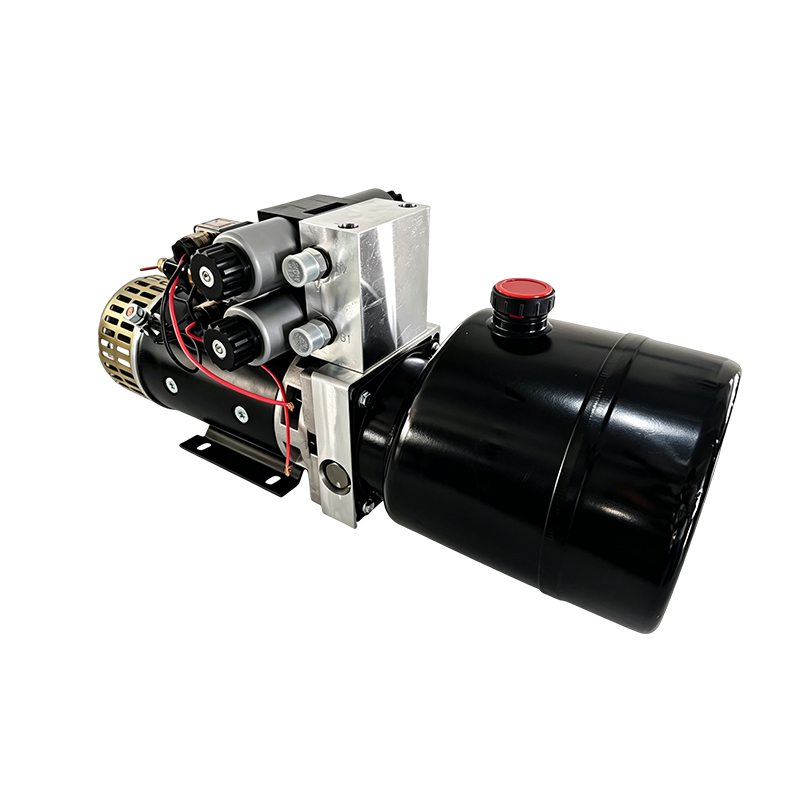

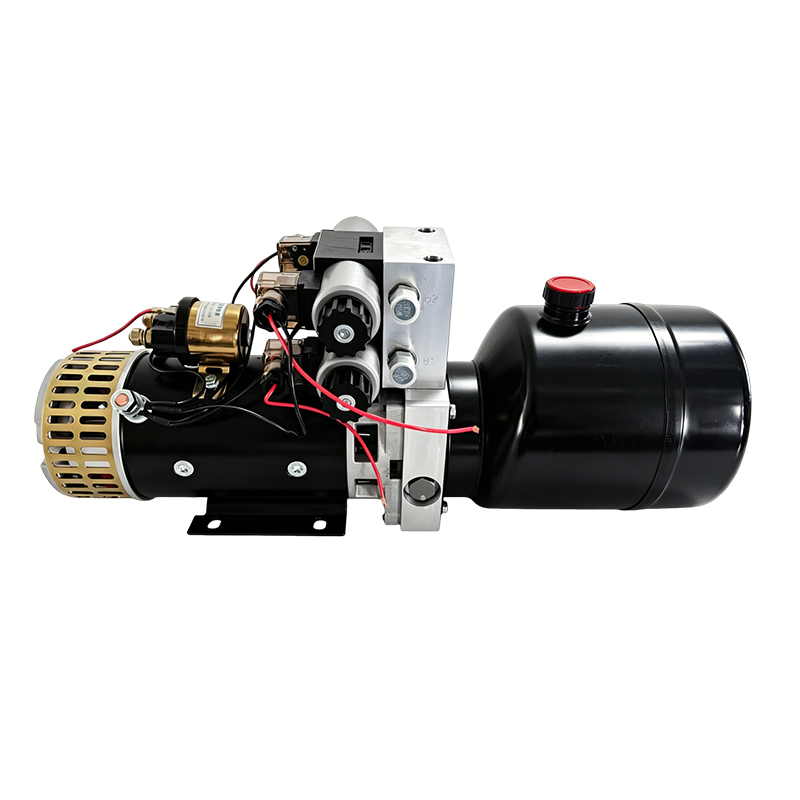

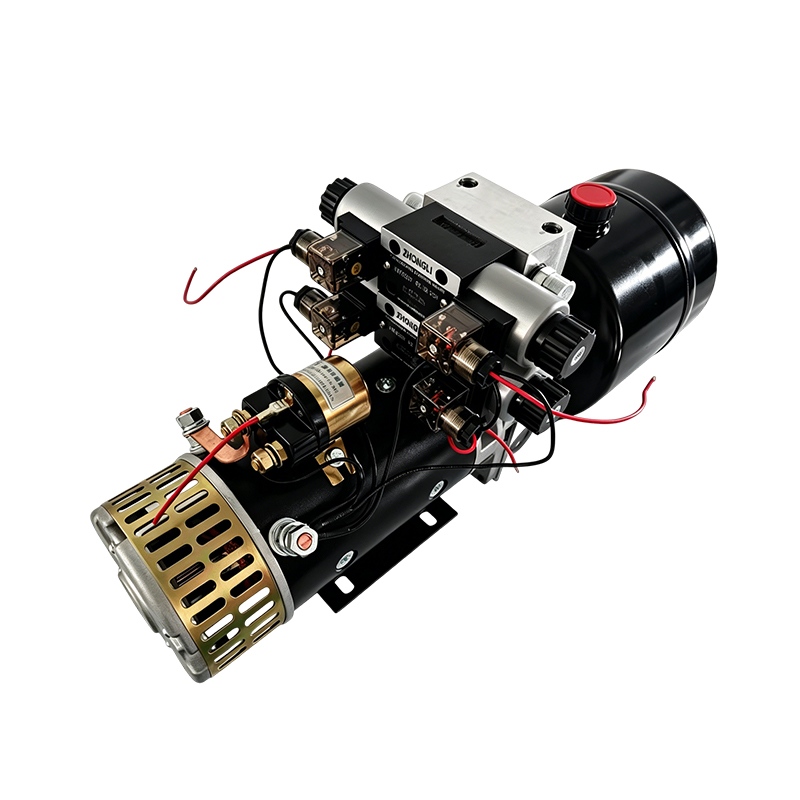

This horizontal round iron oil tank hydraulic power unit is suitable for 12V/24V vehicle mounted DC power supply. The front end of the motor is equipped with a hollow metal heat dissipation cover and a bidirectional electromagnetic directional integrated valve block. The bare wire output design is convenient for matching various remote controls and wired handle controllers. It is a universal hydraulic drive assembly for dump trucks, obstacle clearing vehicle tailboards, agricultural tipping buckets, and small lifting platforms.

core strengths

Widening hollow heat dissipation cover, long-lasting high temperature resistance

The front end of the motor is equipped with a large-area ventilation and heat dissipation grille to accelerate air circulation, quickly dissipate heat during long-term lifting operations, and prevent high-temperature shutdown and motor burning faults; The motor winding is thickened, providing ample power and ensuring smooth lifting under heavy loads.

Bidirectional solenoid valve block, independent lifting control

Integrated aluminum alloy bidirectional oil valve group, independent control of rising and falling dual electromagnetic, smooth start stop of oil cylinder without impact; Precision grinding valve holes combined with high-pressure sealing components, long-term use is not easy to leak oil, and the oil circuit responds quickly.

Thickened circular steel fuel tank, rust resistant and durable

One piece cold-rolled steel round oil tank, with high-temperature spray coating for anti-corrosion and wear-resistant surface; The top is sealed with a red oil cap, making it easy to add hydraulic oil. The chamber has sufficient capacity and is suitable for continuous circulation operation, making it less prone to oil shortage and overheating.

Bare wire output design, compatible with various control accessories

The red and black main line is directly led out, and can be freely matched with wired manual control box, wireless remote control, foot switch, with strong adaptability for modification; Horizontal structure, can be installed in small spaces on the vehicle body, and is easy to disassemble and maintain.

Applicable scenarios

Widely used in 12/24V vehicle mounted equipment: dump trucks, truck loading and unloading tailboards, road clearing vehicles, agricultural machinery lifting and modification, small scissor lift platforms, RV leveling legs, and sanitation micro lifting equipment; Customized fuel tank capacity, output pressure, and pipeline interfaces can be provided as needed, and remote control and wired handles can be installed in complete sets.
