DC hydraulic power unit

I. Product Overview

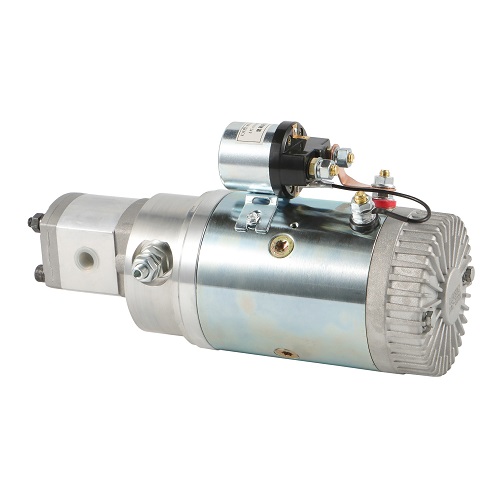

This DC hydraulic power unit is an integrated hydraulic power source specifically designed for scenarios without AC power supply. With a DC motor as the core drive, it is integrated with a hydraulic pump, control valve assembly, and oil storage tank. The entire unit adopts a compact structural design, capable of quickly providing stable power to hydraulic actuators. It is widely suitable for various DC-powered hydraulic scenarios such as vehicle-mounted equipment, mobile devices, and emergency devices, and is a core component for achieving hydraulic lifting, braking, clamping, and elevating actions.

II. Core Structure and Technical Highlights

1. High-efficiency DC drive system

Equipped with a high-torque DC motor (compatible with mainstream DC voltages such as 12V/24V/48V), the motor housing features a finned design to increase the heat dissipation area and effectively reduce temperature rise during prolonged operation. The motor incorporates high-quality permanent magnet materials, providing high starting torque and fast response speed, accurately matching the start-stop requirements of hydraulic pumps and adapting to frequent start-stop conditions.

2. Precision hydraulic power components

Equipped with a high-pressure gear pump/plunger pump (selected as needed), the pump body utilizes high-precision gear/plunger coordination, ensuring stable flow and minimal pressure pulsation. It can output a rated pressure of 10-31.5 MPa, meeting the power requirements of small and medium-sized hydraulic equipment. The pump body and motor adopt a coaxial direct-connection design, eliminating transmission clearance, improving power transmission efficiency, and reducing noise and vibration.

3. Integrated control module

The top is integrated with electromagnetic relays/contactors to achieve precise control of motor start-stop. The wiring terminals are designed with locknuts and insulating sheaths to ensure the safety and stability of high DC current connections. Core control components such as built-in relief valves and check valves are incorporated to automatically adjust the system's rated pressure, achieve overload protection and pressure maintaining functions, and prevent system damage from overpressure.

4. Durable oil storage and sealing design

Equipped with a lightweight hydraulic oil tank, the material is made of carbon steel/aluminum alloy and undergoes anti-corrosion spraying treatment, providing resistance to rust and impact; the oil tank interface is reserved with a liquid level observation port and a fuel filling port, facilitating daily oil detection and filling. At the same time, it is equipped with high-quality seals to prevent hydraulic oil leakage, adapting to the bumpy working environment of mobile equipment.

5. Full-condition adaptive design

The motor terminals are equipped with waterproof and dustproof connectors, achieving a protection level of IP54, suitable for complex working conditions such as outdoor, vehicular, and humid environments. The entire machine is equipped with a standardized mounting base with universal hole positions, allowing for quick installation on equipment such as forklifts, sanitation vehicles, lifting platforms, and hydraulic fixtures. The installation is convenient and maintenance is simple.

IV. Applicable Scenarios

✅ Mobile equipment: electric forklifts, stacker trucks, dump trucks, sanitation garbage trucks, aerial work platforms

✅ Emergency equipment: hydraulic lifts, car lifts, emergency demolition equipment, rescue devices

✅ Industrial supporting equipment: hydraulic clamps, small hydraulic stations, automated production lines, machine tool hydraulic systems

✅ Special scenarios: ship hydraulic equipment, agricultural machinery, medical lifting equipment, stage lifting devices.
