Electromagnetic reversing AC hydraulic power unit

1、 Product Overview

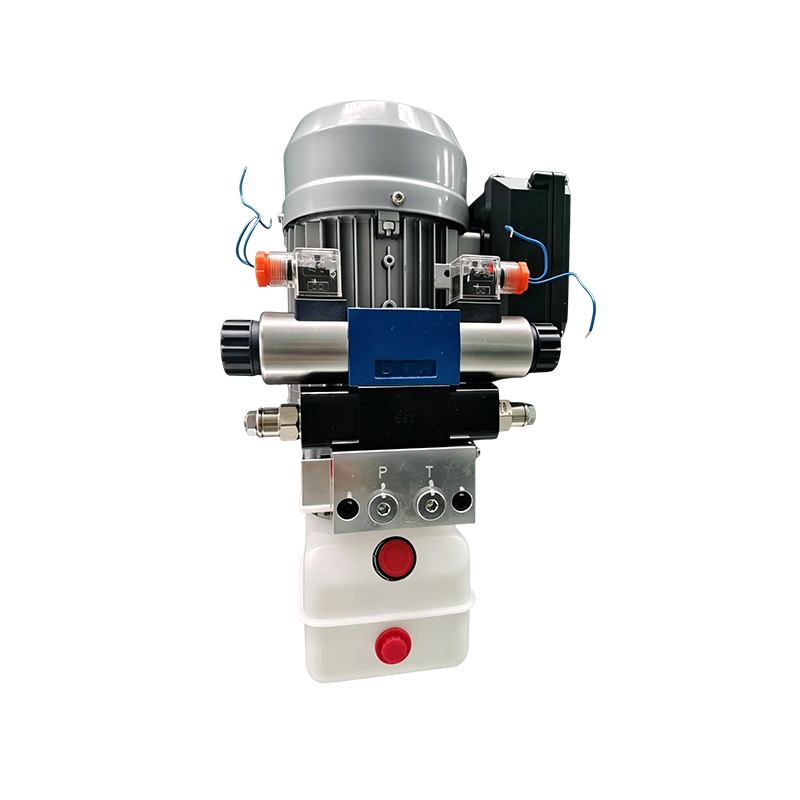

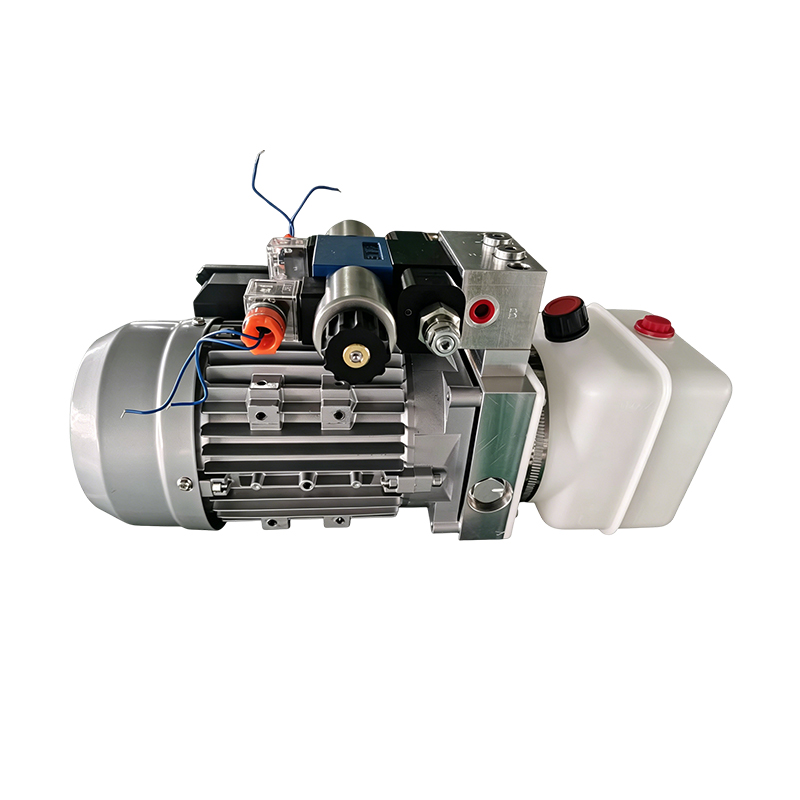

This is a dual oil independent control AC hydraulic power station, adopting a horizontal compact integrated structure, equipped with a lightweight PE plastic oil tank, dual electromagnetic directional integrated valve block, and compatible with AC220V single-phase/AC380V three-phase industrial mains power. One pump station can drive two sets of hydraulic cylinders to independently lift and lower, and is widely matched with fixed industrial hydraulic equipment such as small lifting platforms, boarding bridges, tire stripping machines, and assembly line dual station lifting fixtures.

2、 Core component analysis

Corrosion resistant PE plastic fuel tank

One piece blow molded white engineering plastic fuel tank, with light weight and no risk of rust, to prevent rust residue from blocking the valve group and damaging the oil cylinder of the iron fuel tank; The box is equipped with dual red breathable oil covers, which balance oil injection and air pressure. It comes with an oil level observation scale, making it easy to add, inspect and maintain. It is resistant to oil stains and acid and alkali corrosion.

Aluminum shell AC industrial motor

All aluminum alloy heat dissipation body, fully covered with heat dissipation fins, low temperature rise during long-term continuous operation; Black sealed junction box with high voltage warning label, protection level IP54, dust-proof and splash proof, suitable for workshop environments with high dust and humidity; The motor has low vibration and noise during operation, and the power output is stable and long-lasting.

Dual channel integrated electromagnetic directional valve group

Equipped with two independent electromagnetic directional valves, A and B ports do not interfere with each other, and can control the two oil cylinders to complete the up, down, and pressure holding actions respectively; The valve block is equipped with a built-in total overflow pressure regulating valve, which can uniformly adjust the maximum working pressure of the system, automatically release pressure when overloaded, and protect the pipeline and oil cylinder; Standardized exposed wiring, compatible with external electrical control handles and PLC automation control.

High pressure aluminum alloy gear pump

High precision gear pump, high volumetric efficiency, rated working pressure up to 16MPa, uniform and stable oil supply, dual oil circuit synchronous output without obvious pressure attenuation, wear-resistant and anti internal leakage, long service life.

One piece integrated base

The motor, pump body, and valve block share a metal support base, making the overall structure compact, reducing assembly gaps, and minimizing operational vibrations. Only bolt fixation is required on site, and the assembly process is simple.

3、 Core advantages of the product

✅  Dual independent control, saving equipment space

A single pump station simultaneously drives two sets of hydraulic actuators, saving the cost of purchasing two sets of power units and significantly reducing the space occupied by equipment installation. It is suitable for dual side lifting and dual station synchronous operation conditions.

✅  PE plastic fuel tank is rust free, reducing maintenance costs

The plastic material does not rust, avoiding blockages caused by impurities in the oil circuit. It is designed to be lightweight, easy to handle and install, and has no paint peeling or corrosion problems.

✅  Exchange industrial power supply, support long-term continuous operation

Adapt to the fixed mains power supply of the factory, distinguish from the on-board DC pump station, and meet the continuous operation needs of the assembly line for 24 hours.

✅  Integrated valve block design with fewer leakage points

The oil circuit is equipped with an integrated structure, reducing the number of external copper pipe joints and significantly reducing the probability of oil leakage. Standardized oil port expansion accessories are convenient.

✅  Multi specification flexible customization

Support motor power of 0.75~2.2kW, oil tank capacity of 3L/5L, single/dual valve group switching, installation of manual emergency descent function, and customization of extended control lines.

4、 Typical application scenarios

Auto repair equipment: tire scraping machine, double column small lift, hydraulic fixture

Logistics and warehousing: fixed boarding bridge, dual station cargo lifting platform

Automated assembly line: double-sided lifting fixtures, paired hydraulic clamping mechanisms

Small non-standard machinery: Double cylinder bending and punching hydraulic equipment

Venue supporting facilities: small double pivot lifting stage, hydraulic system for lifting basketball hoops

5、 Standard technical parameters

Supply voltage: AC220V single-phase/AC380V three-phase

Motor power: 0.75kW/1.1kW/1.5kW/2.2kW optional

Oil channel: 2-channel independent electromagnetic control

Rated working pressure: 8-16MPa (unified pressure regulation for the whole machine)

Fuel tank material: PE engineering plastic

Fuel tank capacity: 3L, 5L optional

Control mode: Electromagnetic electric control lifting, optional manual emergency pressure relief

Applicable medium: 46 # anti-wear hydraulic oil

Installation method: Horizontal base bolt fixation

6、 Instructions for Use and Maintenance

Add 46 # anti-wear hydraulic oil to the standard oil level mark of the oil tank, and tighten the red breathable oil cap;

Two oil pipes are respectively connected to the corresponding oil cylinder ports, and the joints are tightened to prevent leakage;

Strictly distinguish single-phase/three-phase power supply wiring for motors, provide grounding protection, and conduct no-load trial operation after confirming that the motor direction is correct;

Adjust the overflow valve to set the system working pressure according to the load demand, and prohibit the use beyond the rated pressure;

Check the cleanliness of the hydraulic oil every 300 hours, and replace it promptly if turbidity or impurities appear.

7、 After sales guarantee

Factory stock direct delivery, supporting non-standard customization of power, fuel tank capacity, and valve group routes, providing wiring drawings, installation and commissioning technical guidance; The whole machine has a 12-month warranty, and the motor, pump body, and dual solenoid valve accessories are supplied for long-term matching. Remote fault diagnosis is available, and a complete set of hydraulic solutions for matching oil cylinders, oil pipes, and controllers can be purchased in bulk.
