Horizontal single electromagnetic AC hydraulic power unit

1、 Product Overview

This is a horizontal single channel electromagnetic reversing AC hydraulic power station with an integrated horizontal layout. It is equipped with a large capacity circular steel oil tank, an all aluminum shell AC motor, and a single channel electromagnetic integrated valve block. It is compatible with AC220V single-phase/AC380V three-phase industrial mains power and a set of pump station controls the lifting of a single oil cylinder. It has strong versatility and is widely used in fixed industrial hydraulic equipment such as gantry cranes, small lifting platforms, tire stripping machines, and assembly line lifting fixtures.

2、 Core component analysis

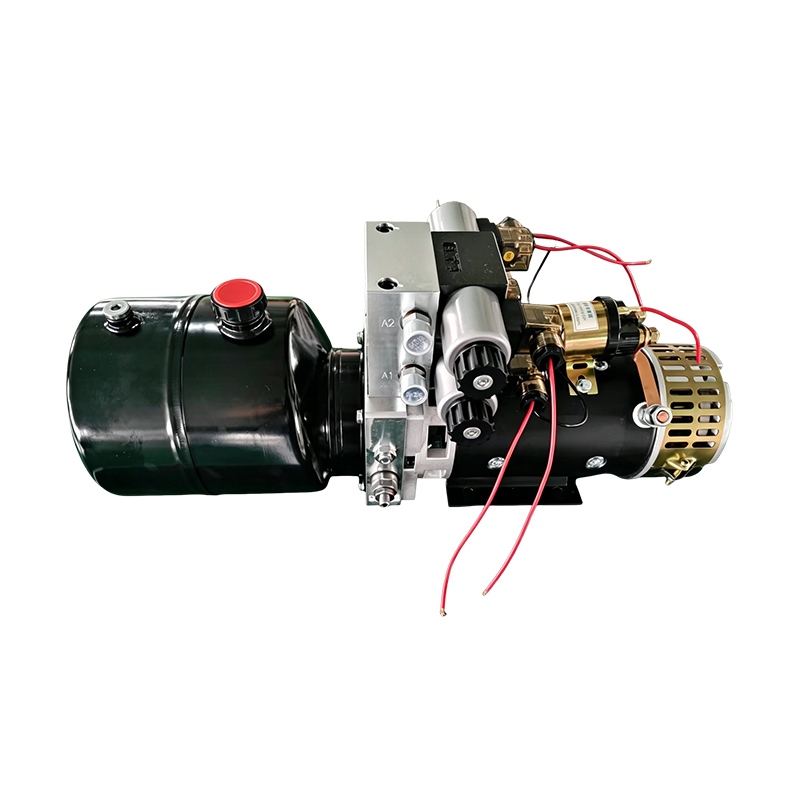

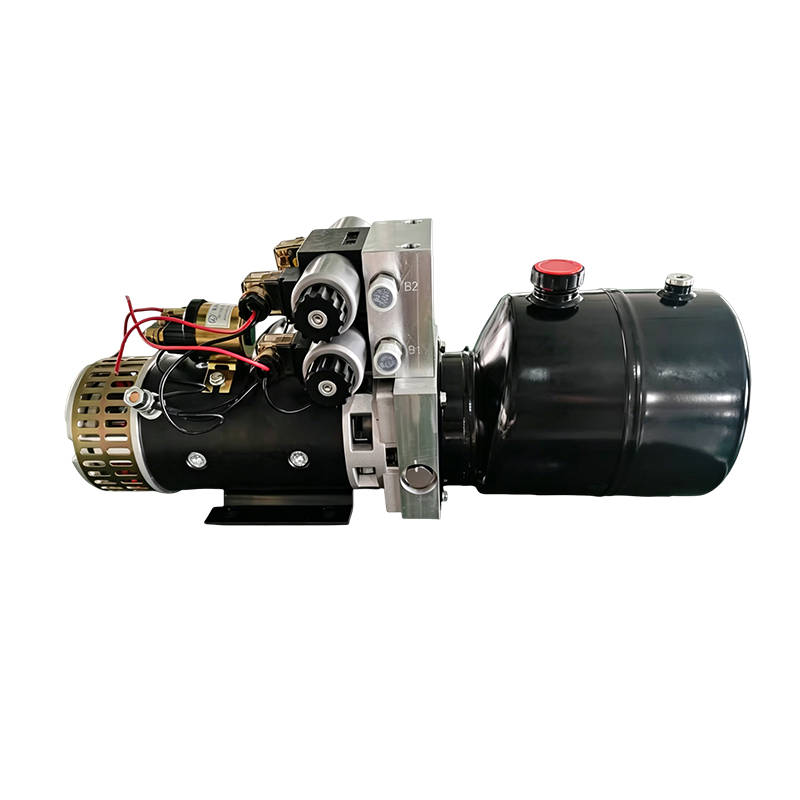

Large capacity circular thickened steel fuel tank

One piece cold-rolled steel plate welded cylindrical fuel tank, black anti-corrosion paint, pressure and deformation resistance; The top red explosion-proof breathable oil cap balances the pressure of the oil tank and facilitates the filling of hydraulic oil; Side mounted product parameter identification, large capacity design extends oil replenishment cycle, and horizontal structure adapts to narrow installation positions on the side of the equipment.

All aluminum shell industrial AC motor

Integrated aluminum alloy heat dissipation body, dense heat dissipation fins, low temperature rise during long-term continuous operation; The square sealed junction box has a protection level of IP54, is dustproof and splash proof, and is suitable for workshop environments with high dust and humidity; The outgoing line leads out a red and black bare wire terminal, which is convenient for on-site wiring, has low operating noise, and stable power output.

Single channel electromagnetic directional integrated valve block

Precision forged aluminum alloy integrated valve block, equipped with a single set of electromagnetic directional valve, electrically controlled to switch the oil circuit, realizing the rise, fall, and pressure maintenance of the oil cylinder; The valve block is equipped with an overflow pressure regulating valve, which can uniformly adjust the maximum pressure of the system and automatically release pressure to protect the pipeline oil cylinder from overload; The valve block integrates a one-way pressure maintaining structure, which makes it difficult for the load to fall back on its own after shutdown.

High pressure aluminum alloy gear pump

High precision wear-resistant gear pump, high volumetric efficiency, rated working pressure up to 16MPa, uniform and stable oil supply, no significant attenuation of lifting load oil pressure, wear-resistant and anti internal leakage, suitable for small and medium-sized lifting and clamping loads.

Integrated metal mounting base

The motor, pump, valve block, and oil tank share a metal support base, which provides good shock absorption effect for the entire machine. It can be directly bolted to the equipment rack, making on-site assembly simple and reducing vibration and leakage caused by assembly gaps.

3、 Core advantages of the product

✅  Single channel standard universal version, suitable for the vast majority of small industrial equipment

Single cylinder control design, suitable for single cylinder lifting and clamping equipment, with strong versatility in stocking and reduced inventory costs.

✅  Exchange industrial power supply, support 24-hour intermittent continuous operation

Adapt to the fixed mains power supply of the factory, distinguish from the on-board DC pump station, and meet the long-term uninterrupted start stop requirements of the assembly line.

✅  Large capacity steel fuel tank to reduce frequent refueling

The extended circular fuel tank has a larger oil storage capacity, prolongs maintenance cycles, and the thickened steel plate is resistant to bumps and high temperatures. There are no issues with plastic fuel tanks aging, cracking, rusting, or blockages in the oil circuit.

✅  Aluminum shell motor with efficient heat dissipation and longer service life

The all aluminum body quickly dissipates heat, making it less likely to burn out coils during long-term full load operation. The sealed junction box resists workshop dust and moisture.

✅  Flexible non-standard customization

Support motor power of 0.75~3kW, fuel tank capacity of 3-8L, installation of pressure gauge, manual emergency descent, and customization of extended control lines.

4、 Typical application scenarios

Auto repair equipment: tire scraping machine, single column small lift, hydraulic clamping fixture

Logistics and warehousing: fixed boarding bridge, single cylinder small cargo lifting platform, warehousing lifting column

Automated assembly line: single station material lifting fixture, small hydraulic press fitting machine

Small non-standard machinery: simple bending and punching hydraulic equipment

Venue supporting facilities: small single pivot lifting stage, hydraulic system for lifting basketball hoops

5、 Standard technical parameters

Supply voltage: AC220V single-phase/AC380V three-phase

Motor power: 0.75kW/1.1kW/1.5kW/2.2kW/3kW optional

Oil channel: 1 independent electromagnetic control

Rated working pressure: 8-16MPa (adjustable for the entire machine)

Fuel tank material: Cold rolled steel plate anti-corrosion paint

Fuel tank capacity: 4L, 5L, 8L optional

Additional features: Can be equipped with pressure gauges and manual emergency relief valves

Applicable medium: 46 # anti-wear hydraulic oil

Installation form: Horizontal base fixed with bolts

6、 Instructions for Use and Maintenance

Add 46 # anti-wear hydraulic oil to the standard oil level mark of the oil tank, and tighten the red breathable oil cap;

Connect the hydraulic oil pipe to the inlet and outlet of the valve block, tighten the joint to prevent leakage;

Distinguish single-phase/three-phase standard wiring for motors and ensure proper grounding. After confirming that the motor direction is correct, conduct a no-load test run;

Set the working pressure of the overflow valve according to the load regulation, and prohibit long-term operation beyond the rated pressure;

Check the cleanliness of hydraulic oil every 300 hours, and replace it promptly if the oil is cloudy or contains impurities.

7、 After sales guarantee

Factory stock direct delivery, supporting non-standard customization of power, fuel tank capacity, and valve group configuration, providing wiring drawings, installation and commissioning technical guidance; The whole machine is guaranteed for 12 months, and the motor, pump body, and solenoid valve accessories are supplied for long-term matching. Remote troubleshooting is available, and a complete set of hydraulic solutions for matching oil cylinders and oil pipes can be purchased in bulk.
