HP-10 Manual Pump Single-Acting Manual Pump

HP-10 is a compact single-acting plunger manual hydraulic pump without built-in valve. Operate the hand lever reciprocally to drive internal plunger, changing pump chamber volume to finish oil intake and high-pressure oil output, converting manual mechanical energy into hydraulic energy. Its threaded bottom interface enables quick screwing connection with hydraulic cylinders and quick couplings, featuring easy assembly and flexible layout.Core Features✅ Ergonomic Labor-saving Design

Referring to the Pressure-Handle Force Diagram, the optimal operating force benchmark (orange line) guides customers to configure matched handle length for working pressure from 0~600BAR, maintaining comfortable hand load and reducing fatigue during continuous operation.

✅ Miniature Compact Structure

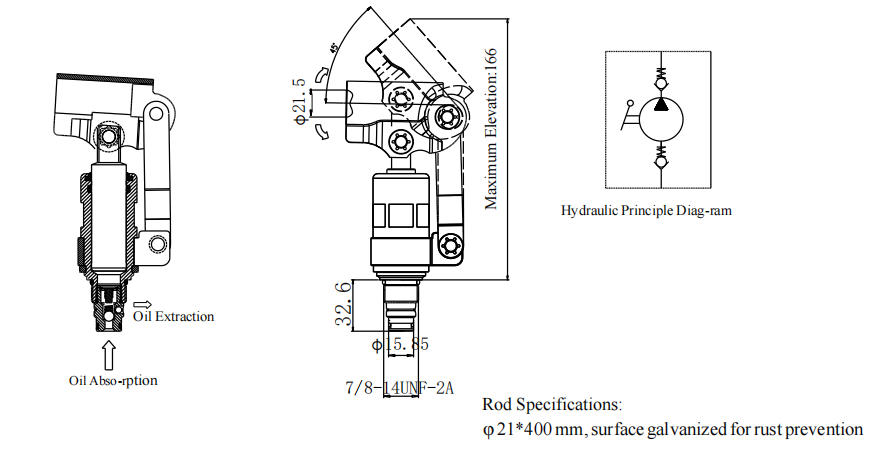

Small overall dimension with thread connection at outlet, no integrated valve simplifies hydraulic pipeline design, cuts down matching cost of small hydraulic systems.

✅ Wide Pressure Range

Stable hydraulic output within 0–600bar working pressure, fits low & medium-high pressure portable hydraulic equipment.Application RangePerfectly matched with single-acting hydraulic cylinders, widely used for portable hydraulic tools, equipment maintenance, vehicle repair, miniature customized hydraulic power units and field emergency hydraulic operations.
