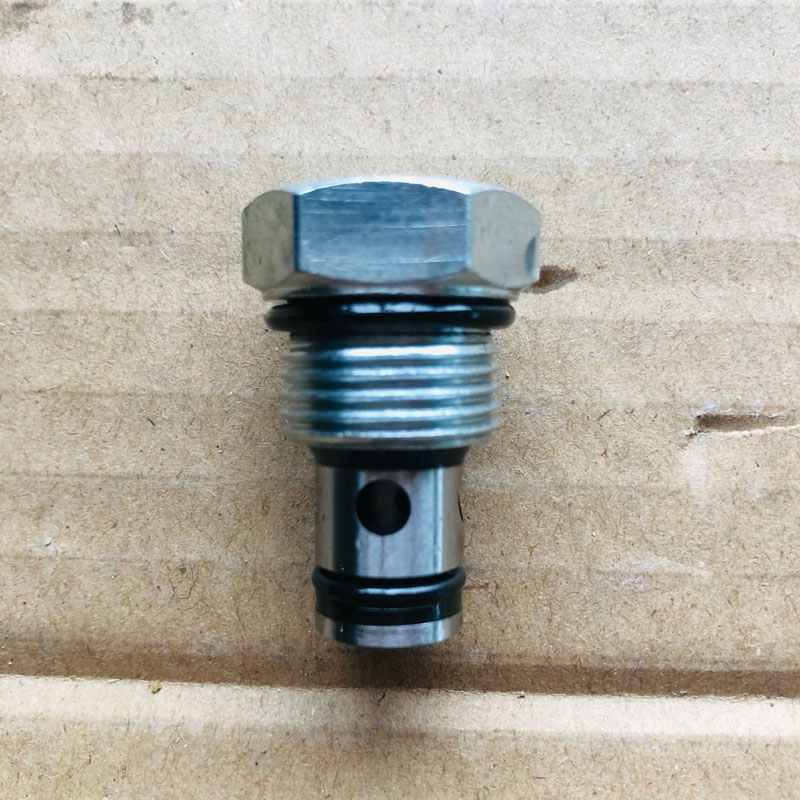

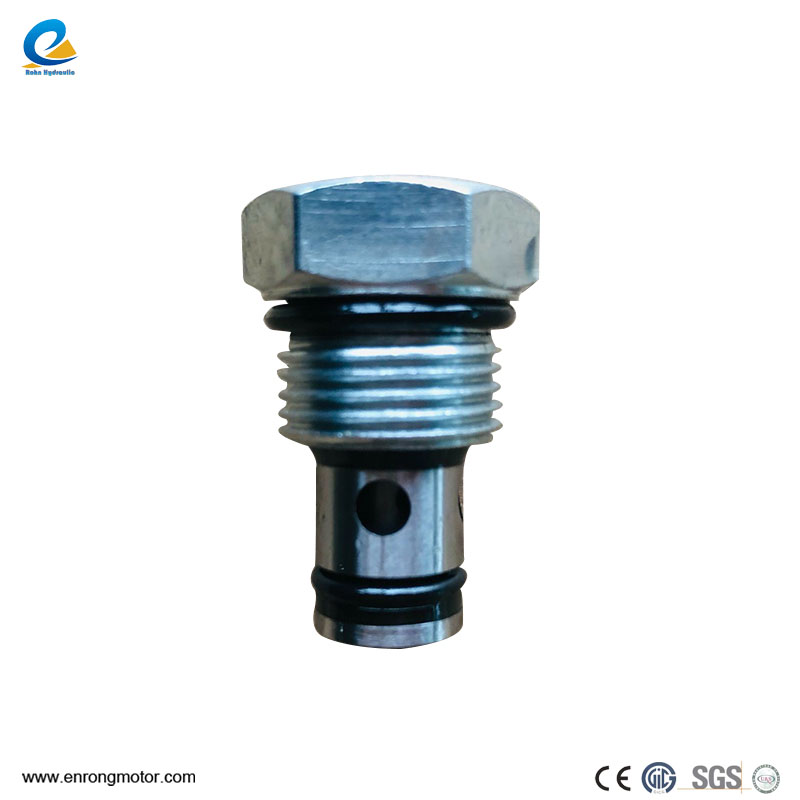

Hydraulic Check Valves

Rohn Hydraulic's Hydraulic check valves are essential components in hydraulic systems, designed to allow fluid flow in one direction while preventing backflow in the opposite direction. These valves play a crucial role in maintaining system efficiency, safety, and reliability. Let's delve into the description, characteristics, applications, and details of hydraulic check valves.

Description:

Hydraulic check valves, also known as non-return valves or one-way valves, are mechanical devices that permit fluid flow in one direction while blocking it in the opposite direction. They typically consist of a valve body, a movable disc or ball, a spring, and seals. When fluid pressure exceeds a certain threshold, the valve opens, allowing fluid to flow in the desired direction. Conversely, when the pressure drops or reverses, the valve closes, preventing backflow.

Characteristics:

Unidirectional Flow: The primary function of hydraulic check valves is to ensure unidirectional flow of fluid, preventing reverse flow and maintaining system integrity.

Compact Design: Check valves are designed to be compact, allowing for easy installation in hydraulic systems with limited space constraints.

Quick Response: These valves offer rapid response times, opening and closing quickly to control fluid flow efficiently.

Versatility: Hydraulic check valves are available in various designs and configurations to suit different applications and system requirements.

Durable Construction: Constructed from high-quality materials such as stainless steel, brass, or aluminum, hydraulic check valves are durable and capable of withstanding high pressures and temperatures.

Applications:

Hydraulic Systems: Check valves are commonly used in hydraulic systems for machinery, equipment, and vehicles to prevent reverse flow and maintain system pressure.

Pneumatic Systems: In pneumatic systems, check valves ensure unidirectional airflow, preventing backflow and maintaining system efficiency.

Water and Wastewater Treatment: Check valves play a vital role in water and wastewater treatment plants to control the flow of fluids and prevent contamination.

Oil and Gas Industry: In oil and gas pipelines and drilling operations, hydraulic check valves prevent backflow and ensure the safe and efficient transport of fluids.

Power Generation: Check valves are used in power generation facilities such as hydroelectric dams and nuclear power plants to control fluid flow and prevent damage to equipment.

Details:

Types of Check Valves: Hydraulic check valves come in various types, including ball check valves, swing check valves, and piston check valves, each with its own advantages and applications.

Installation Orientation: Check valves can be installed in different orientations, including horizontal, vertical, or diagonal, depending on the specific requirements of the hydraulic system.

Sealing Mechanism: Check valves utilize seals such as O-rings or elastomer seals to ensure leak-tight operation and prevent fluid leakage.

Pressure Ratings: Check valves are rated for specific pressure ranges, and selecting the appropriate pressure rating is crucial to ensure proper operation and system performance.

Maintenance: Regular inspection and maintenance of hydraulic check valves are essential to ensure proper functioning and prevent issues such as leakage or failure.

Safety Considerations: Proper selection, installation, and maintenance of check valves are critical for system safety and reliability. It's essential to follow manufacturer guidelines and industry standards to prevent accidents and equipment damage.

In summary, hydraulic check valves are indispensable components in hydraulic systems, providing reliable and efficient control of fluid flow. With their unidirectional flow capabilities, compact design, and versatility, these valves play a vital role in various industries and applications, ensuring smooth and safe operation of hydraulic systems.
