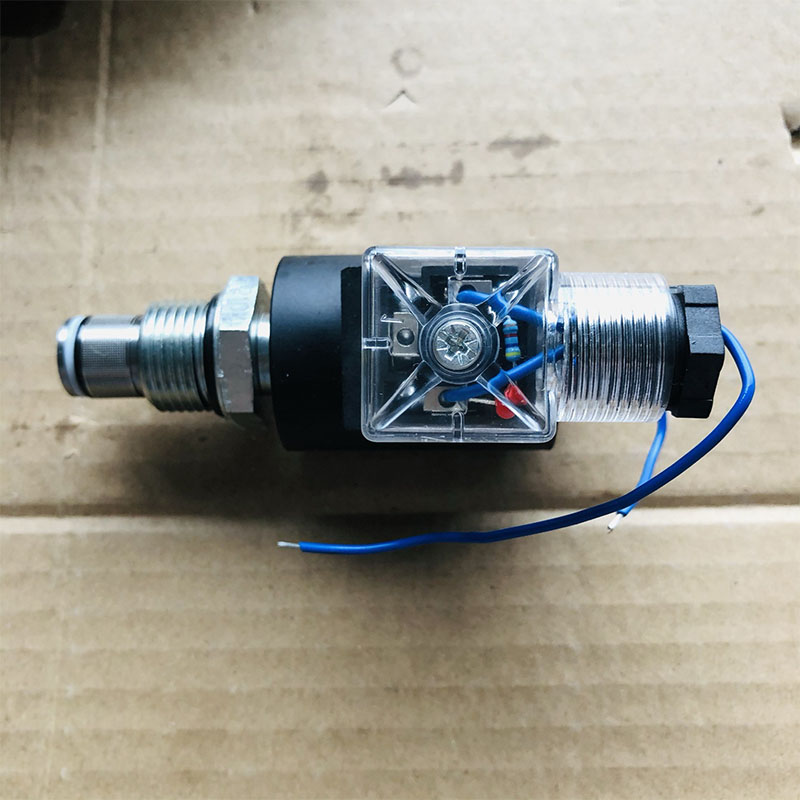

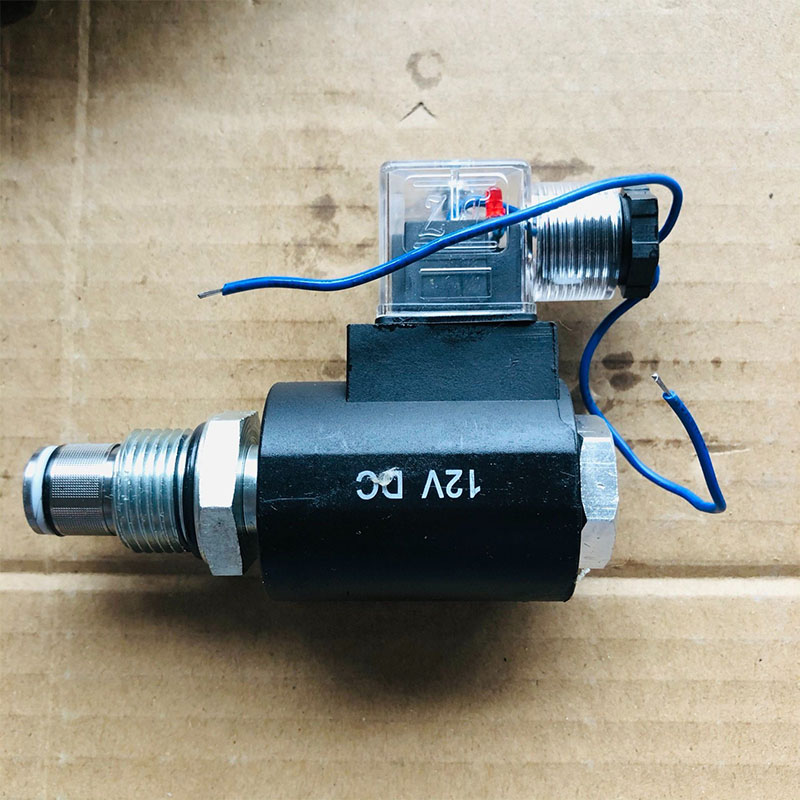

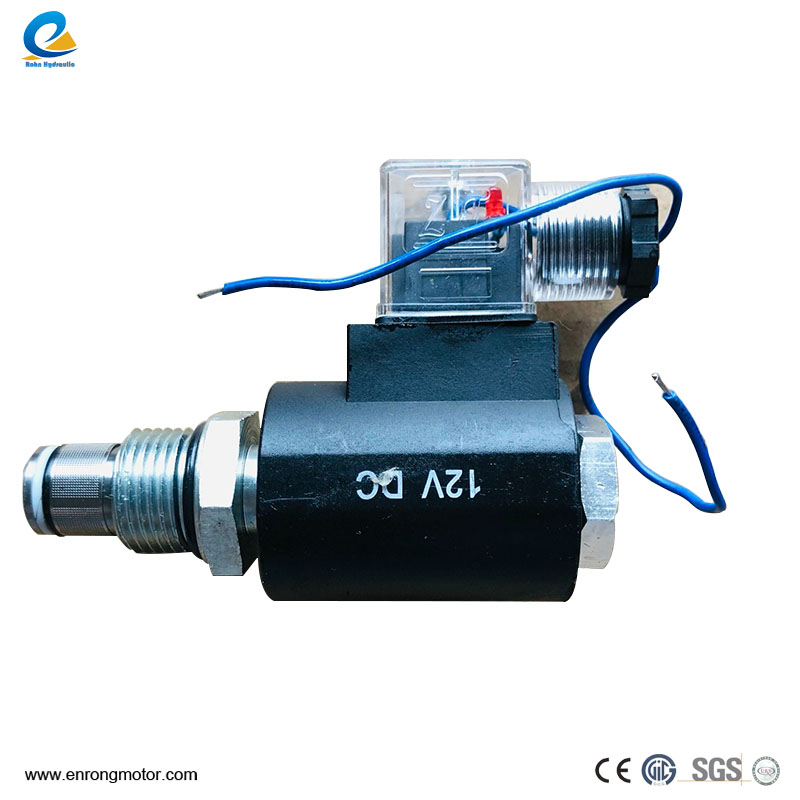

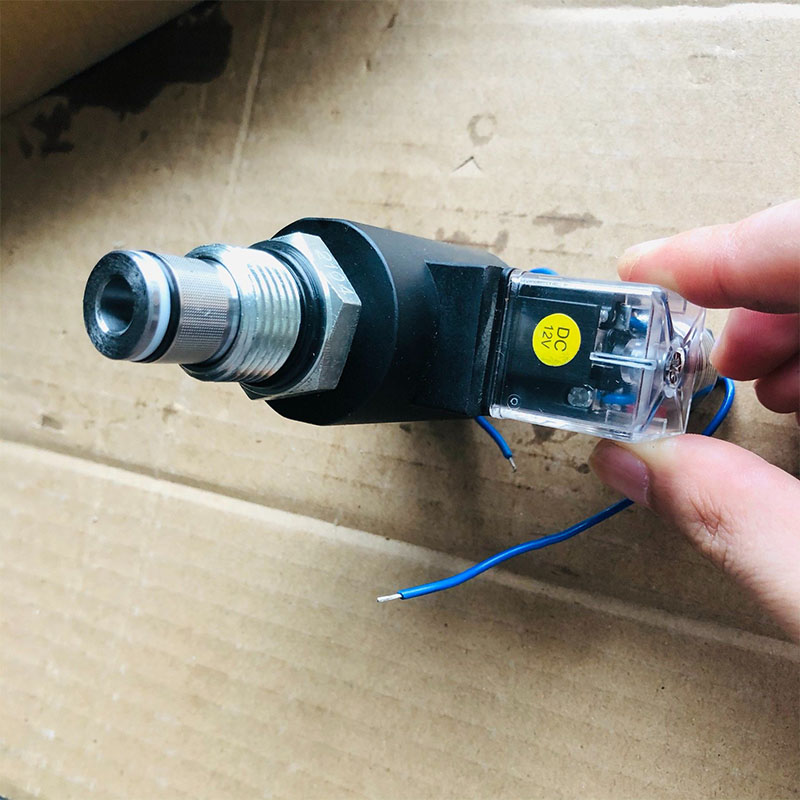

Two-Position Two-Way Solenoid Directional Valve

The Two-Position Two-Way Solenoid Directional Valve is a pivotal component in hydraulic systems, offering precise control over fluid flow direction and enabling efficient operation in various applications. This valve type is characterized by its ability to switch between two positions to control the flow of hydraulic fluid in two directions. Let's delve into its description, characteristics, applications, and details.

Description:

The Two-Position Two-Way Solenoid Directional Valve comprises a housing with ports for hydraulic fluid inlet and outlet, a movable spool, and a solenoid coil. When energized, the solenoid coil generates a magnetic field, causing the spool to shift between two positions, thereby directing the flow of hydraulic fluid.

Characteristics:

Precise Control: These valves offer precise control over the direction of hydraulic fluid flow, ensuring accurate positioning and operation of hydraulic actuators.

Quick Response: With fast response times, Two-Position Two-Way Solenoid Directional Valves enable rapid switching between positions, enhancing system performance and efficiency.

Compact Design: They feature a compact design, making them suitable for installations where space is limited or where multiple valves need to be accommodated.

Reliability: Built with durable materials and components, these valves exhibit high reliability and longevity, minimizing downtime and maintenance costs.

Energy Efficiency: They consume minimal energy during operation, contributing to overall system efficiency and reducing operational costs.

Applications:

Machine Tools: These valves are commonly used in machine tool applications such as hydraulic presses, CNC machining centers, and milling machines for controlling the movement of hydraulic cylinders and actuators.

Material Handling Equipment: In material handling systems like conveyor belts, lift tables, and robotic arms, Two-Position Two-Way Solenoid Directional Valves facilitate precise control over the movement of loads and components.

Industrial Automation: They play a crucial role in industrial automation systems for tasks such as clamping, sorting, and positioning in manufacturing processes.

Mobile Equipment: In mobile hydraulic systems found in agricultural machinery, construction equipment, and forestry vehicles, these valves control various functions such as lifting, tilting, and steering.

Fluid Power Systems: Two-Position Two-Way Solenoid Directional Valves are integral components in hydraulic power units, hydraulic presses, and hydraulic systems used in a wide range of industries for power transmission and control.

Details:

Spool Design: The spool inside the valve is carefully designed to ensure smooth and reliable switching between positions, minimizing fluid leakage and pressure drop.

Sealing Technology: High-quality seals are employed to prevent leakage and ensure proper functioning of the valve over its lifespan.

Flow Capacity: These valves are available in various sizes and flow capacities to accommodate different hydraulic system requirements.

Voltage Requirements: Solenoid coils are designed to operate within specific voltage ranges, and proper voltage selection is essential for optimal valve performance.

Mounting Options: Two-Position Two-Way Solenoid Directional Valves can be mounted in different orientations to suit the layout and requirements of the hydraulic system.

Maintenance: Regular inspection and maintenance are essential to ensure the continued reliability and performance of these valves. This includes checking for leaks, cleaning components, and replacing worn seals or parts.

Environmental Considerations: Valves designed for outdoor or harsh environments may require additional protection against dust, moisture, and temperature extremes to maintain reliable operation.

In summary, the Two-Position Two-Way Solenoid Directional Valve is a versatile and reliable component that plays a vital role in hydraulic systems across various industries. Its precise control, quick response, and compact design make it well-suited for a wide range of applications, contributing to enhanced performance and efficiency.
