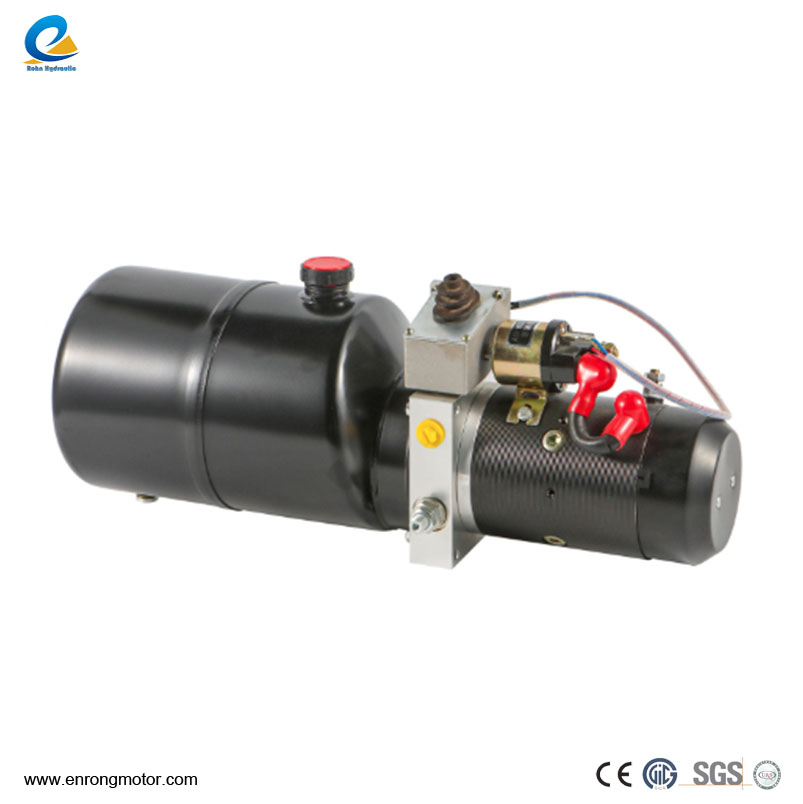

Power Unit for Semi-Electric Stackers

For over a decade, Changzhou Rohn Hydraulic has been a specialist in the hydraulic industry, focusing on Power Unit for Semi-Electric Stackers as both a manufacturer and trader. In recent years, our company has invested in a range of advanced equipment, including fully digital testing benches, lifespan testing benches, platform straightening machine testing benches, rear plate lifespan testing benches, CNC machining centers, grinders, milling machines, and sawing machines. Additionally, we have obtained ISO9001 and CE certifications.

We welcome OEM and ODM orders and cater to markets worldwide, including North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, East Asia, and Western Europe. Our closest ports are Ningbo, Shanghai, and Qingdao. With our export license, customers can confidently engage with us, whether selecting products from our catalog or seeking engineering assistance for specific applications. Our customer service center is always available to discuss your purchasing requirements. Feel free to reach out to us for a unique experience tailored to your needs.


The Power Unit for Semi-Electric Stackers, a product manufactured and traded by Changzhou Rohn Hydraulic, is a sophisticated component designed for various industrial applications. Below is a comprehensive overview covering its usage range, application scenarios, operational methods, product specifications, and general information.


Usage Range:

The Power Unit for Semi-Electric Stackers is primarily employed in material handling operations within warehouses, distribution centers, manufacturing facilities, and logistics environments. It facilitates the movement of goods and materials efficiently and safely, contributing to enhanced productivity and workflow management.


Application Scenarios:

Warehousing: Used for loading and unloading palletized goods, transporting materials within warehouses, and organizing storage spaces.

Distribution Centers: Utilized for order picking, replenishment, and staging operations to fulfill customer orders and manage inventory efficiently.

Manufacturing Facilities: Employed in assembly lines, production areas, and shipping docks to facilitate the movement of raw materials, work-in-progress items, and finished goods.

Logistics Operations: Integral for material handling tasks in transportation hubs, freight terminals, and cross-docking facilities, ensuring smooth flow and timely delivery of goods.


Operational Methods:

The Power Unit for Semi-Electric Stackers is operated through a combination of manual and electric functions:

Manual Control: Operators maneuver the pallet truck manually by pushing or pulling the handle, allowing for precise positioning and maneuverability in confined spaces.

Electric Assistance: The electric motor provides powered propulsion for transporting heavy loads over longer distances or on inclines, reducing operator fatigue and increasing efficiency.


Product Specifications:

Load Capacity: Typically ranges from 1,500 kg to 2,500 kg, suitable for handling various load sizes and weights.

Fork Length: Standard fork lengths vary between 1,000 mm to 1,200 mm, accommodating different pallet sizes and configurations.

Battery Capacity: Equipped with rechargeable batteries ranging from 24V to 48V, providing sufficient power for extended operational cycles.

Lift Height: Capable of lifting loads to heights ranging from 100 mm to 200 mm, enabling easy loading and unloading from pallets and shelves.

Control System: Features ergonomic handle controls with intuitive functions for easy operation and precise maneuvering.

Safety Features: Includes emergency stop buttons, horn signals, and automatic braking systems to ensure operator safety and prevent accidents.


Product Information:

The Power Unit for Semi-Electric Stackers combines robust construction, advanced technology, and user-friendly design to meet the demands of modern material handling applications. With its durable frame, reliable performance, and ergonomic features, it offers an ideal solution for streamlining operations and improving efficiency in diverse industrial settings.


In summary, the Power Unit for Semi-Electric Stackers from Changzhou Rohn Hydraulic represents a versatile and reliable solution for material handling tasks. With its innovative design, superior performance, and wide range of applications, it plays a crucial role in enhancing productivity and operational efficiency across various industries.

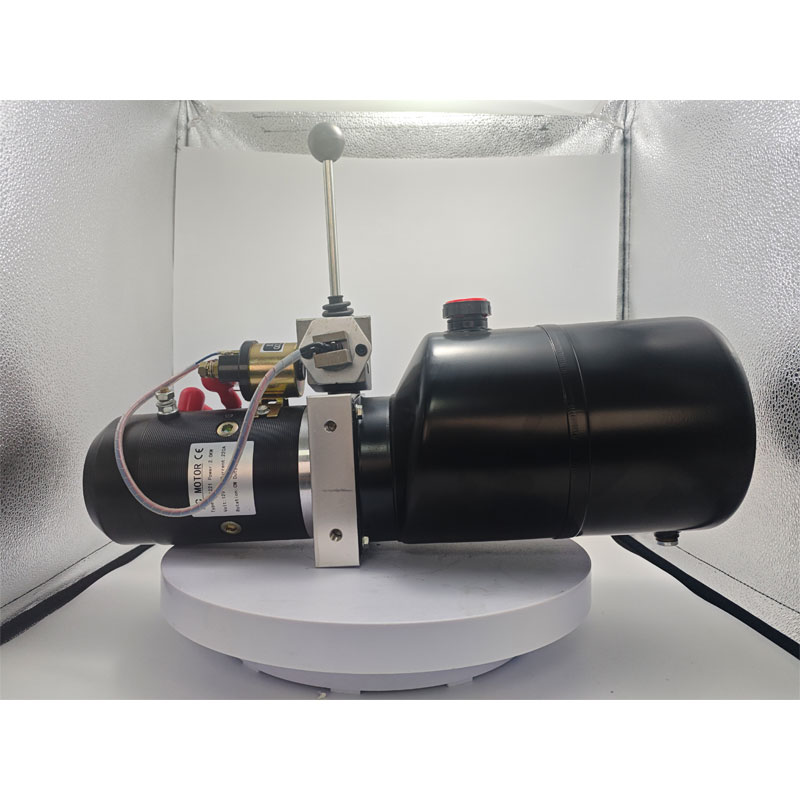

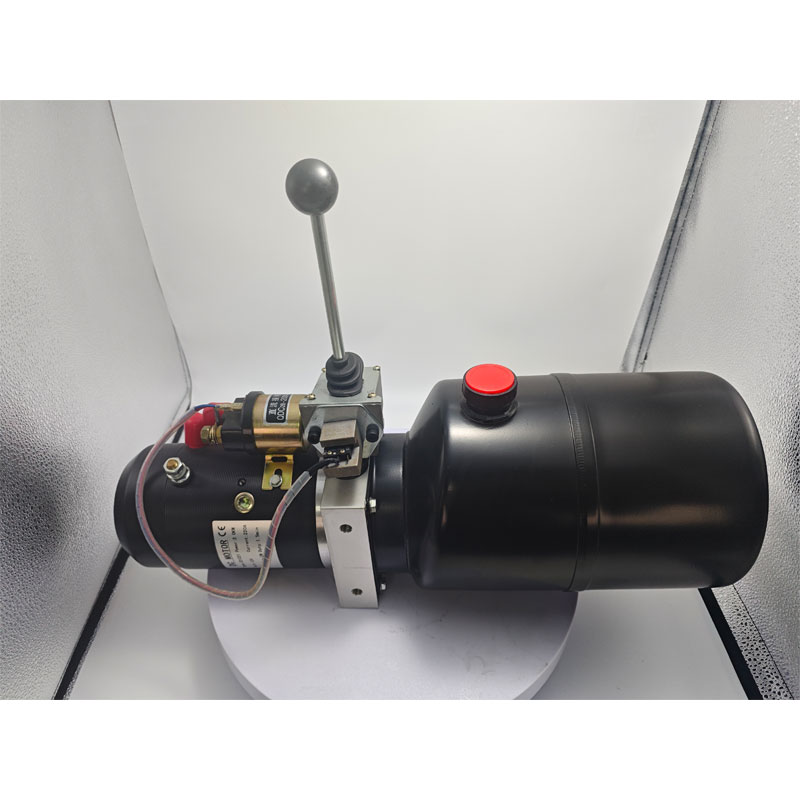

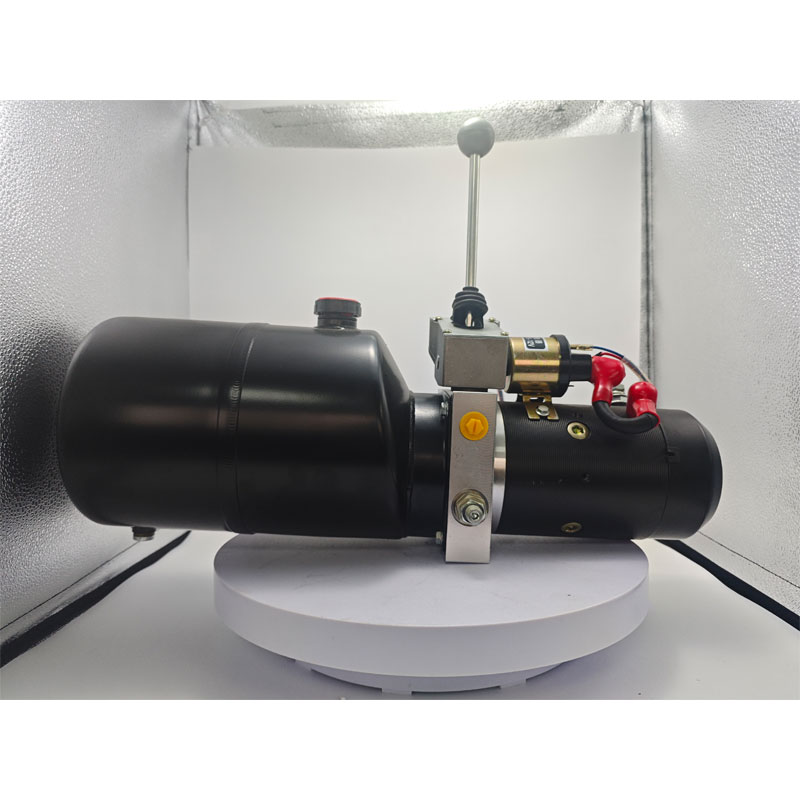

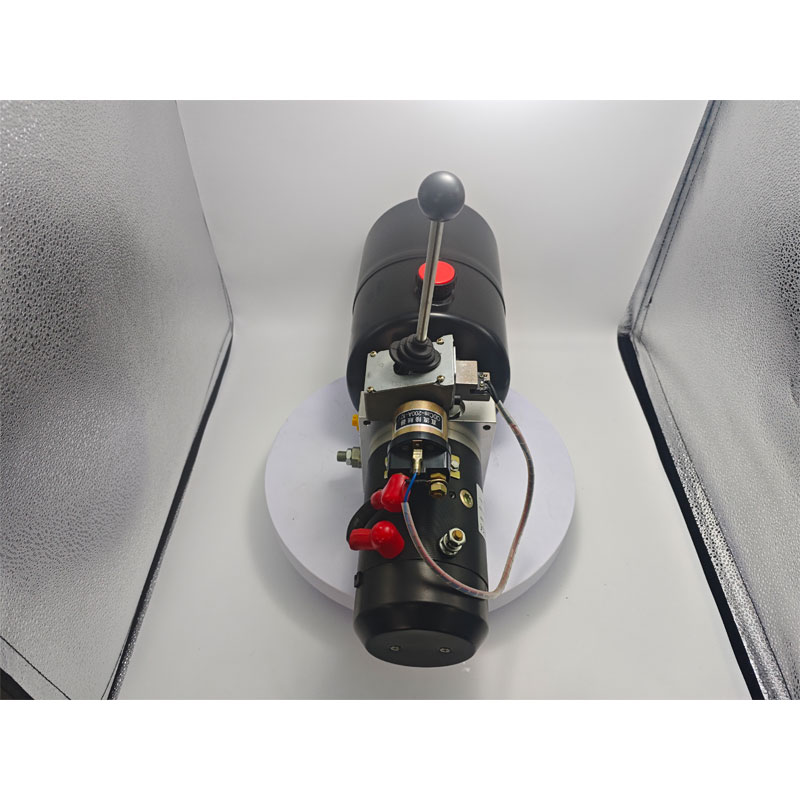

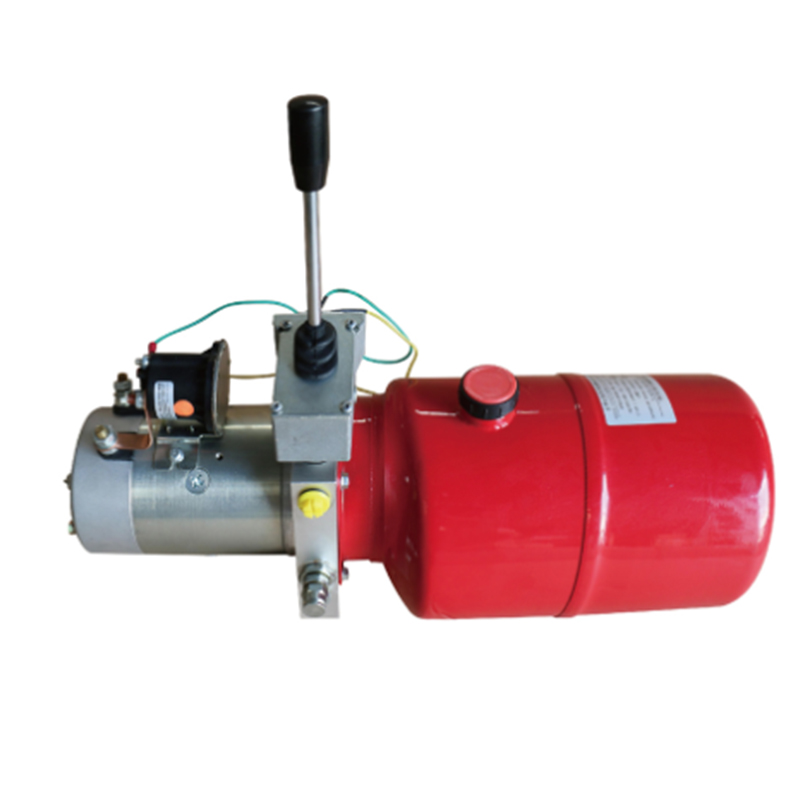

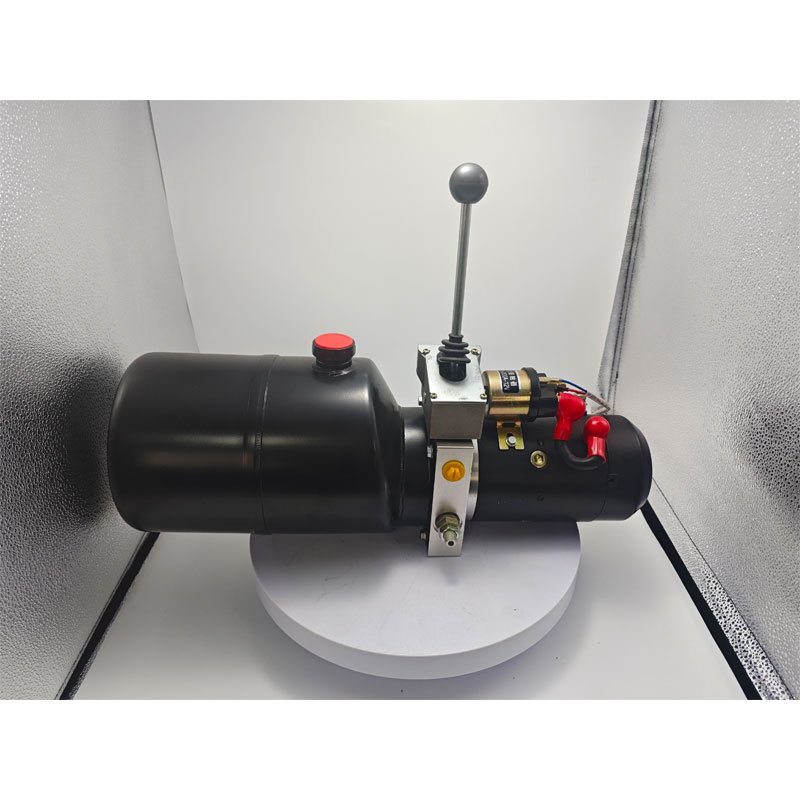

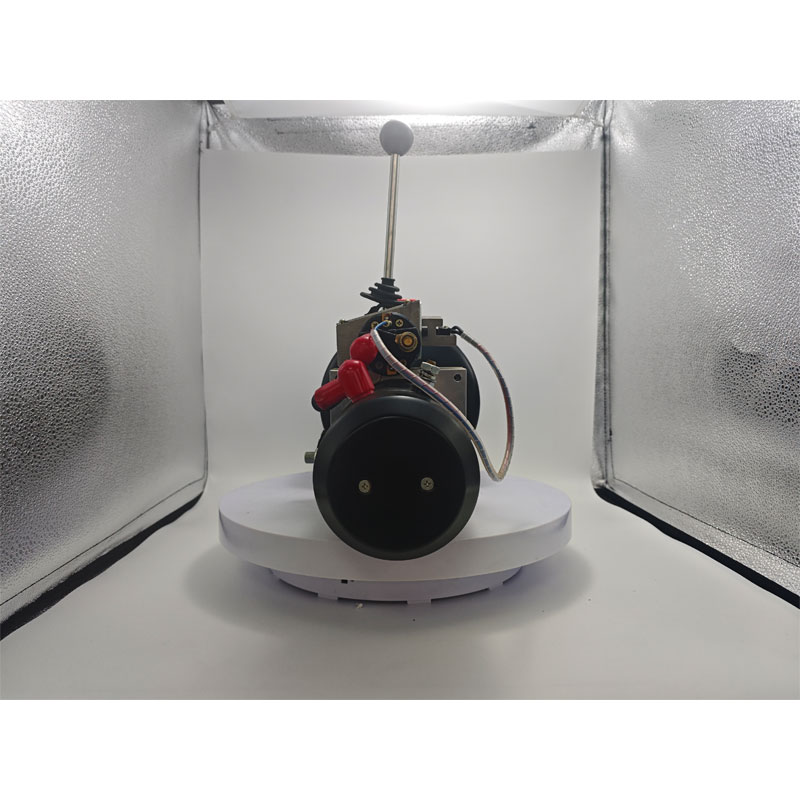

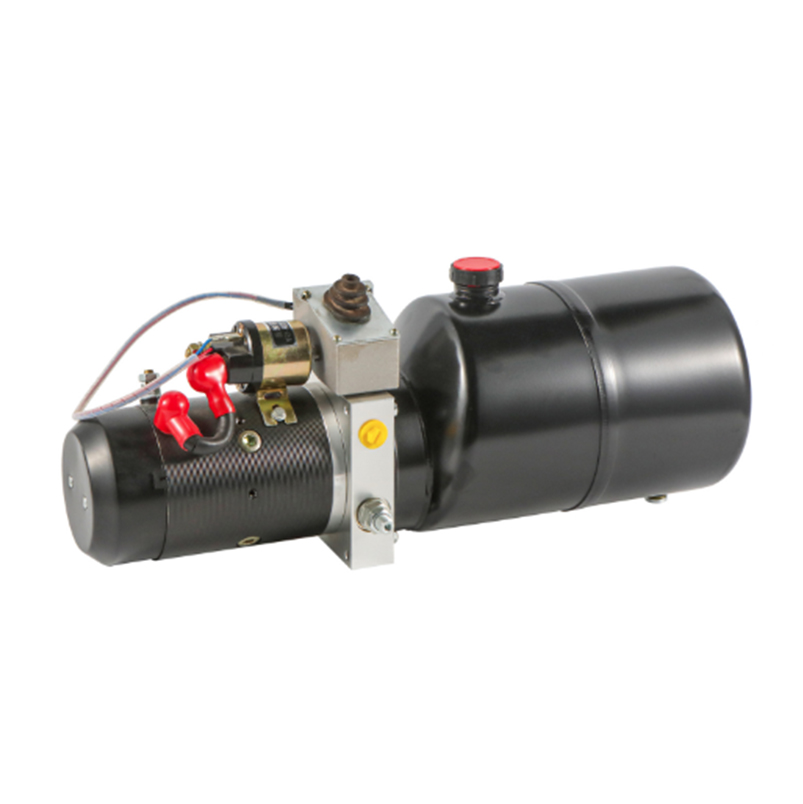

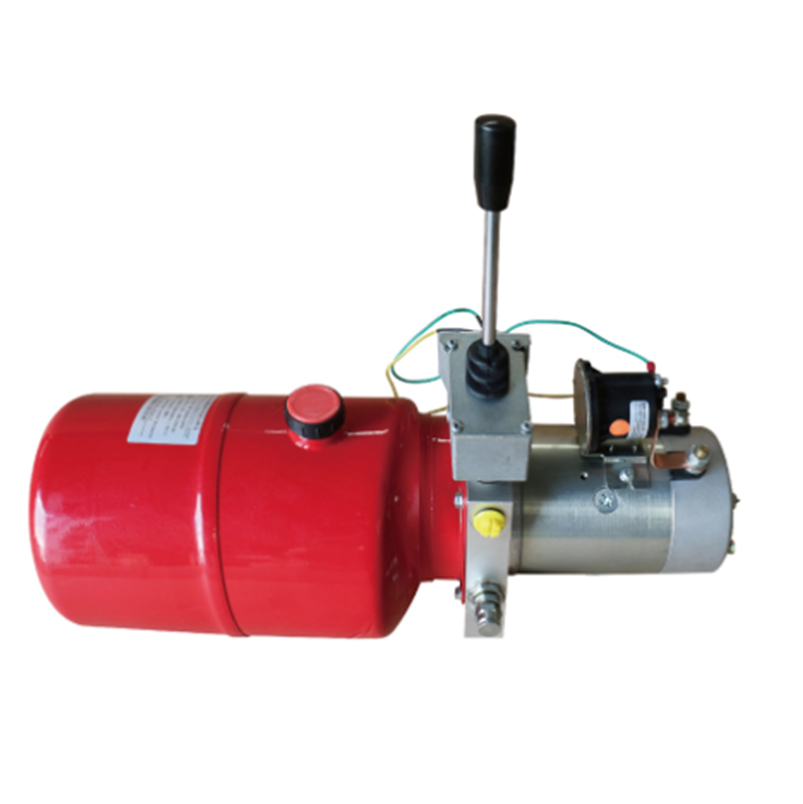

This power unit is specially designed for semi- electric stacker,The manual unloading valve is equipped with manual micro switch,The lifting and falling of the stacker are controlled by the handle of the unloading valve, and the falling speed is automatically controlled by the built-in pressure compensating throttle valve.

Outline Dimension

Hydraulic circuit optional 006


Model Specifications

Type Motor Pump
Displacement (cc/r)
Tank
Capacity
(L)
Pressure (MPa) Mounting Oil Port L(mm)
HPU1-06ADAHGSAFG(Y)E DC12V 1.6Kw 2500rpm 1.6 5 20 Lateral
Horizontal
RC3/8"
(Customize)
270
HPU1-06ADAHGSAFH(Y)E 1.6 6 300
HPU1-06BFAIGSAFH(Y)E DC24V 2.2Kw 2700rpm 2.1 6 300
HPU1-06BFAKGSAFJ(Y)E 2.6 8 370


Special Notes

1. For different flow rate pump, pressure and motor power, please check the ordering guidance.
2. This motor is based on gap working system S2=2 ~ 4min(continuous working time), so it cannot run continuously.
3. Before installation, the cylinder, oil pipe, joint and other hydraulic components must be cleaned and free from any impurities.
4. The viscosity of hydraulic oil should be 15- -68cst and should be clean and free of impurities.HM46 hydraulic oil is recommended.
5. This hydraulic power pack is suitable for horizontal installation.
6. Check that whether there is enough oil in the oil tank immediately after the first operating of the system.
7. The hydraulic oil should be replaced after the first 100 hours' use of the system, and change the oil every 3,000 hours after that.






This power unit is specially designed for semi- electric stacker,The manual unloading valve is equipped with manual micro switch,The lifting and falling of the stacker are controlled by the handle of the unloading valve, and the falling speed is automatically controlled by the built-in pressure compensating throttle valve.

Outline Dimension

Hydraulic circuit optional 006


Model Specifications

Type Motor Pump
Displacement (cc/r)
Tank
Capacity
(L)
Pressure (MPa) Mounting Oil Port L(mm)
HPU1-06ADAHGSAFG(Y)D DC12V 1.6Kw 2500rpm 1.6 5 20 Lateral
Horizontal
G3/8"
(Customize)
270
HPU1-06ADAHGSAFH(Y)D 1.6 6 300
HPU1-06BFAIGSAFH(Y)D DC24V 2.2Kw 2700rpm 2.1 6 300
HPU1-06BFAKGSAFJ(Y)D 2.6 8 370


Special Notes

1. For different flow rate pump, pressure and motor power, please check the ordering guidance.
2. This motor is based on gap working system S2=2 ~ 4min(continuous working time), so it cannot run continuously.
3. Before installation, the cylinder, oil pipe, joint and other hydraulic components must be cleaned and free from any impurities.
4. The viscosity of hydraulic oil should be 15-68cst and should be clean and free of impurities. HM46 hydraulic oil is recommended.
5. This hydraulic power pack is suitable for horizontal installation.
6. Check that whether there is enough oil in the oil tank immediately after the first operating of the system.
7. The hydraulic oil should be replaced after the first 100 hours' use of the system, and change the oil every 3,000 hours after that.
