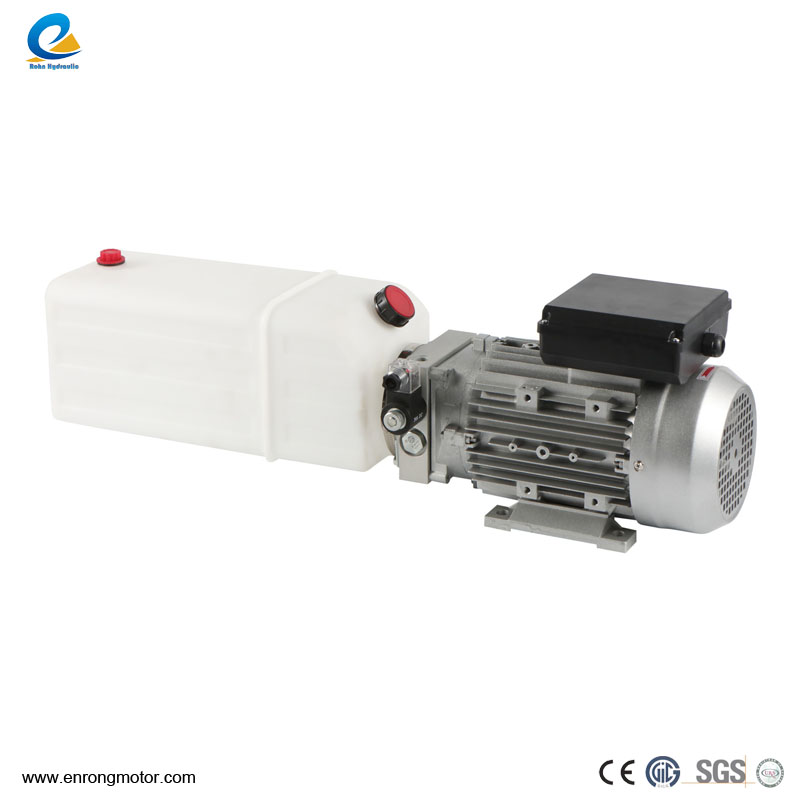

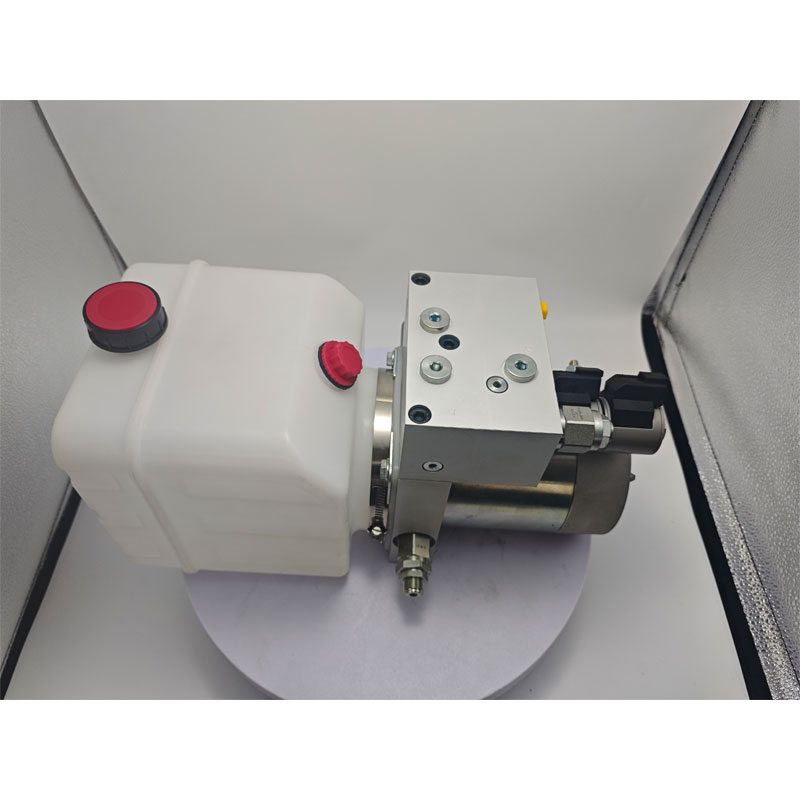

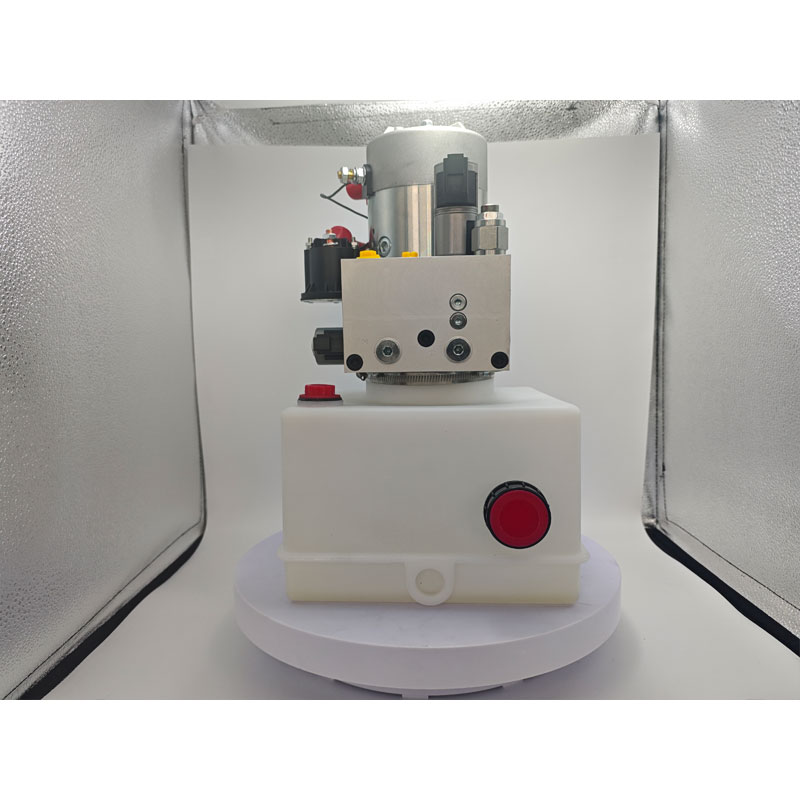

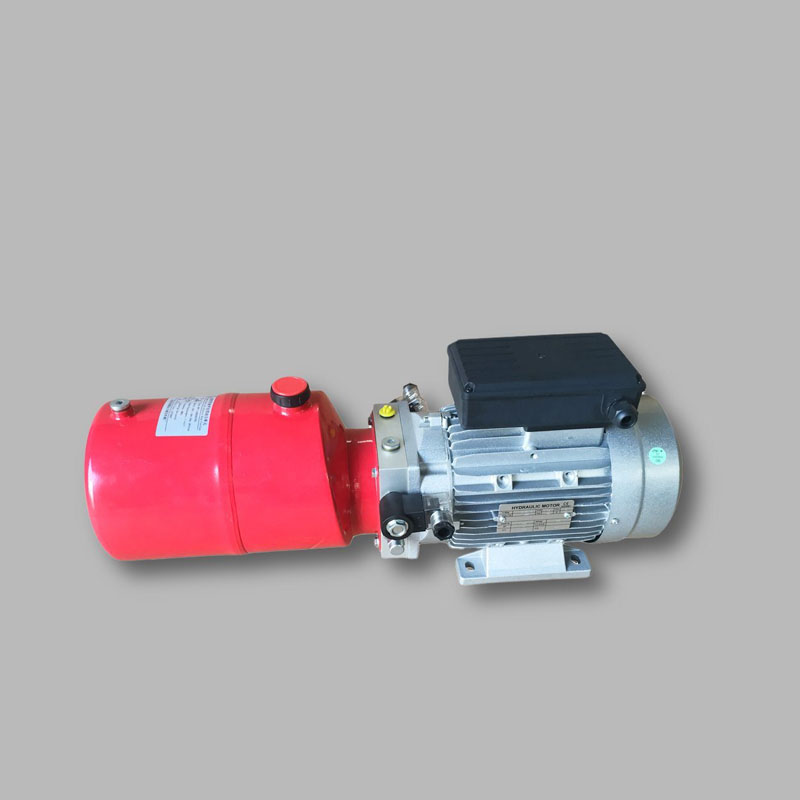

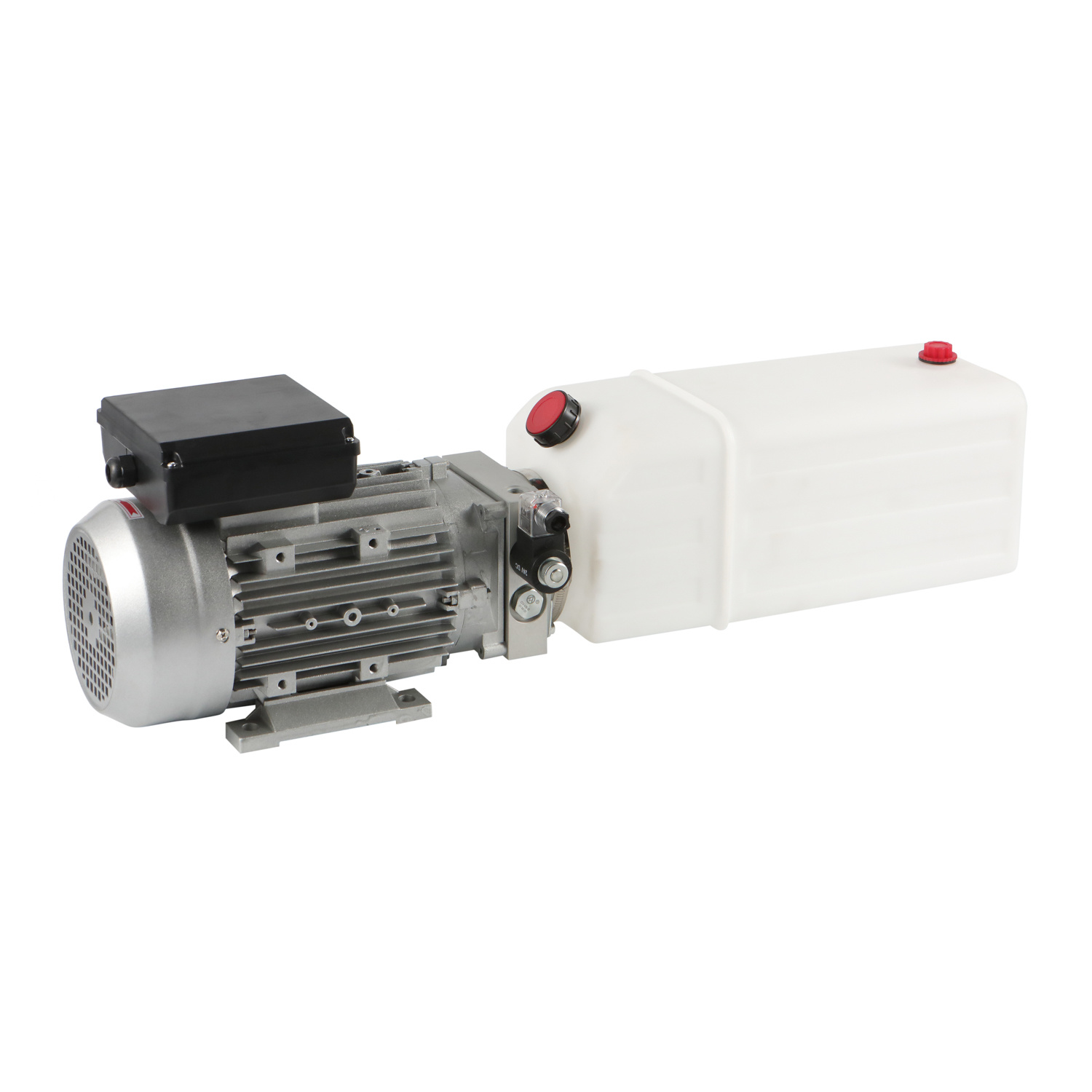

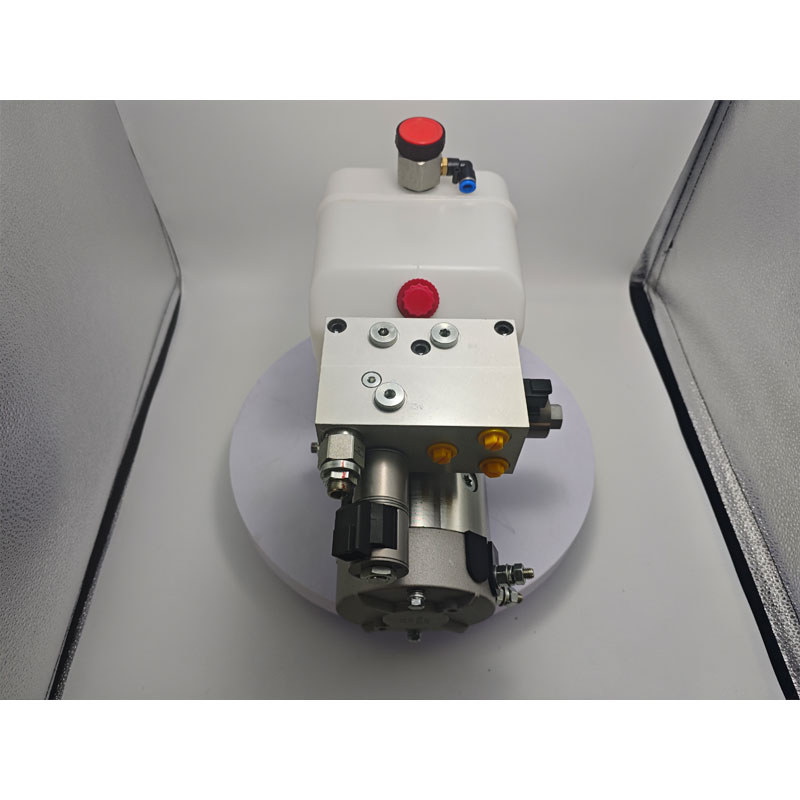

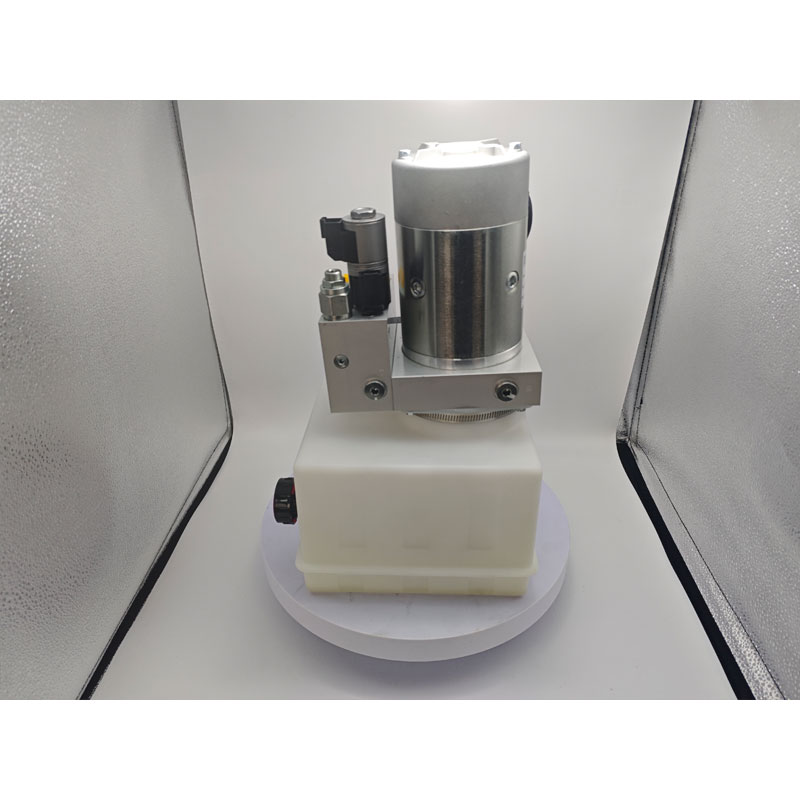

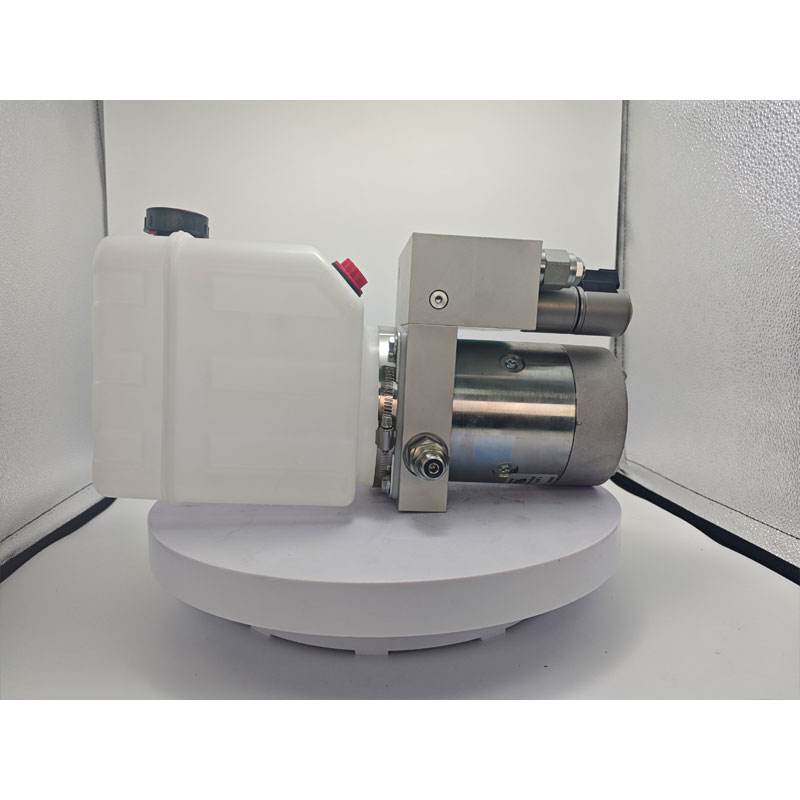

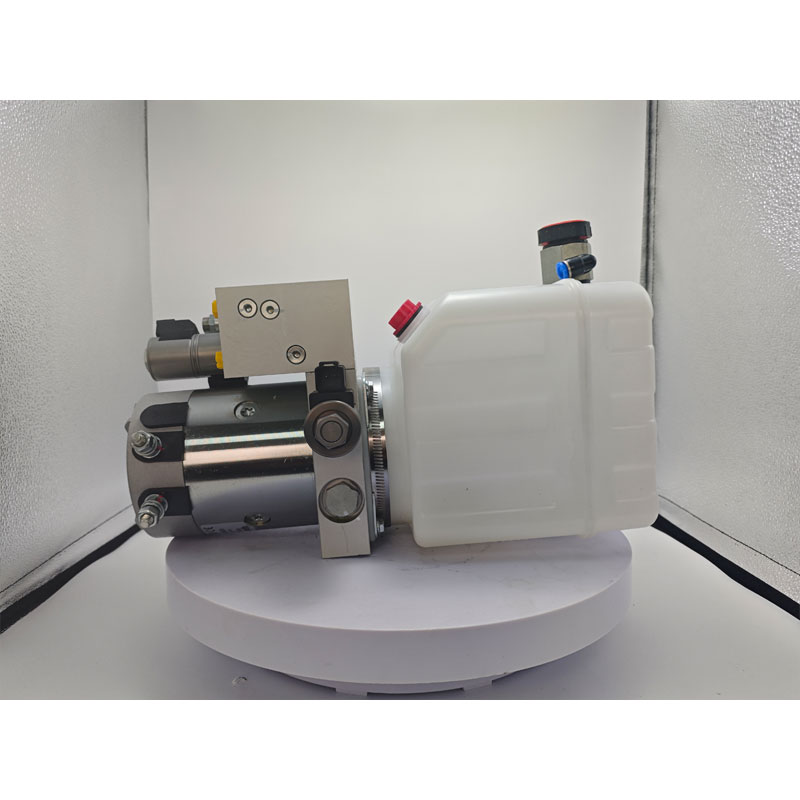

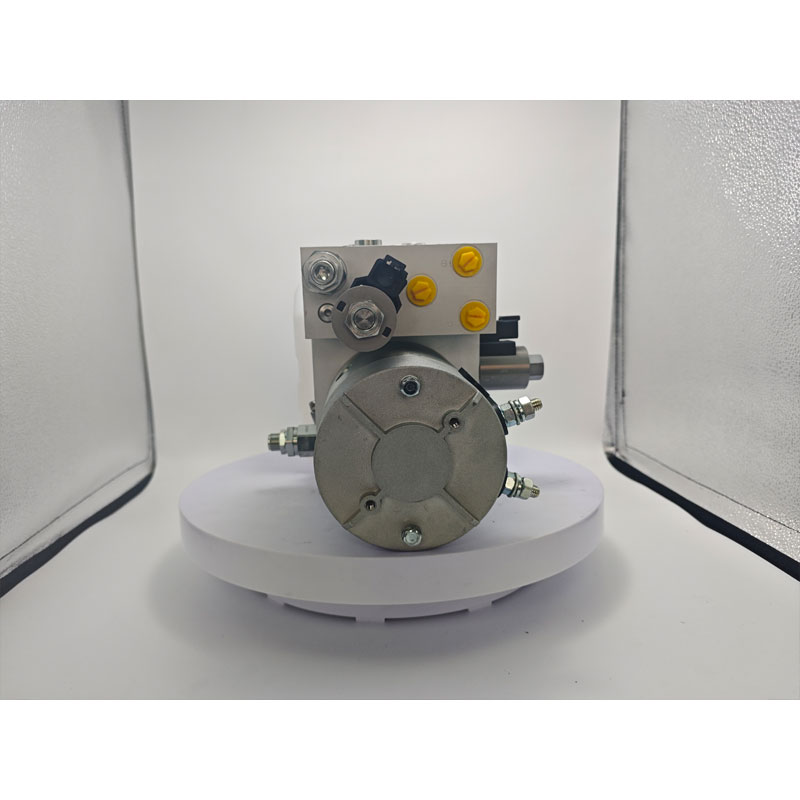

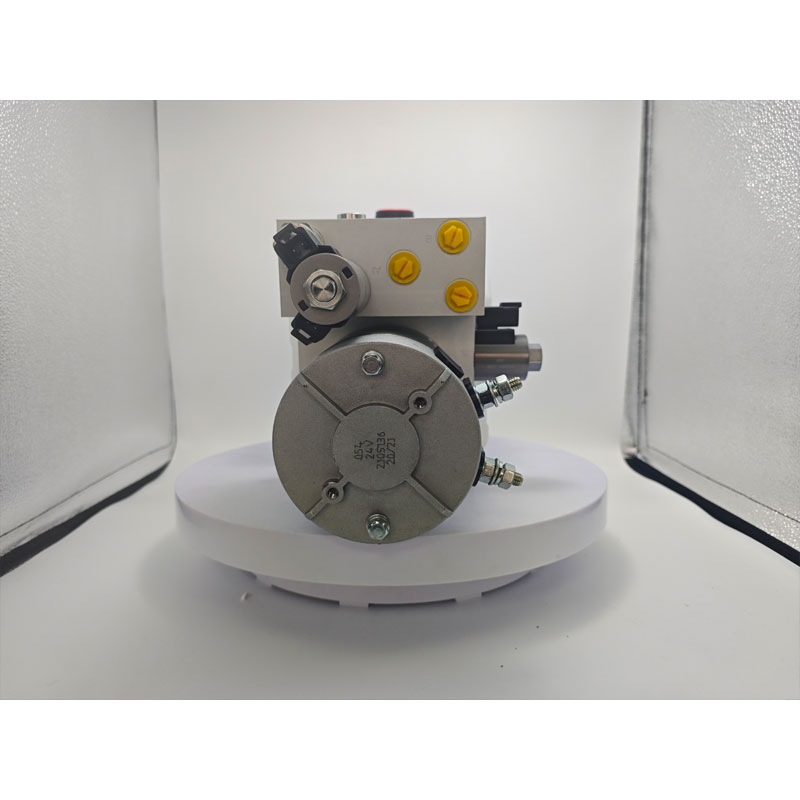

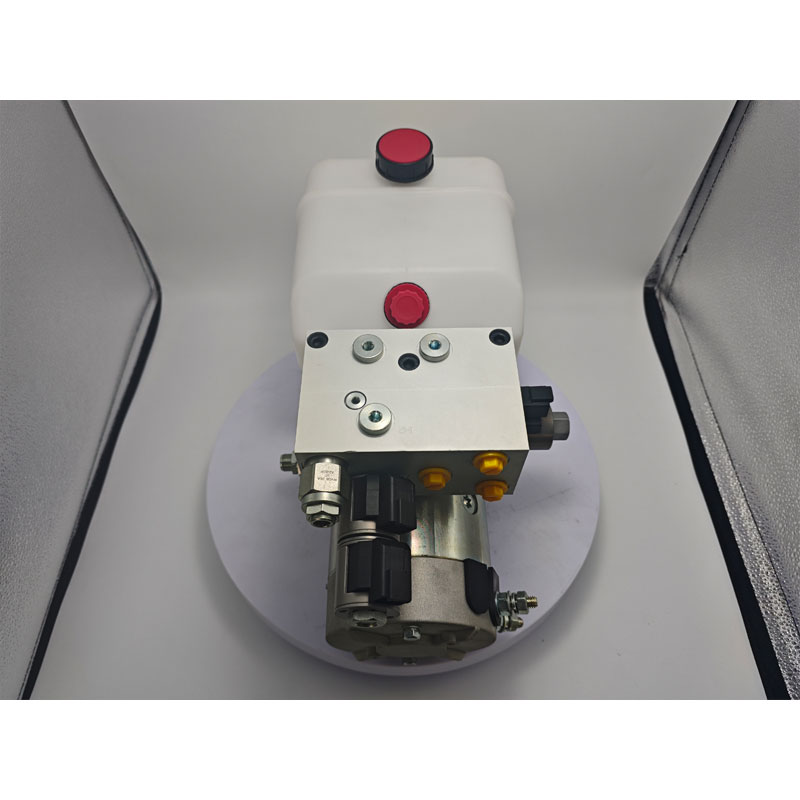

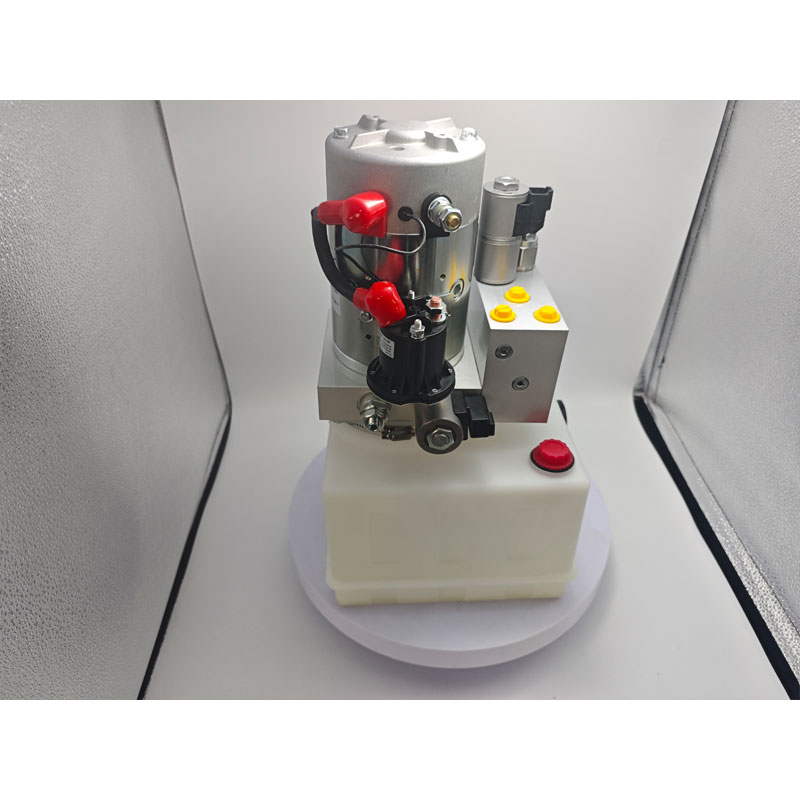

Rohn Hydraulicmanufacturer's Power Unit for Aerial Work Platforms is specially designed for aerialworking platform,providing lifting function for it.The doublesolenoid valve can make the motor drive without load. We provide OEM and ODM services.
Power Unit for Aerial Work Platforms are essential components that provide the necessary hydraulic power to operate aerial work platforms efficiently and safely. These units are designed with specific features tailored to the demanding requirements of aerial work applications, ensuring optimal performance, reliability, and safety. Let's delve into the description, characteristics, applications, and details of power units for aerial working platforms.
The Power Unit for Aerial Work Platforms typically consists of hydraulic pumps, motors, reservoirs, valves, filters, and other hydraulic components housed within a compact and robust enclosure. These units are engineered to deliver precise hydraulic pressure and flow to operate the lifting, lowering, and maneuvering mechanisms of power units for aerial working platforms.
Characteristics:
Compact Design: Power Unit for Aerial Work Platforms are designed to be space-efficient, allowing for easy integration into aerial work platform systems without occupying excessive space.
High Performance: They feature high-quality hydraulic components and precision engineering to deliver consistent and reliable performance in various operating conditions.
Safety Features: Built-in safety features such as pressure relief valves, emergency lowering systems, and overload protection ensure safe operation and protect against accidents.
Durability: Power units are constructed from durable materials capable of withstanding the rigors of frequent use and harsh working environments.
Low Maintenance: Designed for minimal maintenance requirements, these units offer long service life and reduced downtime, maximizing productivity.
Applications:

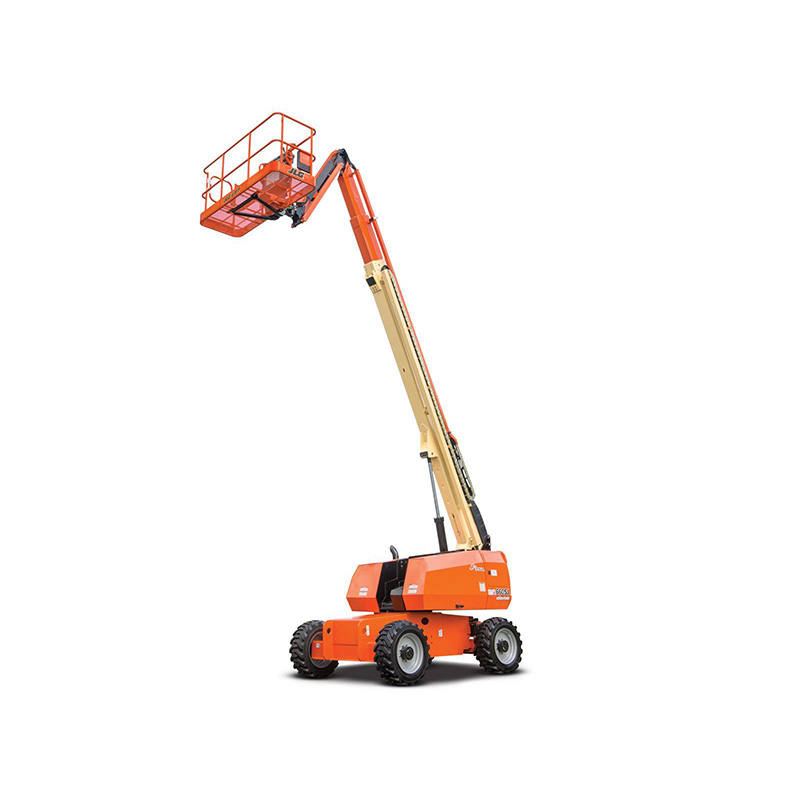

Power units for aerial working platforms find applications in various industries and environments where elevated access is required, including:
Construction sites: for tasks such as building maintenance, installation, and repair work.
Warehouses and logistics centers: for inventory management, picking, and shelving operations.
Manufacturing facilities: for equipment maintenance, assembly, and inspection.
Utility and telecommunications: for installation and maintenance of infrastructure such as power lines and communication towers.
Entertainment and event management: for stage and lighting setup, rigging, and maintenance.
Details:
Hydraulic Pumps and Motors: These components generate hydraulic power to drive the lifting and maneuvering mechanisms of the aerial work platform.
Reservoir: The reservoir stores hydraulic fluid and helps dissipate heat generated during operation, ensuring consistent performance.
Valves: Control valves regulate the flow and direction of hydraulic fluid, enabling precise control of platform movement.
Filters: Hydraulic filters remove contaminants from the fluid, preventing damage to hydraulic components and ensuring system reliability.
Control System: The control system includes switches, levers, and safety devices that allow operators to operate the aerial work platform safely and efficiently.
Emergency Lowering System: In the event of a power failure or system malfunction, an emergency lowering system allows for the safe descent of the platform.
Overload Protection: Sensors and limit switches detect excessive loads on the platform, automatically stopping operation to prevent accidents and equipment damage.
In summary, power units for aerial working platforms play a crucial role in enabling safe, efficient, and reliable operation of aerial work platforms across various industries. With their compact design, high performance, and safety features, these units are indispensable tools for tasks requiring elevated access and maneuverability.
This power unit is specially designed for aerialworking platform,providing it with lifting and descendingfunction,the quantitative pressure compensating throttlevalve can make the platform descend steady.
This power unit is specially designed for aerial
working platform, providing it with ltting and descending
function, the quantitative pressure compensating throttle
valve can make the plattorm descend steady.
Outline Dimension
Hydraulic circuit optional 089
Model Specifications
Type
Motor
Pump
Displacement (cc/r)
Tank
Capacity
(L)
Pressure
(MPa)
Mounting
Oil Port
HPU2-89GKDHEHCFF(Y)A
AC220V 0.75Kw 1440rpm 50Hz
1.6
4
18
Horizontal
G1/4”
Special Notes
1. For different flow rate pump, pressure and motor power, please check the
ordering guidance.
2. If you need manual oil discharge device for emergency , please specify
when ordering.
3. This power unit can not run continuously (1 min ON,9 min OFF), it can work
repeatedly.
4. Before installation, ensure that the hydraulic components such as the oil
cylinder,oil pipe and joints are clean and free from any impurities.
5. The viscosity of hydraulic oil should be 15- -68cst and should be clean and
free of impurities. HM46 hydraulic oil is recommended.
6. This hydraulic power unit is suitable for vertical installation.
7. Check that whether there is enough oil in the oil tank immediately after the
first operating of the system.
8. The hydraulic oil should be replaced after the first 100 hours' use of the
system, and change the oil every 3,000 hours after that.
This power unit is specially designed for aerial
working platform, providing liting function for it.The double
solenold valve can make the motor drive without load,
Outline Dimension
Hydraulic circuit optional 011
Model Specifications
Type
Motor
Pump
Displacement (cc/r)
Tank
Capacity
(L)
Pressure
(MPa)
Mounting
Oil Port
HPU1-11GMEFEHCFH(Y)A

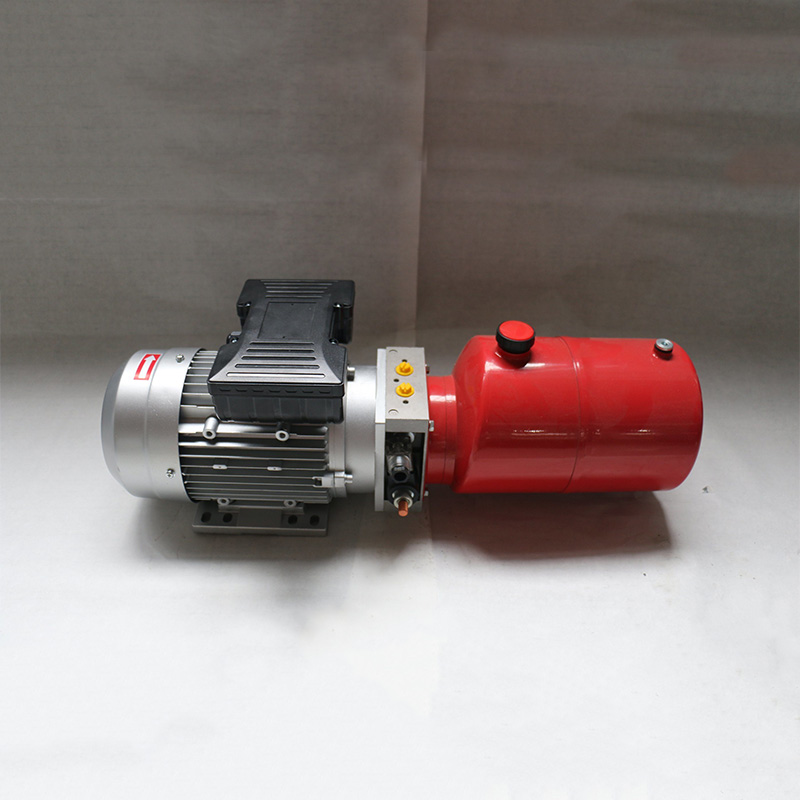

AC220V 1.5Kw 2850rpm 50Hz
1.1
6
18
Horizontal
G1/4”
Special Notes
1. For different flow rate pump, pressure and motor power, please check the
ordering guidance.
2. If you need manual oil discharge device for emergency , please specify
when ordering.
3. This power unit can not run continuously (1 min ON,9 min OFF), it can work
repeatedly.
4. Before installation, ensure that the hydraulic components such as the oil
cylinder,oil pipe and joints are clean and free from any impurities.
5. The viscosity of hydraulic oil should be 15- -68cst and should be clean and
free of impurities. HM46 hydraulic oil is recommended.
6. This hydraulic power unit is suitable for vertical installation.
7. Check that whether there is enough oil in the oil tank immediately after the
first operating of the system.
8. The hydraulic oil should be replaced after the first 100 hours' use of the
system, and change the oil every 3,000 hours after that.
