China Rohn Hydraulic's Power Unit for Tire Scraper is a critical component utilized in various industrial applications, offering versatility, reliability, and efficiency. Below is a comprehensive overview of its usage range, scenarios, operational methods, product parameters, and performance characteristics:
Usage Range:
The Power Unit for Tire Scraper finds extensive applications across industries where tire scrapers are employed. These industries include but are not limited to:
Mining: Used in large-scale mining operations for removing overburden materials, maintaining haul roads, and other earthmoving tasks.
Construction: Employed in construction sites for grading, leveling, and maintaining unpaved roads.
Agriculture: Utilized in agricultural operations for land preparation, terracing, and leveling fields.
Landfill Management: Deployed in landfills for compacting waste materials and creating access roads.
Usage Scenarios:
The Power Unit for Tire Scraper operates in diverse scenarios, including:
Rough Terrain: It is capable of functioning in challenging terrains, including rocky, muddy, and uneven surfaces.
High-Temperature Environments: Resistant to heat, it can operate efficiently in high-temperature environments common in mining and construction sites.
Heavy-Duty Applications: Designed for heavy-duty applications, it can withstand prolonged and demanding operational conditions.
Operational Methods:
The Power Unit for Tire Scraper operates in conjunction with tire scrapers, which are attached to heavy machinery such as bulldozers or graders. It functions by providing the necessary hydraulic power to maneuver the scraper blade, enabling efficient material removal and leveling.
Product Parameters:
Power Output: Typically rated in horsepower (HP) or kilowatts (kW), indicating the unit's capacity to generate hydraulic power.
Hydraulic Pressure: Measured in pounds per square inch (PSI) or bar, representing the pressure exerted by the hydraulic system.
Flow Rate: Expressed in gallons per minute (GPM) or liters per minute (LPM), indicating the volume of hydraulic fluid flowing through the system.
Operating Voltage: Specifies the electrical voltage required for powering the unit.
Dimensions: Includes length, width, and height measurements, ensuring compatibility with the machinery it integrates with.
Product Performance:
Efficiency: The Power Unit for Tire Scraper offers high operational efficiency, facilitating rapid material removal and leveling.
Reliability: Built with robust materials and advanced engineering, it delivers consistent performance even in harsh operating conditions.
Precision: Provides precise control over the scraper blade, allowing operators to achieve accurate grading and leveling results.
Durability: Designed to withstand heavy loads, abrasion, and impact, ensuring long-term reliability and minimal downtime.
In summary, the Power Unit for Tire Scraper is a versatile and reliable component essential for various industrial applications, offering superior performance, durability, and precision in material removal and leveling tasks.

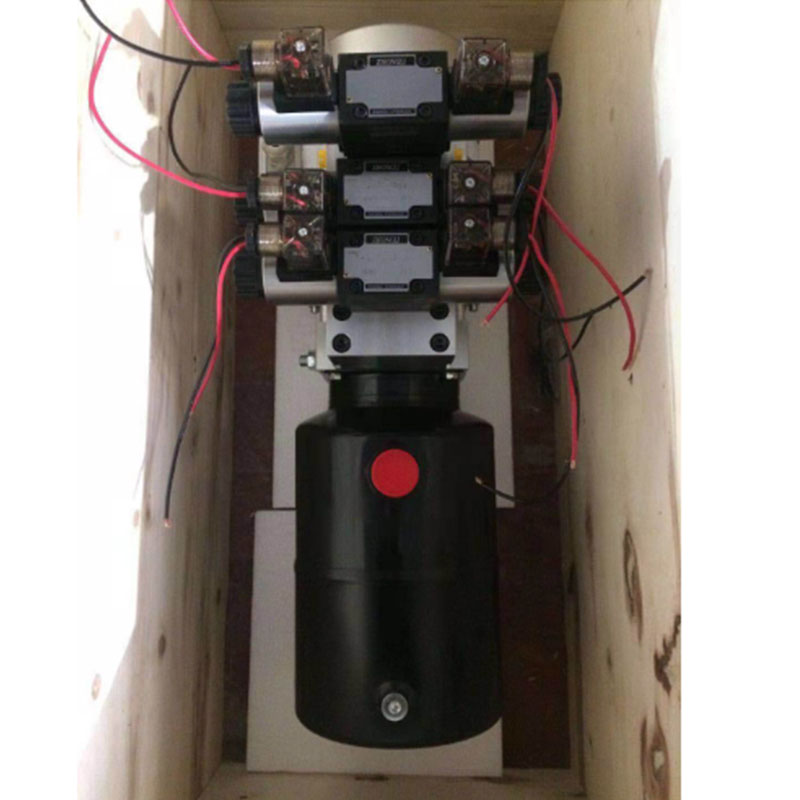

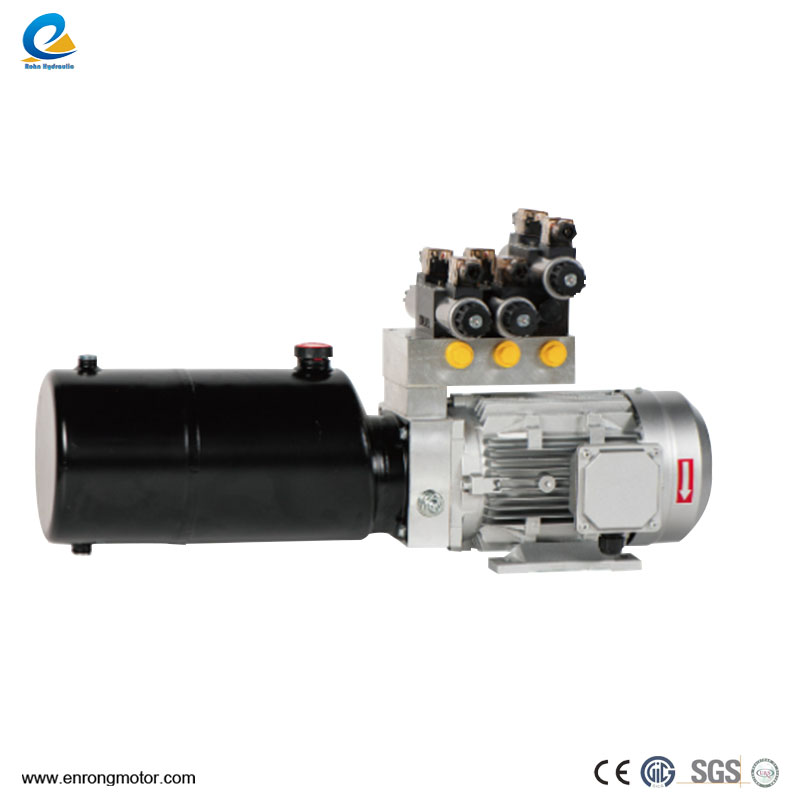

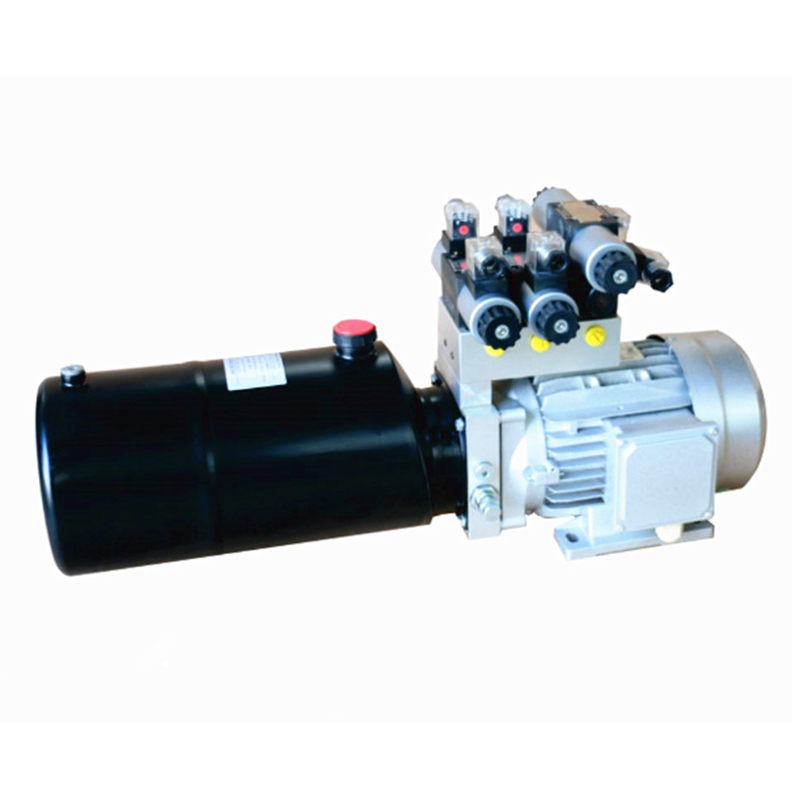

This hydraulic power unit is specially designed for tyre
changer, which controls several groups of double-acting
cylinders to work independently.
Outline Dimension
Hydraulic circuit optional 035
Model Specifications
| Type | Motor |
Pump Displacement(cc/r) |
Tank Capacity (L) |
Pressure (MPa) | Mounting | Oil Port |
| HPU1-35HMDKBHCFJ(Y)A | AC380V 1.5Kw1440rpm 50Hz | 2.6 | 8 | 18 | Horizontal | G1/4' |
| HPU1-35HODLBHCFJ(Y)A | AC380V 2.2Kw 1440rpm 50Hz | 3.2 | 20 |
Special Notes
1. For different flow rate pump, pressure and motor power, please check the
ordering guidance.
2. If you need manual oil discharge device for emergency , please specify
when ordering.
3. This power unit can not run continuously (1 min ON,9 min OFF), it can work
repeatedly.
4. Before installation, ensure that the hydraulic components such as the oil
cylinder,oil pipe and joints are clean and free from any impurities.
5. The viscosity of hydraulic oil should be 1 5- -68cst and should be clean and
free of impurities. HM46 hydraulic oil is recommended.
6. This hydraulic power unit is suitable for horizontal installation.
7. Check that whether there is enough oil in the oil tank immediately after the
first operating of the system.
8. The hydraulic oil should be replaced after the first 100 hours' use of the
system, and change the oil every 3,000 hours after that.
