Power Units for Car Lifts

Rohn Hydraulic's Power Units for Car Lifts offer superior performance, reliability, and safety for automotive lifting applications. With advanced features, robust construction, and versatile usage capabilities, these units are essential tools for automotive professionals seeking efficient and effective vehicle lifting solutions.With our export license, we warmly embrace both OEM and ODM orders.

Performance:

Rohn Hydraulic's Power Units for Car Lifts are engineered to deliver exceptional performance, providing reliable hydraulic power for lifting and lowering vehicles with ease. With robust construction and precise engineering, these units offer smooth and efficient operation, ensuring optimal performance in various lifting applications.


Key Features and Specifications:

Power Output: [Specify power output in horsepower or kilowatts]

Hydraulic Pressure: [Specify hydraulic pressure range]

Pump Flow Rate: [Specify pump flow rate]

Tank Capacity: [Specify tank capacity in liters or gallons]

Voltage: [Specify voltage requirement]

Motor Type: [Specify motor type]

Operating Temperature Range: [Specify operating temperature range]

Noise Level: [Specify noise level in decibels]

Safety Features: [Describe any safety features incorporated]

Usage Range:

Rohn Hydraulic's Power Units for Car Lifts are suitable for a wide range of automotive lifting applications, including:


Vehicle maintenance and repair workshops

Auto body shops

Car dealerships

Parking garages

Vehicle inspection centers

Usage Scenarios:

These power units are commonly used in scenarios such as:


Lifting vehicles for routine maintenance and servicing

Supporting vehicles during tire replacement or brake repairs

Facilitating vehicle inspections and diagnostics

Enabling efficient storage and organization of vehicles in parking facilities

Assisting in the assembly or disassembly of automotive components

Usage Guidelines:

To utilize our Power Units for Car Lifts effectively, follow these guidelines:


Ensure that the lift is on a stable and level surface before operation.

Inspect the lift and power unit for any signs of damage or wear before each use.

Use the appropriate lifting pads or adapters to support the vehicle securely.

Follow the manufacturer's instructions for operating the lift and power unit.

Avoid overloading the lift beyond its rated capacity.

Regularly inspect and maintain the power unit according to the recommended schedule.

Immediately discontinue use and address any issues or abnormalities observed during operation.


Conclusion:

In summary, Rohn Hydraulic's Power Units for Car Lifts offer superior performance, reliability, and safety for automotive lifting applications. With advanced features, robust construction, and versatile usage capabilities, these units are essential tools for automotive professionals seeking efficient and effective vehicle lifting solutions.

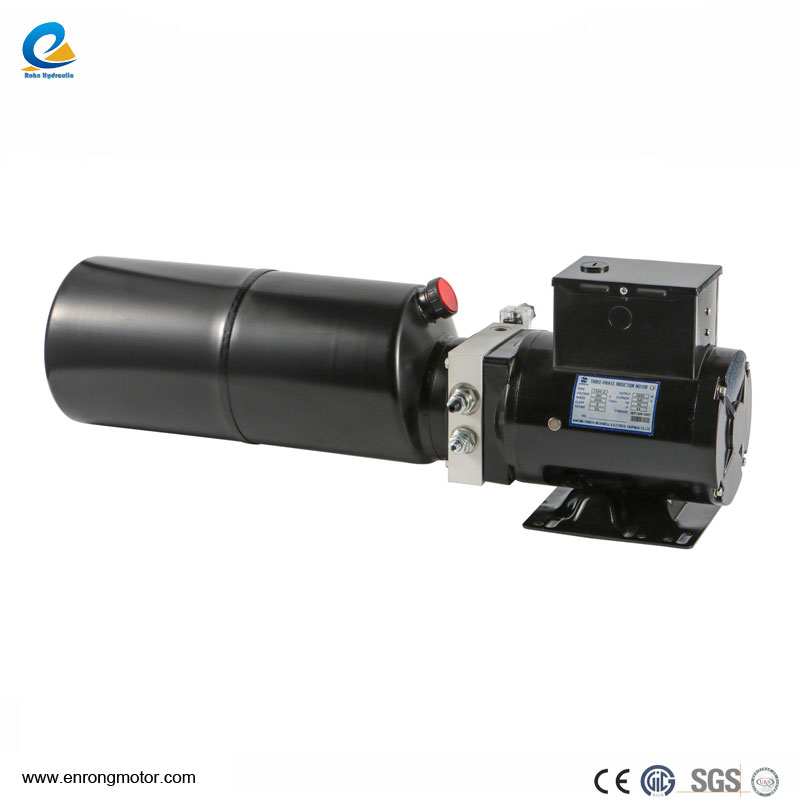

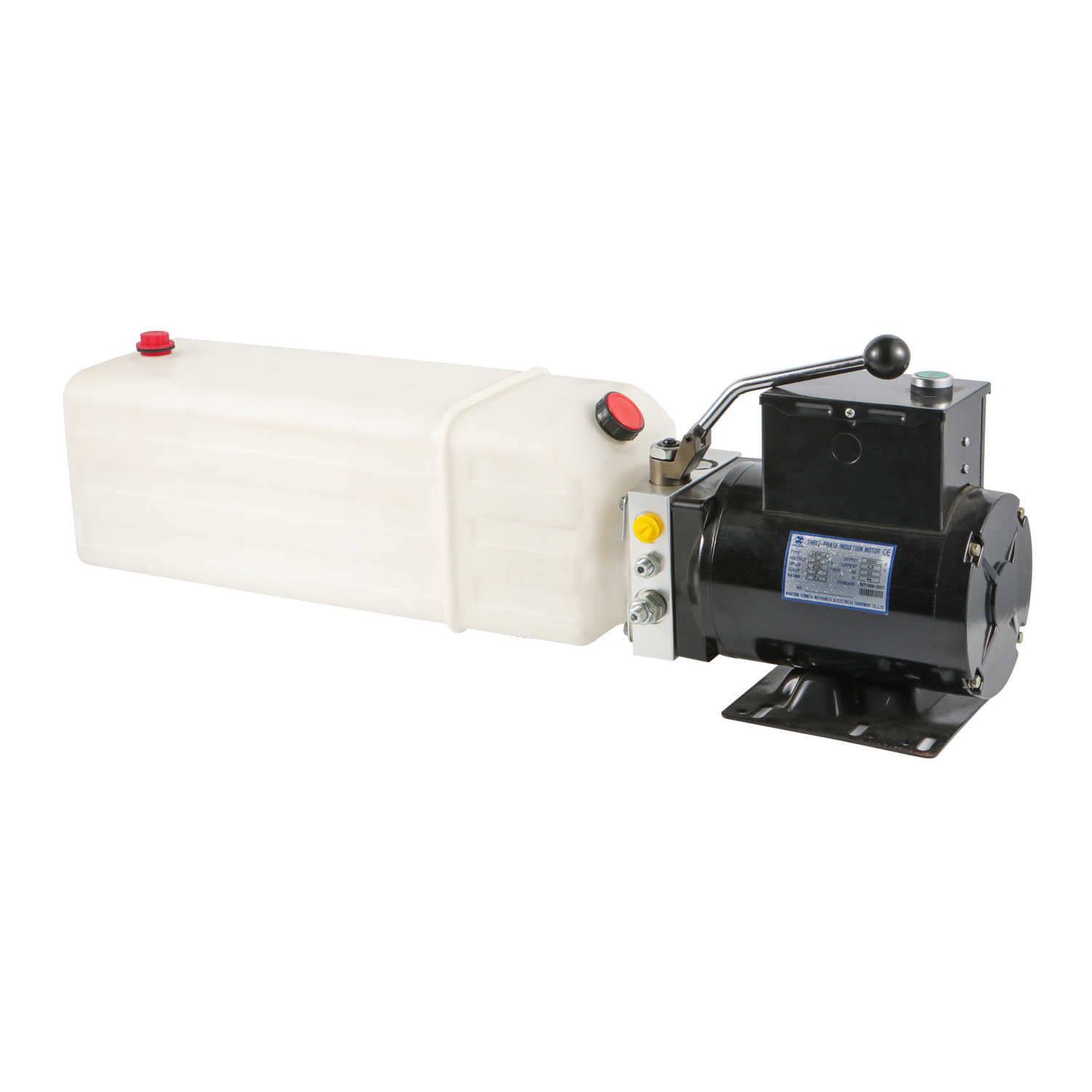

This hydraulic power unit is composed of high pressure gear pump,AC motor, multi-purpose integrated block, hydraulic valve, tank and other parts It provides liting function for two- post automobile lift.Manual unloading valve controls the descent and the descent speed can be adjusted.

Outline Dimension

Hydraulic circuit optional 003


Model Specifications

Type Motor Pump
Displacement (cc/r)
Tank
Capacity (L)
Pressure (MPa) Mounting Oil Port L(mm)
HPU1-04GOEIFVCFK(Y)E AC220V 2.2Kw 2850rpm 50Hz 2.1 10 18 Vertical RC3/8"
(CUSTOMIZE)
440
HPU1-04GOEKFVCEL(Y)E 2.6 12 16 545
HPU1-03HOEIFVCFK(Y)E AC380V 2.2Kw 2850rpm 50Hz 2.1 10 18 440
HPU1-03HOEKFVCEL(Y)E 2.6 12 16 545


Special Notes

1. For different flow rate pump, pressure and motor power, please check the ordering guidance.
2. This power unit can not run continuously (1 min ON,9 min OFF), it can work repeatedly.
3. Before installation, ensure that the hydraulic components such as the oil cylinder,oil pipe and joints are clean and free from any impurities.
4. The viscosity of hydraulic oil should be 15- -68cst and should be clean and free of impurities.HM46 hydraulic oil is recommended.
5. This hydraulic power unit is suitable for vertical installation.
6. Check that whether there is enough oil in the oil tank immediately after the first operating of the system.
7. The hydraulic oil should be replaced after the first 100 hours' use of the system, and change the oil every 3,000 hours after that.

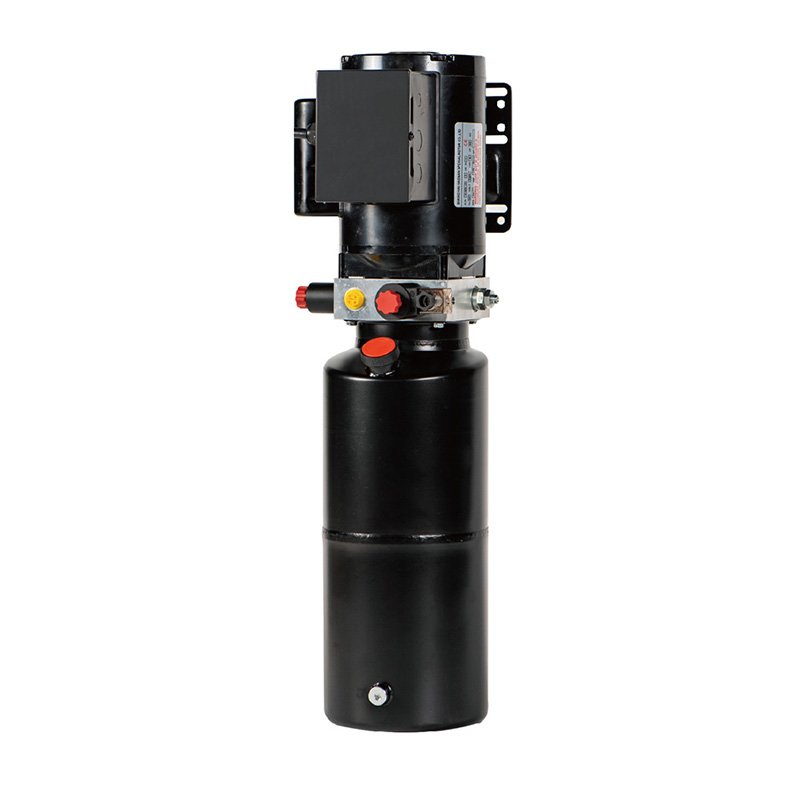

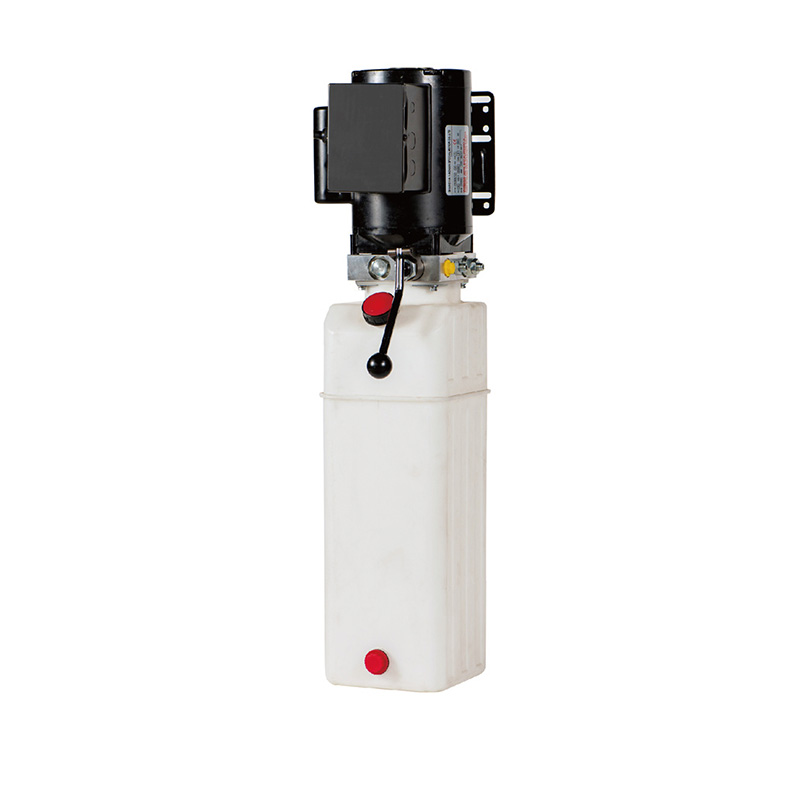

This power unit is designed exclusively for Auto hoist,with power up,gravity down function.Start the motor to lift the machine,the lowering movement is controlled by the solenoid release valves. Each solenoid valve provides a seperate lowering speed.

Outline Dimension

Hydraulic circuit optional 100


Model Specifications

Type Motor Pump
Displacement (cc/r)
Tank
Capacity (L)
Pressure
(MPa)
Mounting Oil Port L(mm)
HPU1-100GOEIBVCFK(Y)E AC220V 2.2Kw 2850rpm 50Hz 2.1 10 18 Vertical G3/8"
(CUSTOMIZE)
440
HPU1-100GOEKBVCEL(Y)E 2.6 12 1B
lU
545
HPU1-100HOEIBVCFK(Y)E AC380V 2.2Kw 2850rpm 50Hz 2.1 10 20 440
HPU1-100HOEKBVCEL(Y)E 2.6 12 1G
1U
545


Special Notes

1. For different flow rate pump, pressure and motor power, please check the ordering guidance.
2. If you need manual oil discharge device for emergency , please specify when ordering.
3. This power unit can not run continuously (1 min ON,9 min OFF), it can work repeatedly.
4. Before installation, ensure that the hydraulic components such as the oil cylinder,oil pipe and joints are clean and free from any impurities.
5. The viscosity of hydraulic oil should be 15- -68cst and should be clean and free of impurities.HM46 hydraulic oil is recommended.
6. This hydraulic power unit is suitable for vertical installation.
7. Check that whether there is enough oil in the oil tank immediately after the first operating of the system.
8. The hydraulic oil should be replaced after the first 100 hours' use of the system, and change the oil every 3,000 hours after that.
