Tail Plate Power Units for Car

Rohn Hydraulic factory, has been a prominent player in the hydraulic industry for more than ten years. Our core expertise lies in the production and distribution of Tail Plate Power Units for Cars, reflecting our unwavering commitment to stringent quality standards and attentive customer support.

At Rohn Hydraulic, integrity and excellence serve as the cornerstones of our manufacturing ethos. Through continuous investments in technological innovations, we endeavor to develop cutting-edge products that align with the evolving needs of emerging markets. Upholding principles of transparency and quality, we remain steadfast in our pursuit of broadening our horizons and ensuring sustainable growth.


Rohn Hydraulic's Tail Plate Power Units for Car is a crucial component used in vehicle lifting systems, specifically designed to facilitate the raising and lowering of tail plates or tailgates of cars and other vehicles. Below is a detailed overview of its parameters, performance, usage methods, scope, and scenarios:


Product Parameters:

Power Output: Tail Plate Power Units typically have power outputs ranging from 1.5 kW to 5 kW, depending on the size and weight capacity of the vehicles they are intended to lift.

Voltage: The standard voltage for these units is usually 12V or 24V, although variations may exist based on specific requirements.

Pressure Rating: Hydraulic systems within the power unit operate within pressure ranges of 1500 psi to 3000 psi, ensuring efficient lifting capabilities.

Weight Capacity: The weight capacity of Tail Plate Power Units varies, with options available to support vehicles weighing from 1000 kg to 5000 kg or more.

Dimensions: Units come in various dimensions to accommodate different vehicle sizes and configurations, with compact designs for space optimization.


Product Performance:

Efficiency: Tail Plate Power Units are engineered for high efficiency, offering smooth and reliable operation during the lifting and lowering of tail plates.

Durability: Built with robust materials and components, these units exhibit excellent durability and resistance to wear and tear, ensuring long-term performance.

Safety: Equipped with safety features such as overload protection and emergency stop mechanisms, ensuring safe operation and preventing accidents.

Noise Level: Tail Plate Power Units operate with minimal noise levels, contributing to a comfortable working environment in automotive repair facilities or car garages.


Product Usage Methods:

Manual Controls: Some Tail Plate Power Units feature manual controls such as push-button switches or levers for raising and lowering tail plates.

Remote Controls: Advanced units may come with remote control capabilities, allowing operators to raise or lower tail plates from a distance, enhancing convenience and efficiency.

Integration with Lift Systems: These power units are seamlessly integrated with vehicle lift systems, either as standalone units or as part of larger hydraulic systems.


Product Usage Scope:

Automotive Repair Workshops: Tail Plate Power Units are indispensable equipment in automotive repair workshops, used for lifting vehicles during maintenance, repair, or inspection tasks.

Vehicle Manufacturing Facilities: In manufacturing plants, these units are integrated into assembly lines for positioning and handling vehicles during production processes.

Car Dealerships: Car dealerships utilize Tail Plate Power Units for vehicle maintenance and servicing, ensuring efficient operations in their service centers.


Product Usage Scenarios:

Routine Maintenance: During routine maintenance procedures such as oil changes or tire replacements, mechanics use Tail Plate Power Units to elevate vehicles for easy access to undercarriage components.

Body Repair: In body repair workshops, technicians use these units to lift vehicles to a comfortable working height for repairing damaged body panels or conducting paintwork.

Wheel Alignment: For wheel alignment services, Tail Plate Power Units are employed to elevate vehicles and provide adequate clearance for adjusting wheel angles and alignments.

In summary, Tail Plate Power Units for Car are essential components in vehicle lifting systems, offering efficient and reliable lifting capabilities for various automotive applications. With their robust construction, advanced features, and versatility, they contribute significantly to the productivity and safety of automotive repair and manufacturing operations.

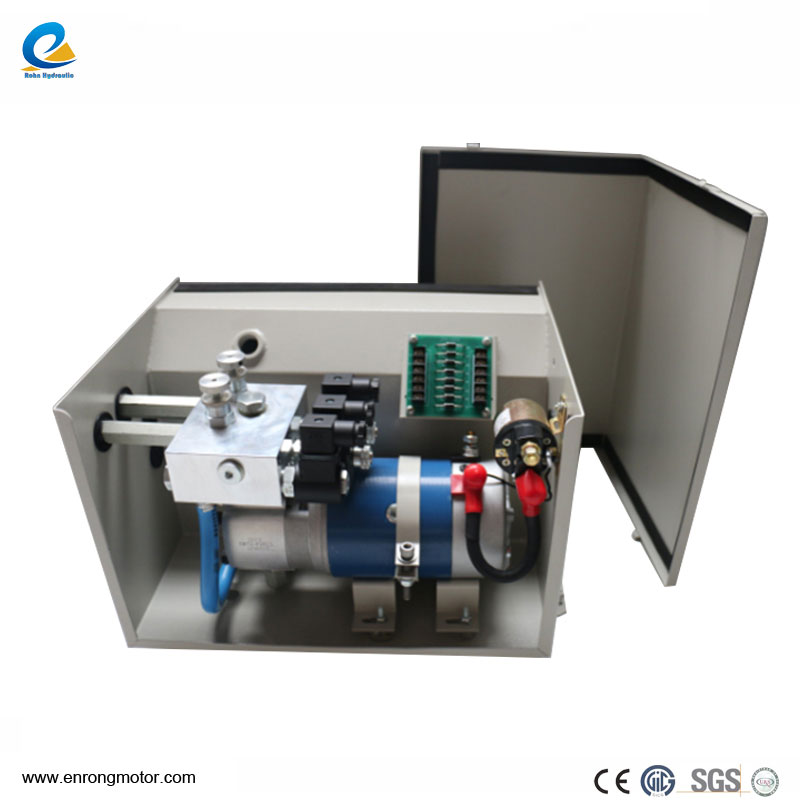

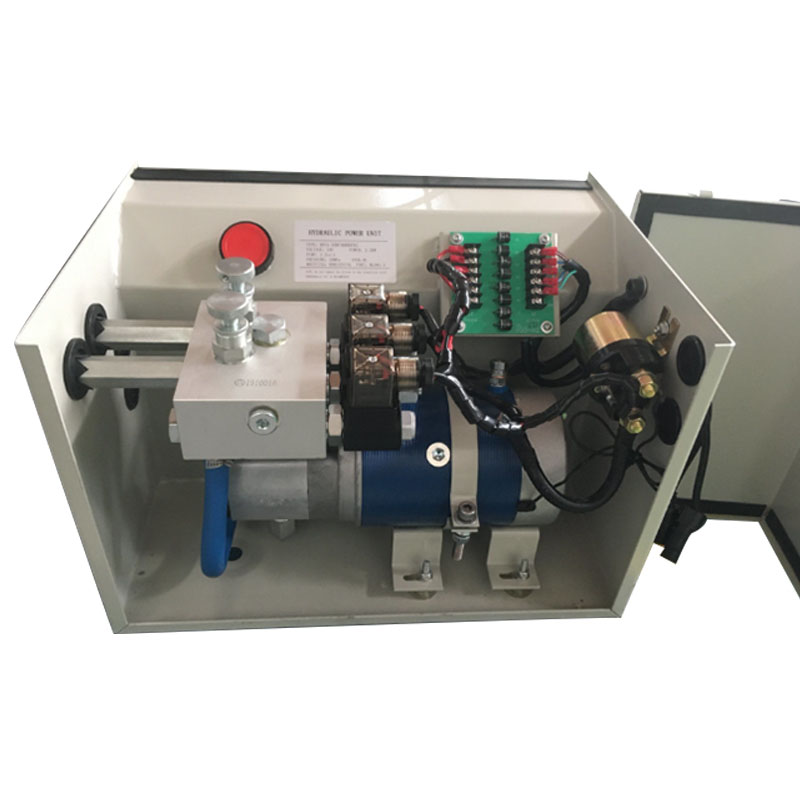

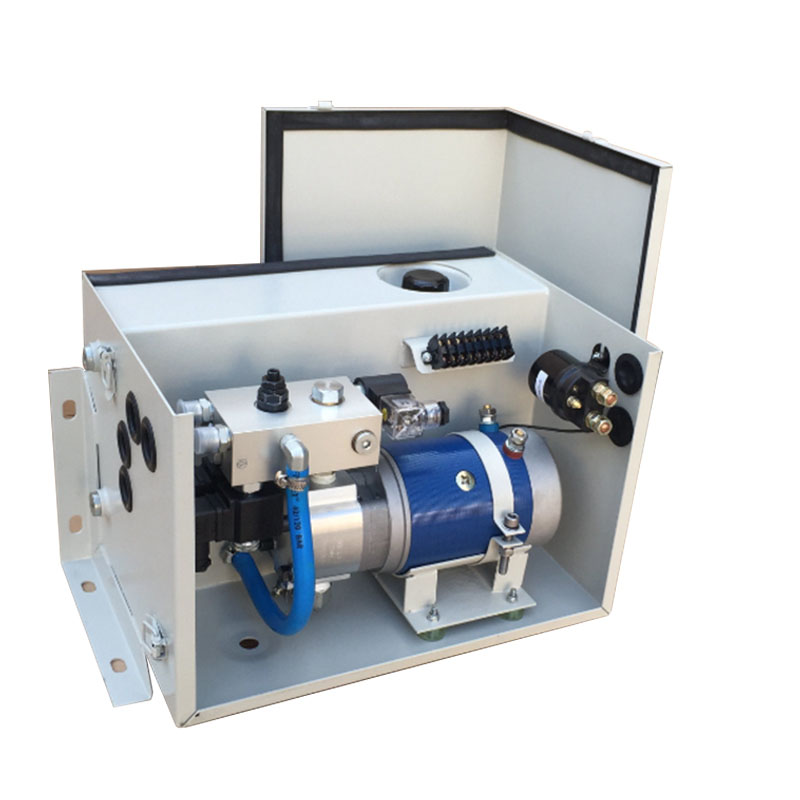

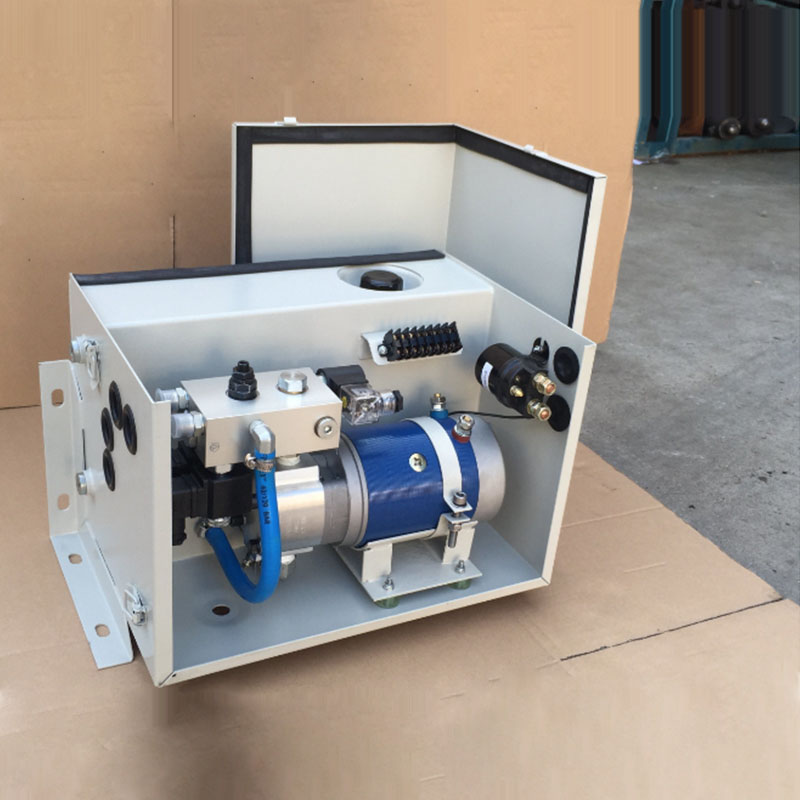

The hydraulic power unit adopts a closed structure,which is used for the turning and lifting control of the tailgate of the truck.The expansion and descending speed are controlled by one -way throttle valve.

Outline Dimension

Hydraulic circuit optional 030


Model Specifications

Type Motor Pump
Displacement (cc/r)
Tank
Capacity
(L)
Pressure (MPa) Mounting Oil Port
HPU1-30AEAHAHDFKG DC12V 2.0Kw 2500rpm 1.7 9 20 Horizontal M14x1.5
(Customize)
HPU1-30BFAKBHDFKG DC24V 2.2Kw 2700rpm 2.5


Special Notes

1. For different flow rate pump, pressure and motor power, please check the ordering guidance.
2. This motor is based on gap working system S2=2 ~ 4min(continuous working time), so it cannot run continuously.
3. Before installation, the cylinder, oil pipe, joint and other hydraulic components must be cleaned and free from any impurities.
4. The viscosity of hydraulic oil should be 15- -68cst and should be clean and free of impurities. HM46 hydraulic oil is recommended.
5. If you need manual oil discharge device for emergency , please specify when ordering.
6. Check that whether there is enough oil in the oil tank immediately after the first operating of the system.
7. The hydraulic oil should be replaced after the first 100 hours' use of the system, and change the oil every 3,000 hours after that.

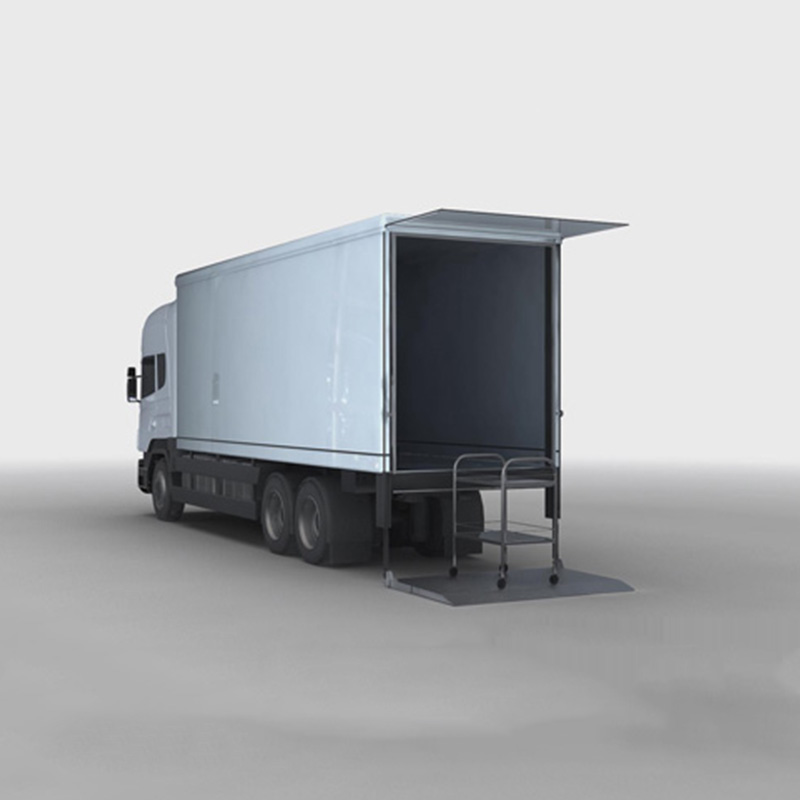

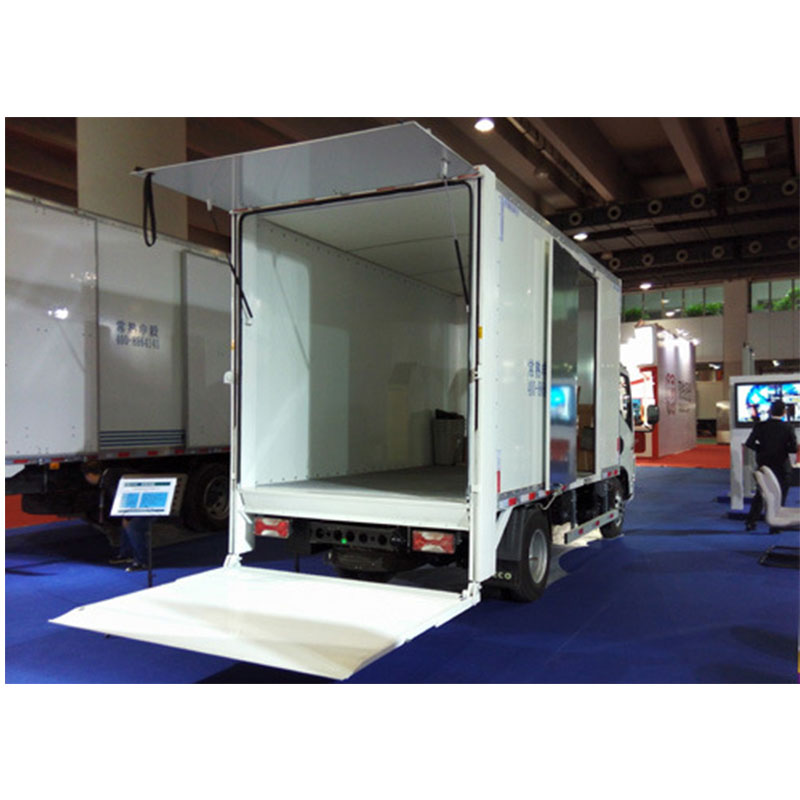

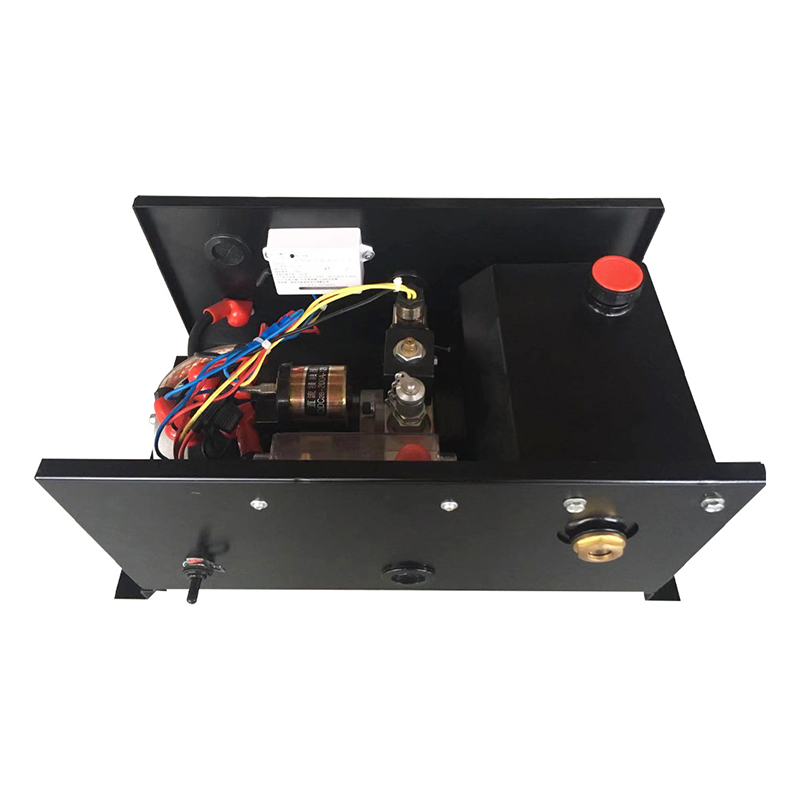

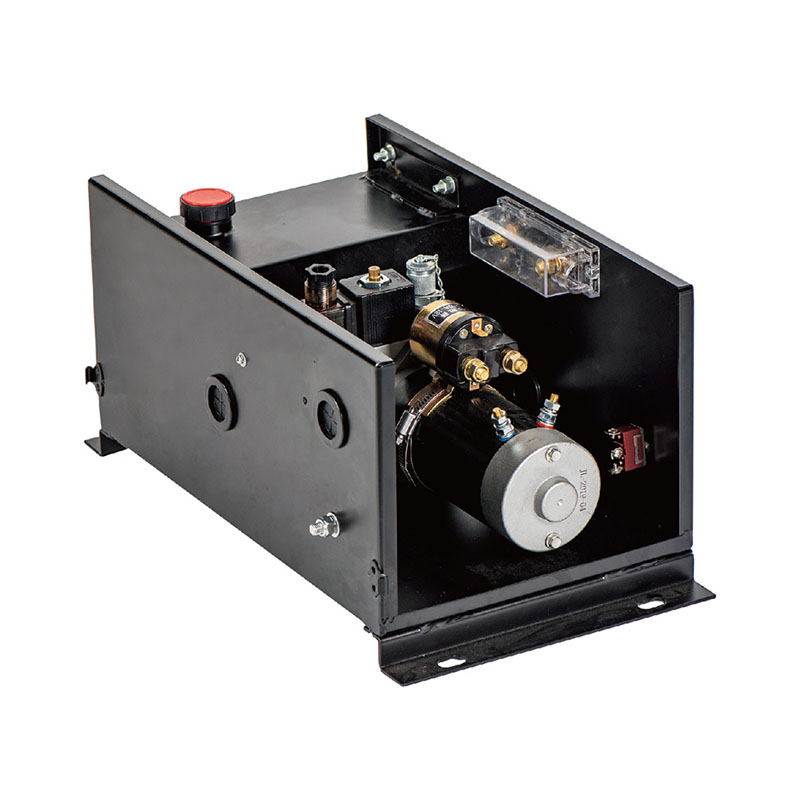

This power unit is specially designed for the vertical tailboard of freight van, with DC12V, DC24V, DC48V and other kinds of electric voltage levels. Electrically power rise, gravity fall, and fall speed is controlled by pressure compensating flow control valve.

Outline Dimension

Hydraulic circuit optional 115


Model Specifications

Type Motor Pump
Displacement (cc/r)
Tank
Capacity
(L)
Pressure (MPa) Mounting Oil Port
HPU1-115ACBEAHDEFG DC12V 1.2Kw 3200rpm 0.75 4 16 Horizontal M14x1.5
(Customize)
HPU1-115BCBEBHDEFG DC24V 1.2Kw 3200rpm


Special Notes

1. For different flow rate pump, pressure and motor power, please check the ordering guidance.
2. This motor is based on gap working system S2=2 ~ 4min(continuous working time), so it cannot run continuously.
3. Before installation, the cylinder, oil pipe, joint and other hydraulic components must be cleaned and free from any impurities.
4. The viscosity of hydraulic oil should be 15- -68cst and should be clean and free of impurities.HM46 hydraulic oil is recommended.
5. If you need manual oil discharge device for emergency,please specify when ordering.
6. Check that whether there is enough oil in the oil tank immediately after the first operating of the system.
7. The hydraulic oil should be replaced after the first 100 hours' use of the system, and change the oil every 3,000 hours after that.
