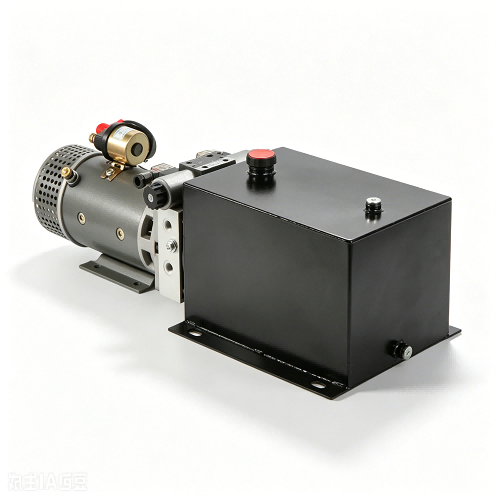

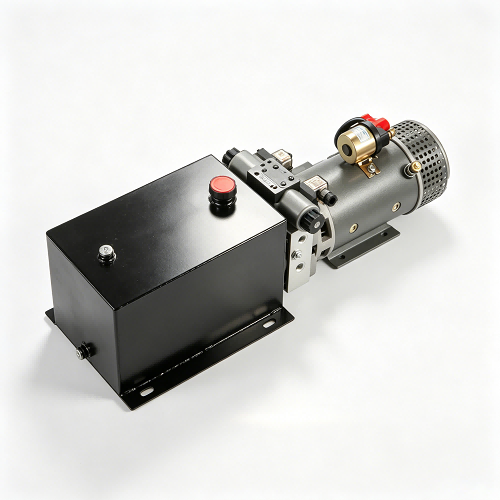

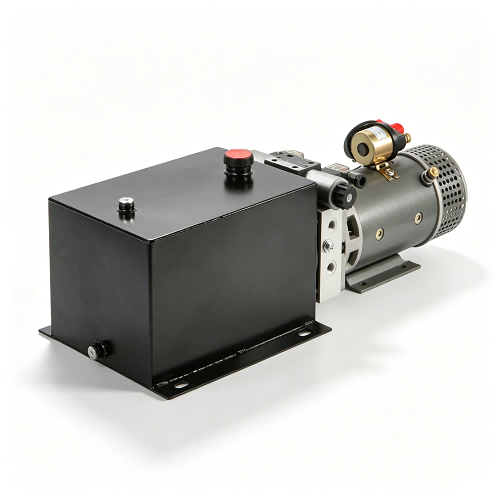

Truck leg hydraulic power unit

This hydraulic power unit is specially designed for truck outrigger systems, widely matched with dump trucks, trailers, wreckers and truck-mounted cranes. It integrates DC motor, gear pump, control valve and compact oil tank as one whole unit, compact size to fit narrow chassis mounting space, easy to install and wire.

Equipped with thick anti-rust oil tank, high-seal valve block and wear-resistant gear pump, it provides stable high-pressure hydraulic flow to drive single or double outriggers extend and retract synchronously. The outriggers can firmly support the whole truck during unloading or maintenance, preventing frame deformation. It supports 12V/24V DC vehicle power supply, with automatic pressure holding function to avoid sudden outrigger falling for safety.

Key Features

1.Compact integrated structure, lightweight for vehicle installation, standard oil ports for quick connection with outrigger cylinders;

2.Heavy-duty hydraulic gear pump with premium oil seal, leak-proof, stable performance under dusty, rainy construction conditions;

3.Built-in balance relief valve to lock pressure automatically, no sudden drop of outriggers when power off or pipeline leakage;

4.Customizable 12V/24V DC voltage, flow rate, working pressure and tank volume for different truck models;

5.Low-noise DC motor, low vibration, extend service life of the whole hydraulic system.

Application

Suitable for outrigger hydraulic systems of dump trucks, flatbed trailers, rescue wreckers, truck cranes and engineering vehicles. Also compatible with small on-board lifting platforms and tail lift equipment.

Custom Service

Single-acting & double-acting circuit options, synchronous control for dual outriggers are available. We accept non-standard customization on size, voltage and valve groups to match different load capacity requirements.
